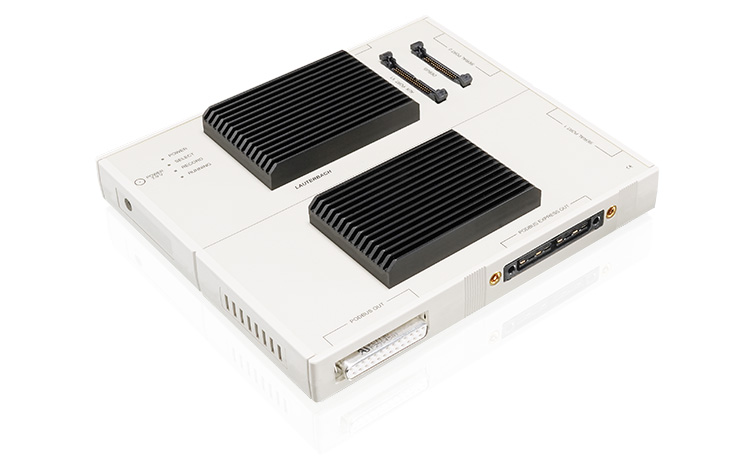

PowerTrace Serial 2
高性能串行跟踪扩展
我们的PowerTrace Serial 跟踪模块涵盖所有高速串行跟踪端口，从低通道数、低比特率到嵌入式行业现有的最高通道数和最快比特率。它们支持所有带有串行跟踪端口的芯片 ，不仅支持Aurora/HSSTP 协议，还支持通过 PCIe 进行跟踪。
借助大容量高速内存，您可以实时记录系统行为，而不会影响系统运行。这两个模块都使用现有 PowerDebug X50 的 PodBus Express 端口来扩展系统功能。
比较跟踪扩展
本产品 |
||
| 产品 | PowerTrace Serial 2 |
PowerTrace III |
| 内存大小 | 4 GB 或 8 GB | 4 GB 或 8 GB |
| 应用 | 高性能串行跟踪 | 高性能并行跟踪 |
| 最大带宽 | 80 Gbit/s | 19.2 Gbit/s |
| 流媒体性能4 （峰值/平均值） |
10 000 / 400 MByte/s | 2 400 / 400 MByte/s |
| 平行跟踪 | N/A |
最多 36行1 |
| 通过 Aurora/HSSTP 进行串行跟踪 | 每车道 12.5Gbit/s2@ 8 车道 每车道 22.5Gbit/s2@ 4 车道1 |
每车道 5.00 Gbit/s2@ 4 车道3 每车道 6.25 Gbit/s2@ 3 车道3 |
| 通过 PCIe 进行串行跟踪 | PCIe Gen 2 x8 PCIe Gen 3 x8 PCIe Gen 4x47 |
N/A |
| 可选logic analyzer 和能量曲线 | 途经Mixed-Signal Probe | 途经Mixed-Signal Probe |
| 所需的调试模块 | PowerDebugX506 | PowerDebugX506 |
| 查看更多 |
1需要预处理器。引脚数和记录速度取决于所使用的预处理器和跟踪协议
2 我们在此指定串行链路的速度。由于线路编码的原因，传输有效载荷的最大速度通常较小，例如 8b/10b 编码为 80%。
3需要串行预处理器。对于串行跟踪，我们建议使用PowerTrace Serial 。
4数据流传输速率定义了每秒可传输到 PC 的数据量。如果跟踪端口速率低于平均流速率，则记录时间实际上是无限的。峰值速率是暂时的，由 PowerTrace 扩展程序的内部存储器补偿。
5 CombiProbe 2 可与 PowerDebug E50、X50、E40、PRO、USB 3 和 II 配合使用。不支持 PowerDebug 以太网、USB 或 USB 2。
6 个PowerTrace 扩展可与 PowerDebug X50、PRO、II 一起使用。
7PCIeGen.4（16 Gbit/s）需要预处理器（2023 年第二季度推出）。
选择 PowerTrace 软件包

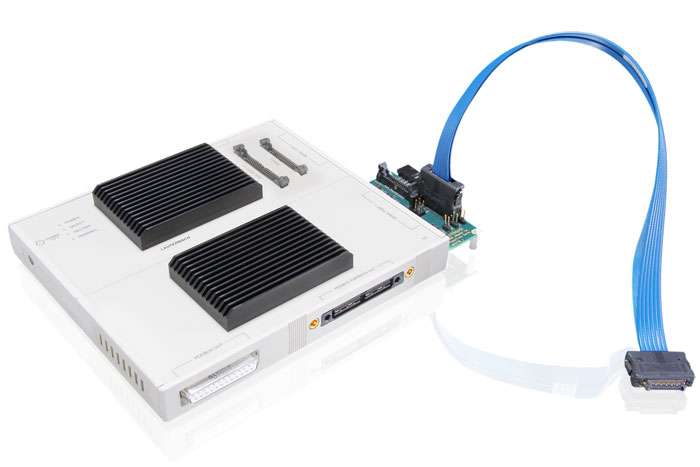

Trace recorder for serial high-speed ports with 4 Gigabyte trace memory for ARC Real-Time Trace (ARC RTT) via CoreSight. Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Optional Mixed-Signal Probe with LA-2500. Requires accessory kit LA-3521 or LA-3522. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 8 Gigabyte trace memory for ARC Real-Time Trace (ARC RTT) via CoreSight. Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Optional Mixed-Signal Probe with LA-2500. Requires accessory kit LA-3521 or LA-3522. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 4 Gigabyte trace memory for Arm-ETM via HSSTP. Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Requires accessory kit LA-3521 or LA-3522. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 8 Gigabyte trace memory for Arm-ETM via HSSTP. Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Requires accessory kit LA-3521 or LA-3522. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 4 Gigabyte trace memory for C6000 Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Optional Mixed-Signal Probe with LA-2500. Requires accessory kit LA-3521 or LA-3522. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 8 Gigabyte trace memory for C6000 Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Optional Mixed-Signal Probe with LA-2500. Requires accessory kit LA-3521 or LA-3522. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 4 Gigabyte trace memory for CEVA-X ETM Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Optional Mixed-Signal Probe with LA-2500. Requires accessory kit LA-3521 or LA-3522. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 8 Gigabyte trace memory for CEVA-X ETM Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Optional Mixed-Signal Probe with LA-2500. Requires accessory kit LA-3521 or LA-3522. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 4 Gigabyte trace memory for MPC57xx/SPC5xx Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Includes converter for Samtec40 target connector. For Samtec34 target connector add LA-3871: Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec34 including Samtec 34-pin flex extension cable For Samtec22 target connector add LA-3872: Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec22 including Samtec 22-pin flex extension cable Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 8 Gigabyte trace memory for MPC57xx/SPC5xx Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. For Samtec34 target connector add LA-3871: Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec34 including Samtec 34-pin flex extension cable For Samtec22 target connector add LA-3872: Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec22 including Samtec 22-pin flex extension cable Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 4 Gigabyte trace memory for QorIQ PowerPC Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Includes flex exstension for Samtec40 target connector. For Samtec70 target connector add LA-3830. For Samtec46 target connector add LA-3831. For Samtec22 target connector add LA-3832. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 8 Gigabyte trace memory for QorIQ PowerPC Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Includes flex exstension for Samtec40 target connector. For Samtec70 target connector add LA-3830. For Samtec46 target connector add LA-3831. For Samtec22 target connector add LA-3832. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 4 Gigabyte trace memory for RH850 Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Includes converter and flex-extension for Samtec34 target connector. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 8 Gigabyte trace memory for RH850 Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Includes converter and flex-extension for Samtec34 target connector. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 4 Gigabyte trace memory for RISC-V Tested for SiFive Nexus IP. Tested for Tessent Embedded Analytics (aka. UltraSoC) encoder IP Other IP on request. Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Requires accessory kit LA-3521 or LA-3522. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 8 Gigabyte trace memory for RISC-V Tested for SiFive Nexus IP. Tested for Tessent Embedded Analytics (aka. UltraSoC) encoder IP Other IP on request. Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Requires accessory kit LA-3521 or LA-3522. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 4 Gigabyte trace memory for TriCore AGBT/SGBT. Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. REQUIRES ACCESSORY KIT: LA-3556 for ERF8-22/HSTCE connector or LA-3596 for USB-C/HSTCU connector or LA-3590 for OCuLink connector. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 8 Gigabyte trace memory for TriCore AGBT/SGBT. Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. REQUIRES ACCESSORY KIT: LA-3556 for ERF8-22/HSTCE connector or LA-3596 for USB-C/HSTCU connector or LA-3590 for OCuLink connector. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 4 Gigabyte trace memory for CoreSight Real-Time Trace for Xtensa Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Optional Mixed-Signal Probe with LA-2500. Requires accessory kit LA-3521 or LA-3522. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
Trace recorder for serial high-speed ports with 8 Gigabyte trace memory for CoreSight Real-Time Trace for Xtensa Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.) Voltage range: 0.15 to 1.25 differential voltage. Optional Mixed-Signal Probe with LA-2500. Requires accessory kit LA-3521 or LA-3522. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS.
连接各种跟踪端口
为了将目标的跟踪端口连接到PowerTrace Serial ，我们提供了各种附件，因为跟踪端口有各种形状和尺寸。根据您的使用情况，您可能只需要一个合适的柔性延长件，或者需要一个适配器。对于最高速度等级，我们提供预处理器，它与跟踪端口紧密相连，以获得最佳的信号完整性。

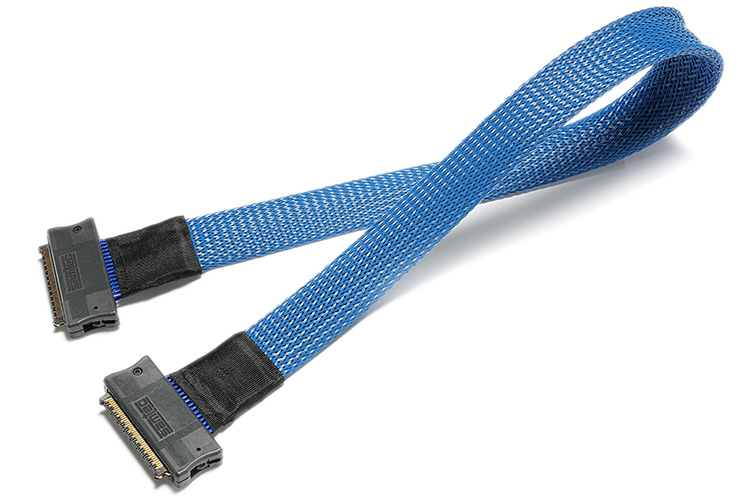

柔性电缆

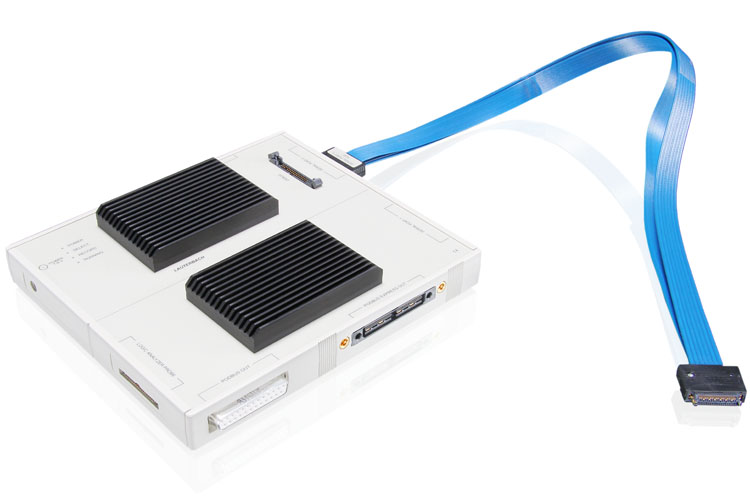

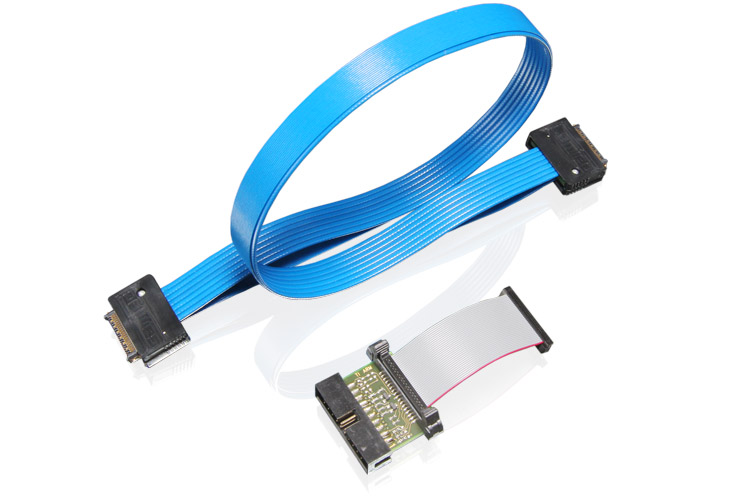

Flex cable and converter to trace Arm chips, which emit an ETM trace via up to 8 HSSTP lanes. For chips with 6 or less HSSTP lanes we recommend to use LA-3521 instead.
适配器
适配器，用于PowerTrace Serial ，支持多达 4 通道的 Tricore AGBT 跟踪端口 最多 4 个通道。

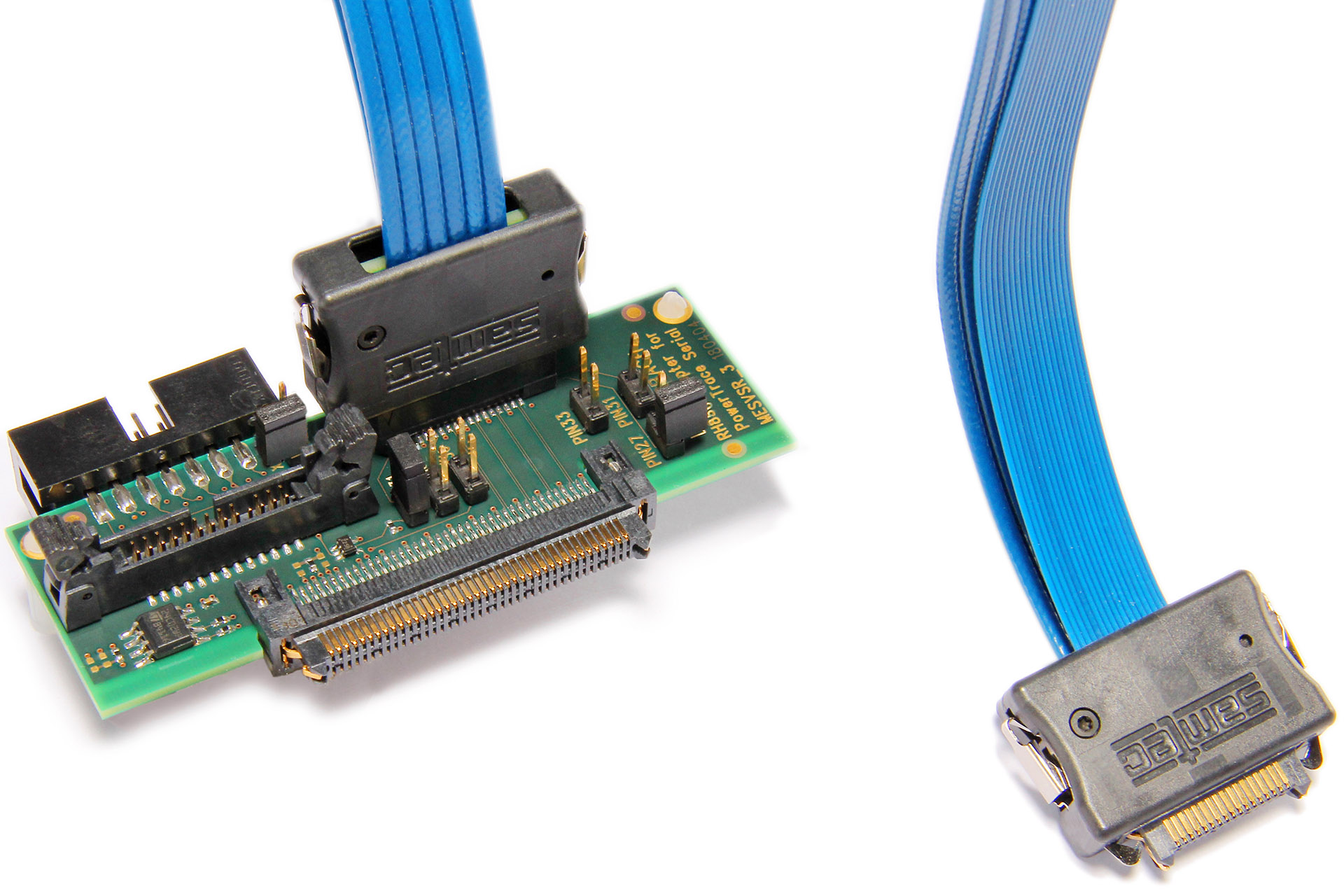

适配器，用于PowerTrace Serial ，通过 34 针目标连接器支持多达 4 个通道的 RH850 跟踪端口。 通过 34 针目标连接器支持多达 4 个通道的 RH850 跟踪端口。 需要PowerTrace Serial （LA-3303、LA-3323 或 LA-3560）。

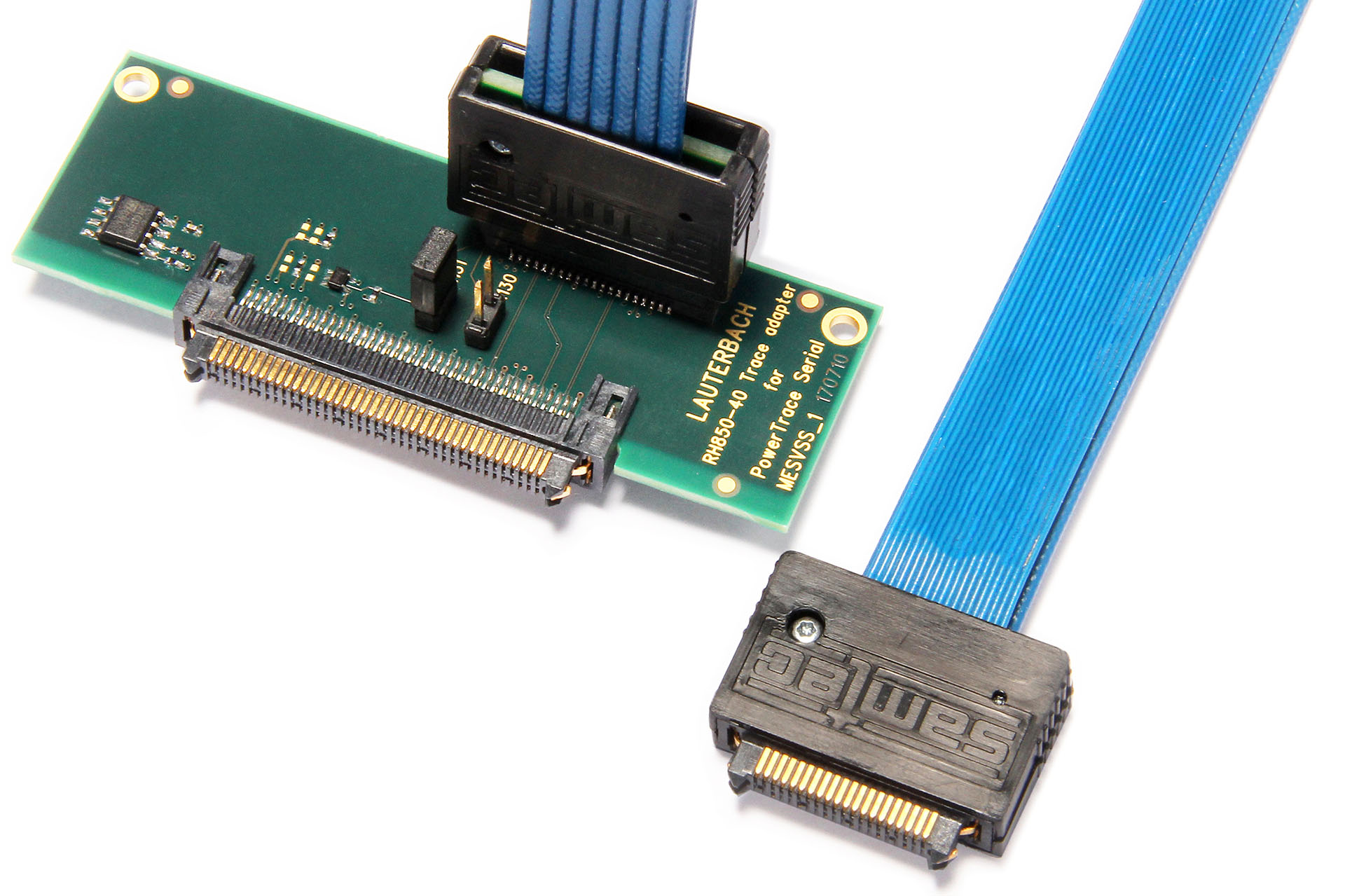

适配器，用于PowerTrace Serial ，通过 40 针目标连接器支持多达 4 个通道的 RH850 跟踪端口。 通过 40 针目标连接器支持多达 4 个通道的 RH850 跟踪端口。 需要PowerTrace Serial （LA-3303、LA-3323 或 LA-3560）。

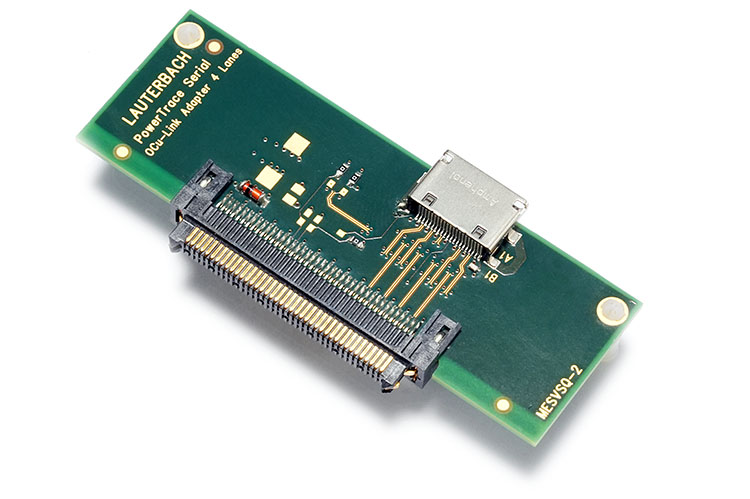

用于PowerTrace Serial SERIAL PORT 1（80 针）的适配器 到 OCuLink 连接器，用于最多 4 通道的跟踪端口、 支持 PCIe-Gen3 x4 和 HSSTP/Aurora。 包括 OCuLink 电缆（500 毫米）。

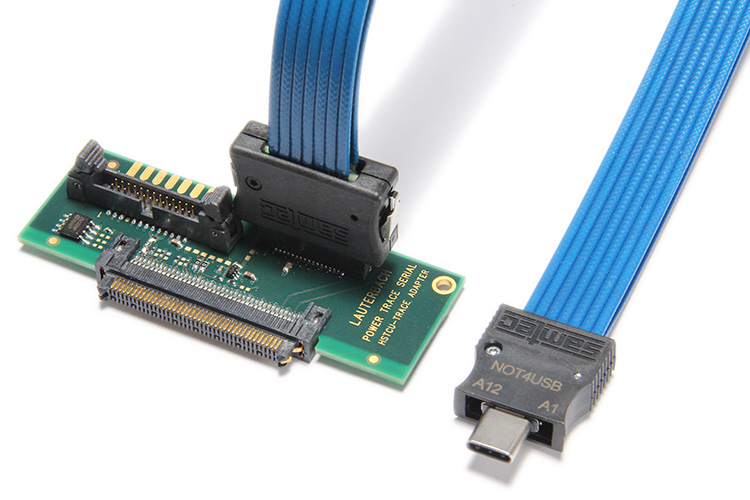

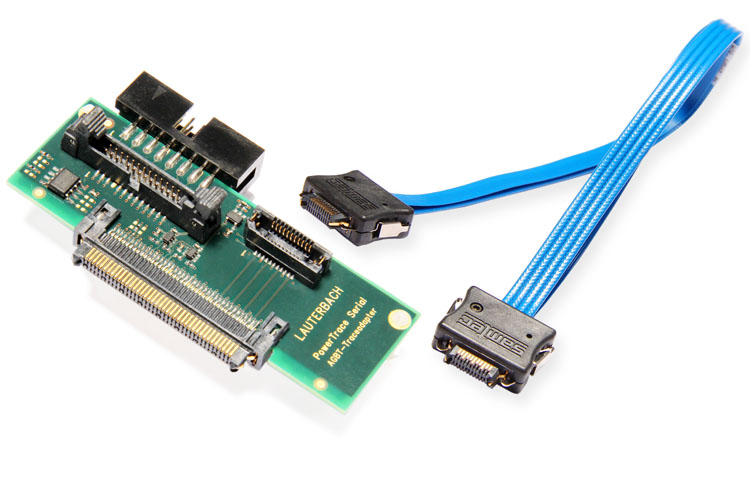

Adapter for PowerTrace Serial SERIAL PORT 1 (80-pin) to support Tricore AURIX AGBT trace via HSTCU

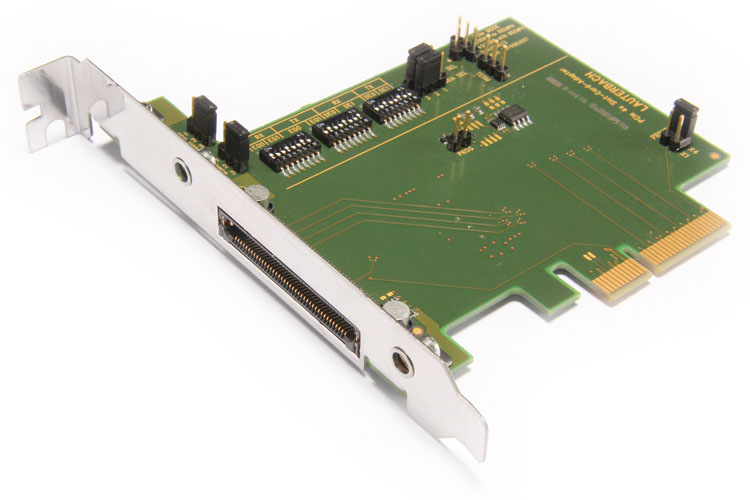

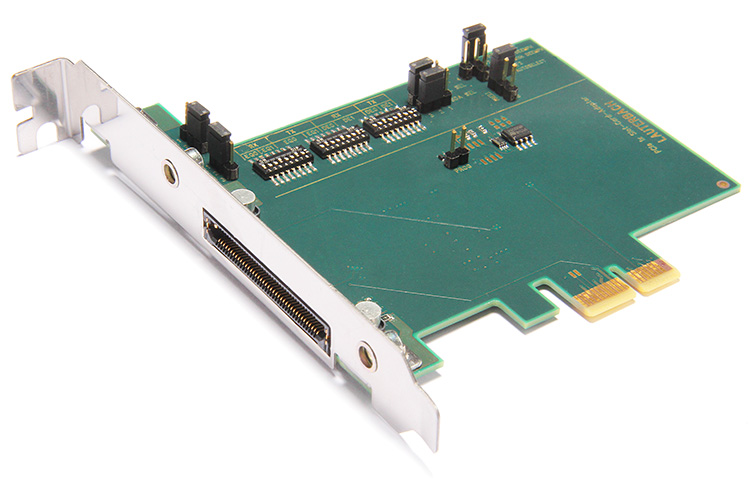

有源插槽卡适配器，最多支持 4 通道 PCIe。 将标准 PCIe 插槽卡格式转换为 80 针 ERF8 用于PowerTrace Serial 。 引脚布局符合 PCI-Express x4 连接器引脚布局。 需要以下物品： * 用于 SAMTEC 80 引脚 ERM8-ERM8 500mm A 的 LA-1239 Flex Ext. * LA-3550X PCI Express 许可 *PowerTrace Serial 带合适的跟踪记录器许可证 * PowerDebug X50、PRO 或 II * 带有适当调试器许可证的Debug Cable

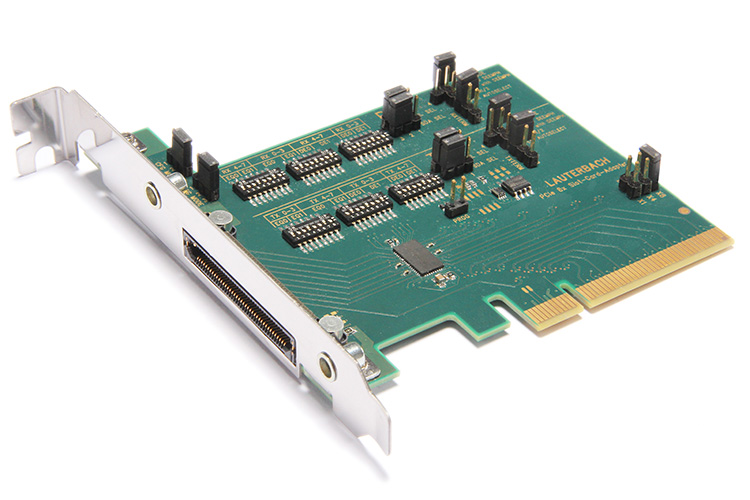

有源插槽卡适配器，最多支持 8 通道 PCIe。 将标准 PCIe 插槽卡格式转换为 80 针 ERF8 用于PowerTrace Serial 。 引脚布局符合 PCI-Express x8 连接器引脚布局。 需要以下物品： * 用于 SAMTEC 80 引脚 ERM8-ERM8 500mm A 的 LA-1239 Flex Ext. * LA-3550X PCI Express 许可 *PowerTrace Serial 带合适的跟踪记录器许可证 * PowerDebug X50、PRO 或 II * 带有适当调试器许可证的Debug Cable
有源插槽卡适配器，用于单通道 PCIe。 将标准 PCIe 插槽卡格式转换为 80 针 ERF8 用于PowerTrace Serial 。 引脚布局符合 PCI-Express x1 连接器引脚布局。 需要以下物品： * 用于 SAMTEC 80 引脚 ERM8-ERM8 500mm A 的 LA-1239 Flex Ext. * LA-3550X PCI Express 许可 *PowerTrace Serial 带合适的跟踪记录器许可证 * PowerDebug X50、PRO 或 II * 带有适当调试器许可证的Debug Cable

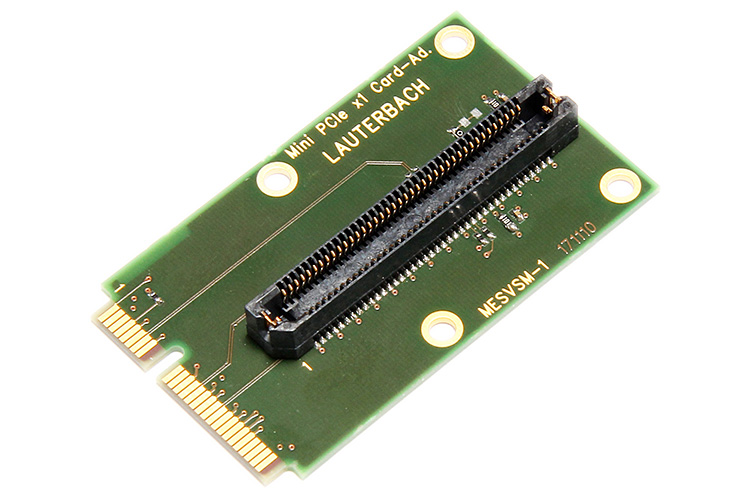

无源插槽卡适配器或单通道 PCIe。 将标准 Mini-PCIe 插槽卡格式转换为 80 针 ERF8 用于PowerTrace Serial 。 符合 PCI Express® 迷你卡机电规范。 需要以下物品： * 用于 SAMTEC 80 引脚 ERM8-ERM8 500mm A 的 LA-1239 Flex Ext. * LA-3550X PCI Express 许可 *PowerTrace Serial 带合适的跟踪记录器许可证 * PowerDebug X50、PRO 或 II * 带有适当调试器许可证的Debug Cable
预处理器

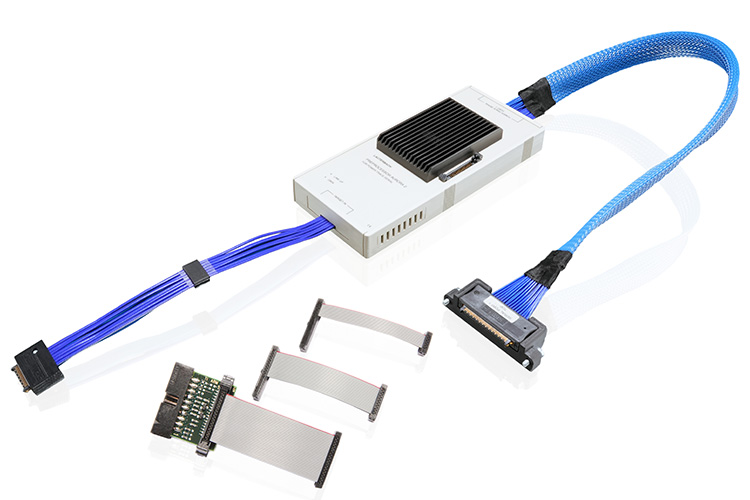

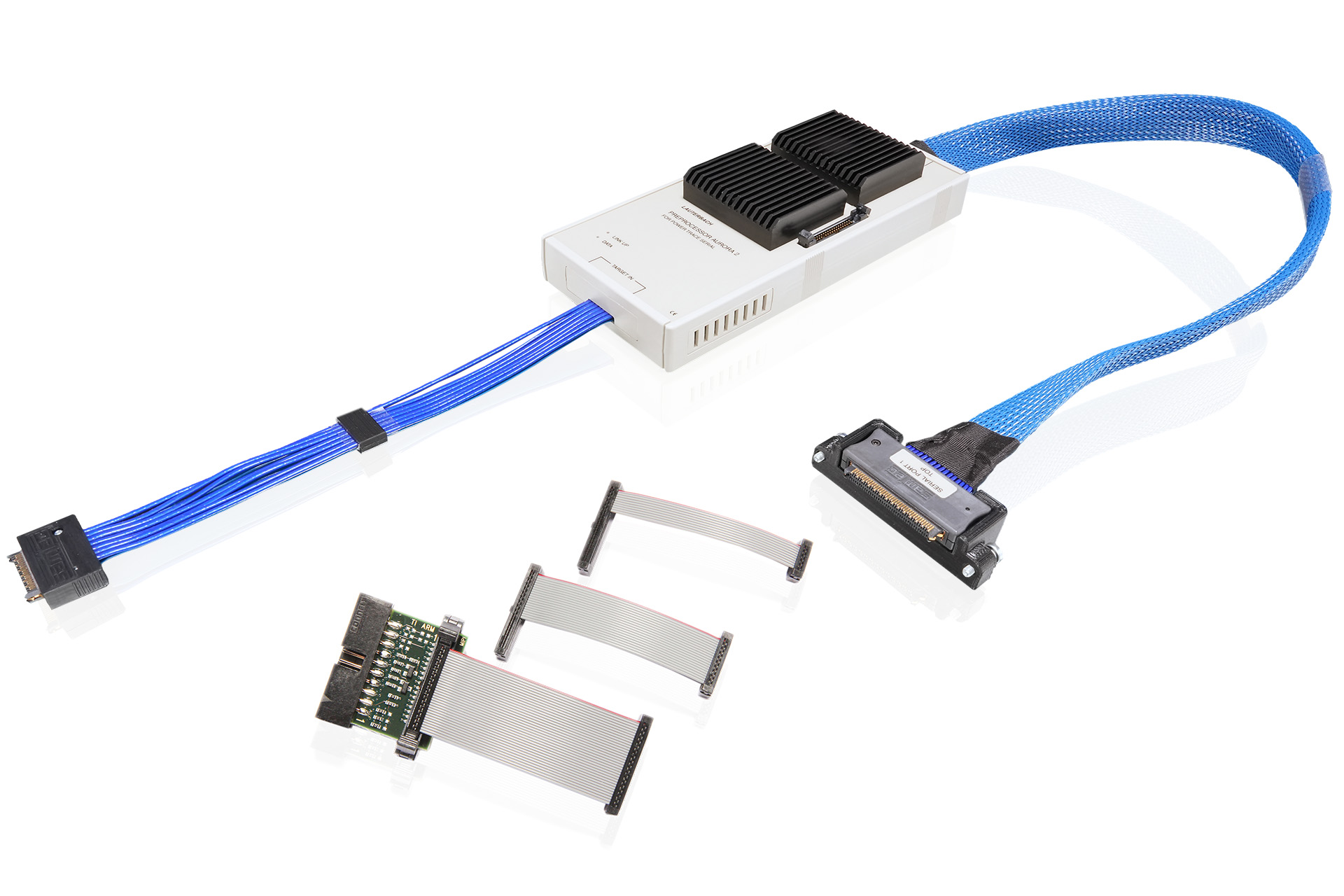

前置处理器，用于提高PowerTrace Serial 的记录速度，适用于 Aurora/HSSTP 协议的串行线路。 最多支持 4 条通道，每条通道的速度最高可达 22.5Gbit/s。 需要PowerTrace Serial (1 或 2) 和 TRACE32 软件 DVD 2022/09 或更新版本。

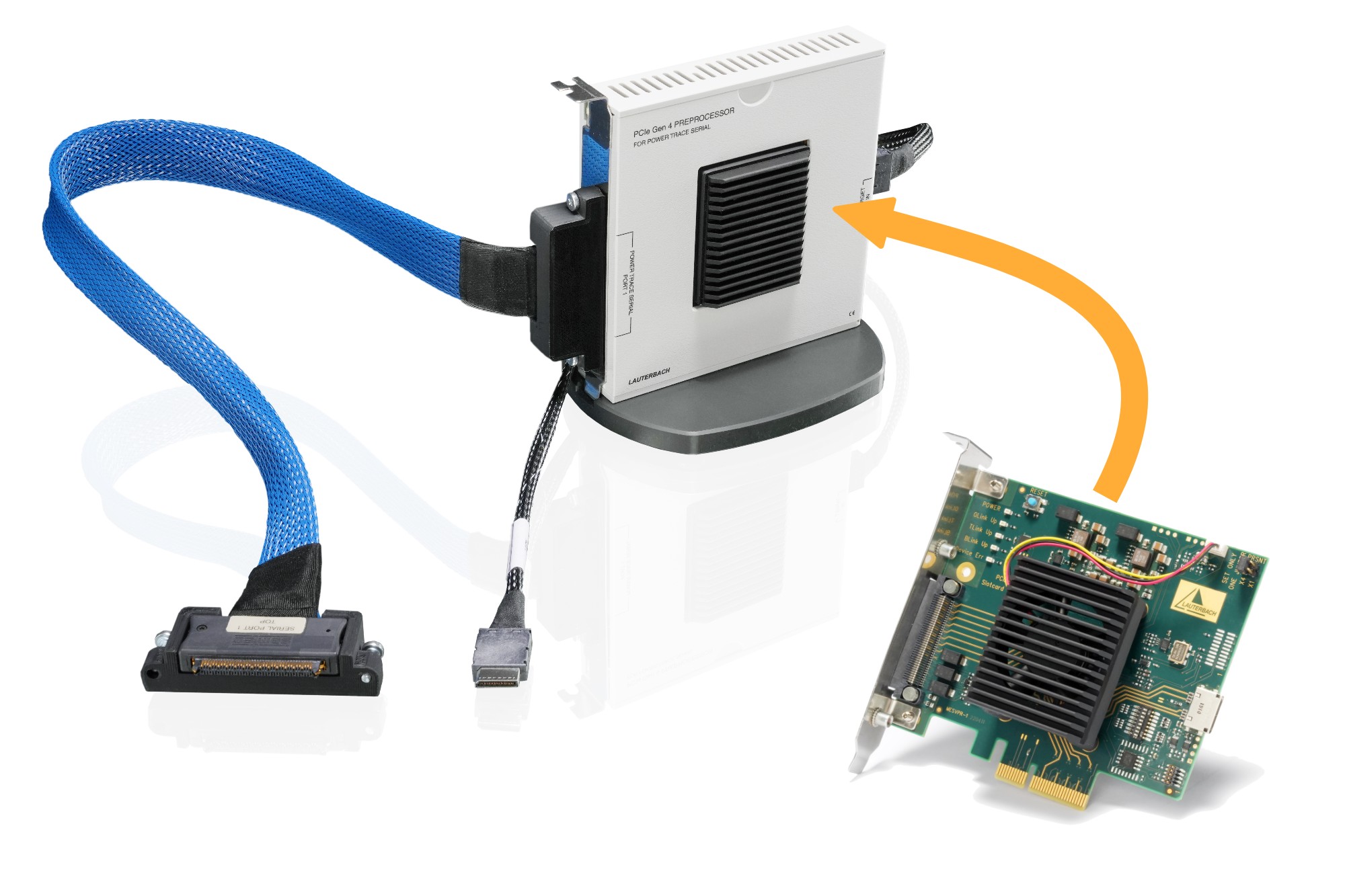

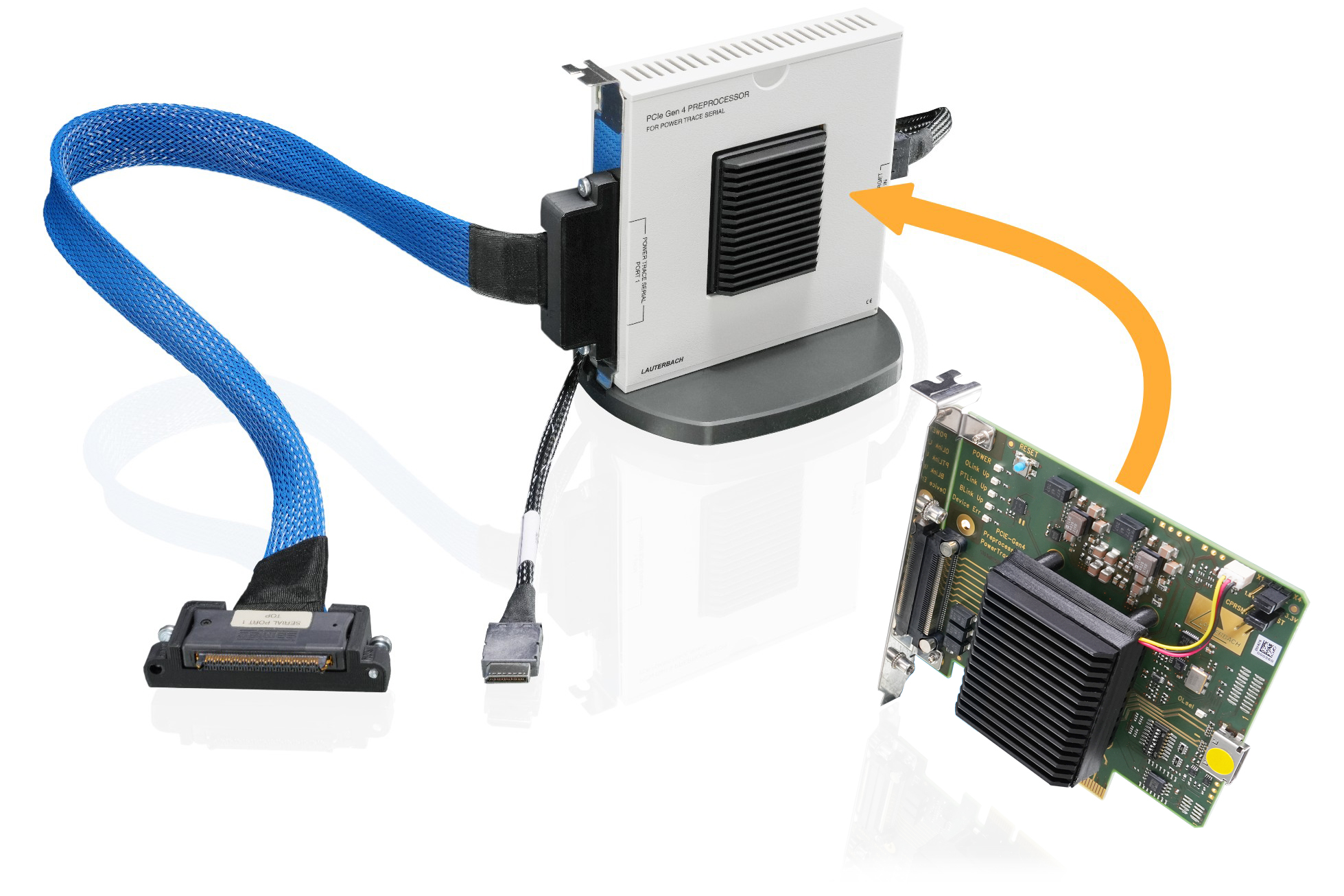

Preprocessor for PowerTrace Serial (1 or 2) to record trace from up to four lanes of PCIe Gen 4. (Without this preprocessor PowerTrace Serial supports only PCI Gen 2 and Gen 3.) Requires the licenses LA-3550X (License for PCI Express) programmed to your PowerTrace Serial in addition to a suitable trace decoder license. You can choose between two kinds of target connection: Connection 1: OCuLink SFF-8612 connector (via included OCuLink cable). Preprocessor is used inside the included housing. Connection 2: PCI-Express x4 Connector. Preprocessor is used as a slotcard wihout the housing. Voltage levels of sideband signals must have 3.3V. Support for other voltage levels on request.
配置示例PowerTrace Serial
通过Arm CoreSight™ 进行异构多核跟踪
这种配置通常用于包含Arm Cortex 内核并拥有 CoreSight™ HSSTP 跟踪端口的 SoC。它允许同时跟踪各种Arm 内核以及各种其他 CoreSight™ 兼容 CPU 和 DSP 内核。
- PowerDebug X50
- Debug Probe IDC20A
- PowerTrace Serial
- HSSTP 柔性扩展（40 引脚）
通过 PCIe 进行 PowerPC QorIQ 跟踪
Numerous SoCs of various manufacturers and architectures can be traced via PCIe, including the QorIQ family from NXP shown in this example. While tracing via PCIe requires usually a more complex initialization on your SoC (compared to tracing via Aurora/HSSTP), it allows to reduce costs, by omitting a dedicated trace port, and allows tracing with your production device, where all dedicated trace ports might have been removed to save space.

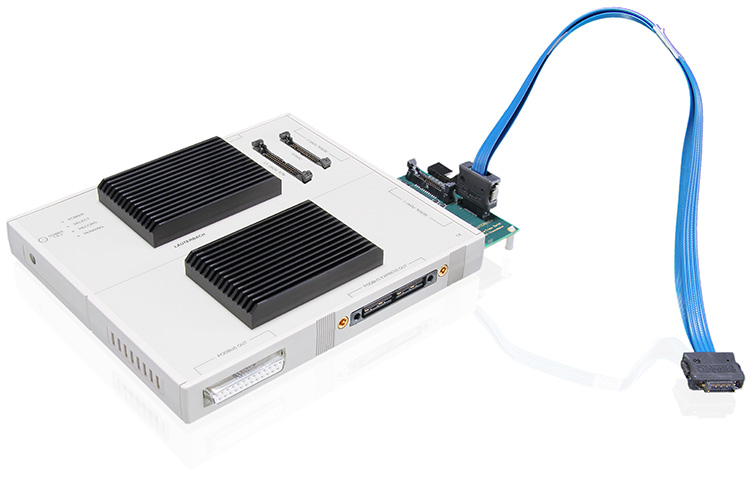

通过 AGBT 的三核跟踪
用于 TriCore AURIX芯片 的 Aurora 千兆位跟踪 (AGBT) 需要跟踪工具提供额外的时钟基准。因此，该配置使用专用适配器来匹配 AGBT 规范。
- PowerDebug X50
- Debug Probe 自动 26
- PowerTrace Serial
- 带柔性电缆的 AGBT 跟踪适配器
通过 Extreme FastArm HSSTP 端口进行跟踪
对于大多数Arm SoC，PowerTrace Serial 默认支持的每个串行跟踪端口速度不超过 12.5 Gbit/s。但是，如果您拥有速度更快的出色 SoC，这种配置可以让您打破速度限制，每条线路的速度最高可达 22.5 Gbit/s。
- PowerDebug X50
- Debug Probe IDC20A
- PowerTrace Serial
- 预处理器极光 2
