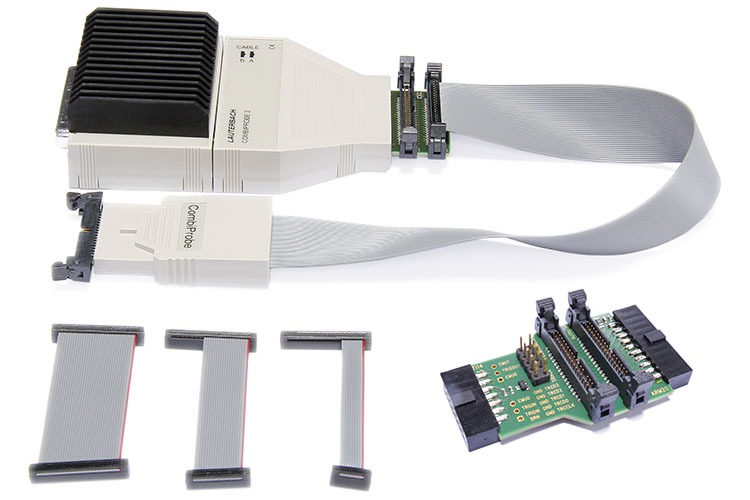

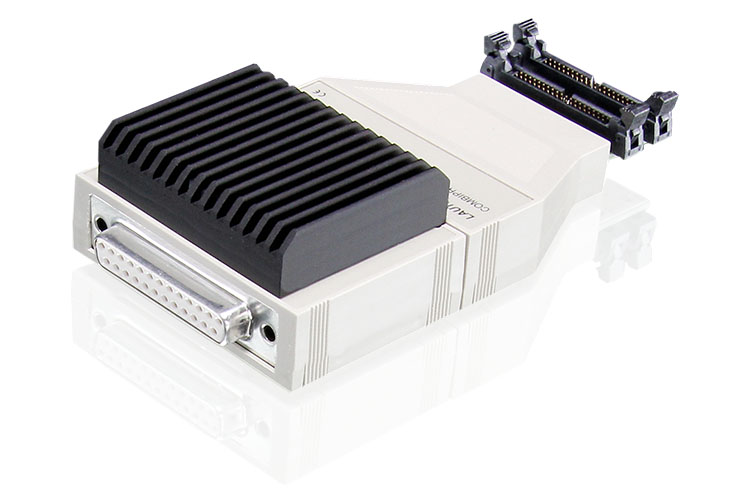

CombiProbe 2 for MIPI34 (PACK)
CombiProbe 2 for MIPI34 (PACK)

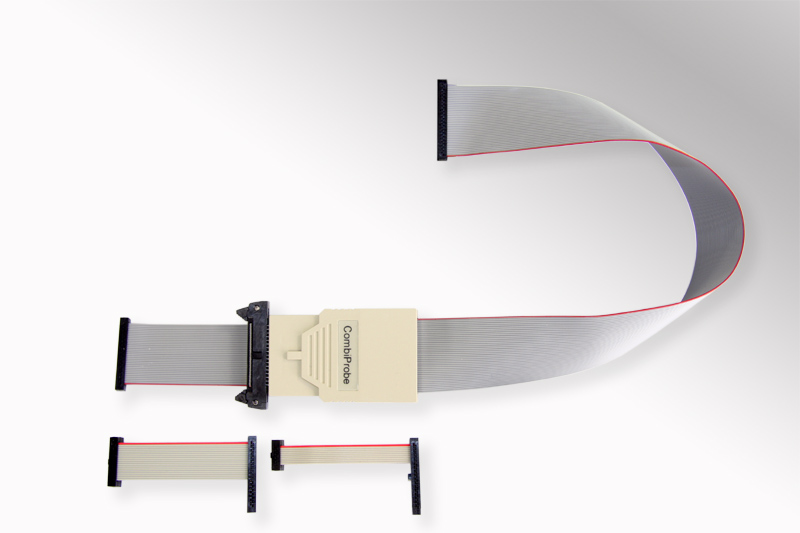

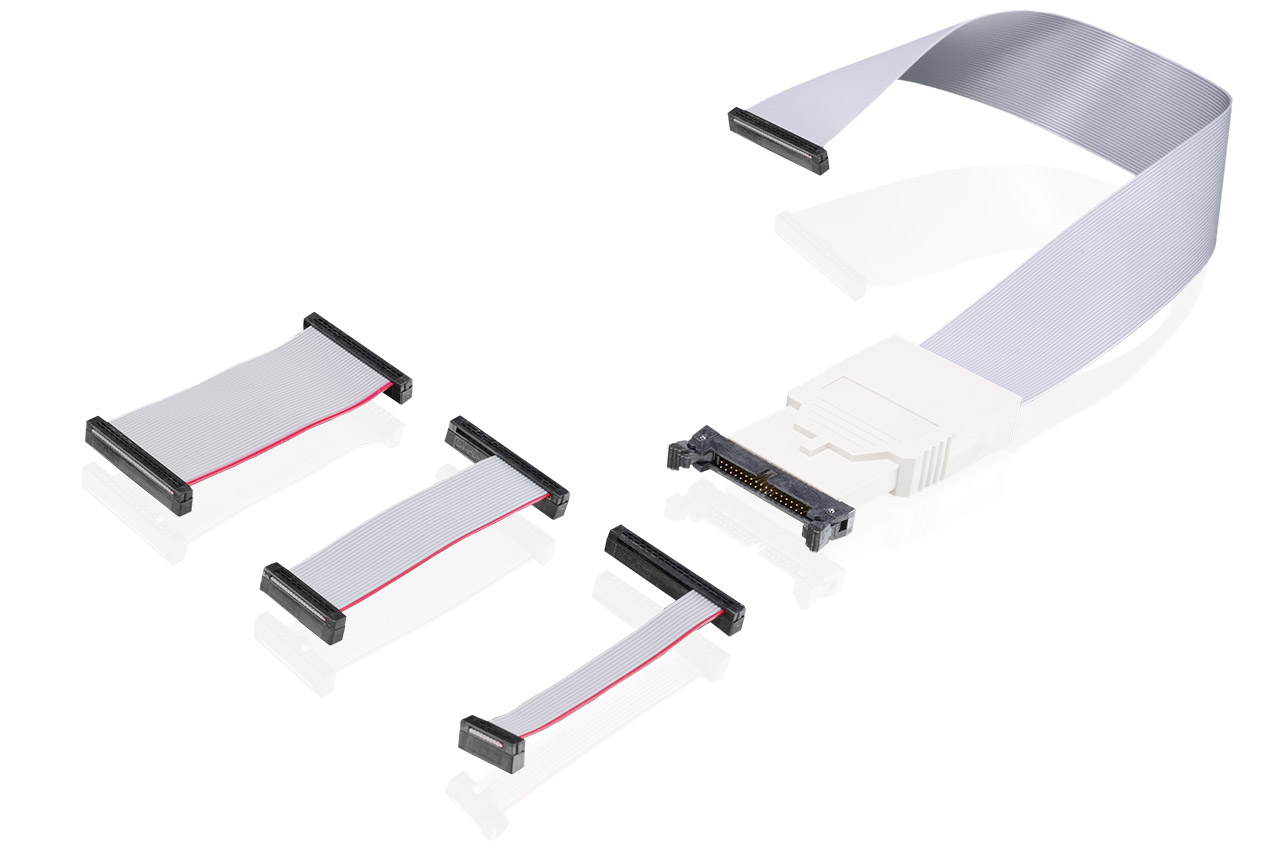

CombiProbe 2 with MIPI34 whisker for debugging and tracing.
Voltage Range: 1.2V...3.3V (5V tolerant inputs).

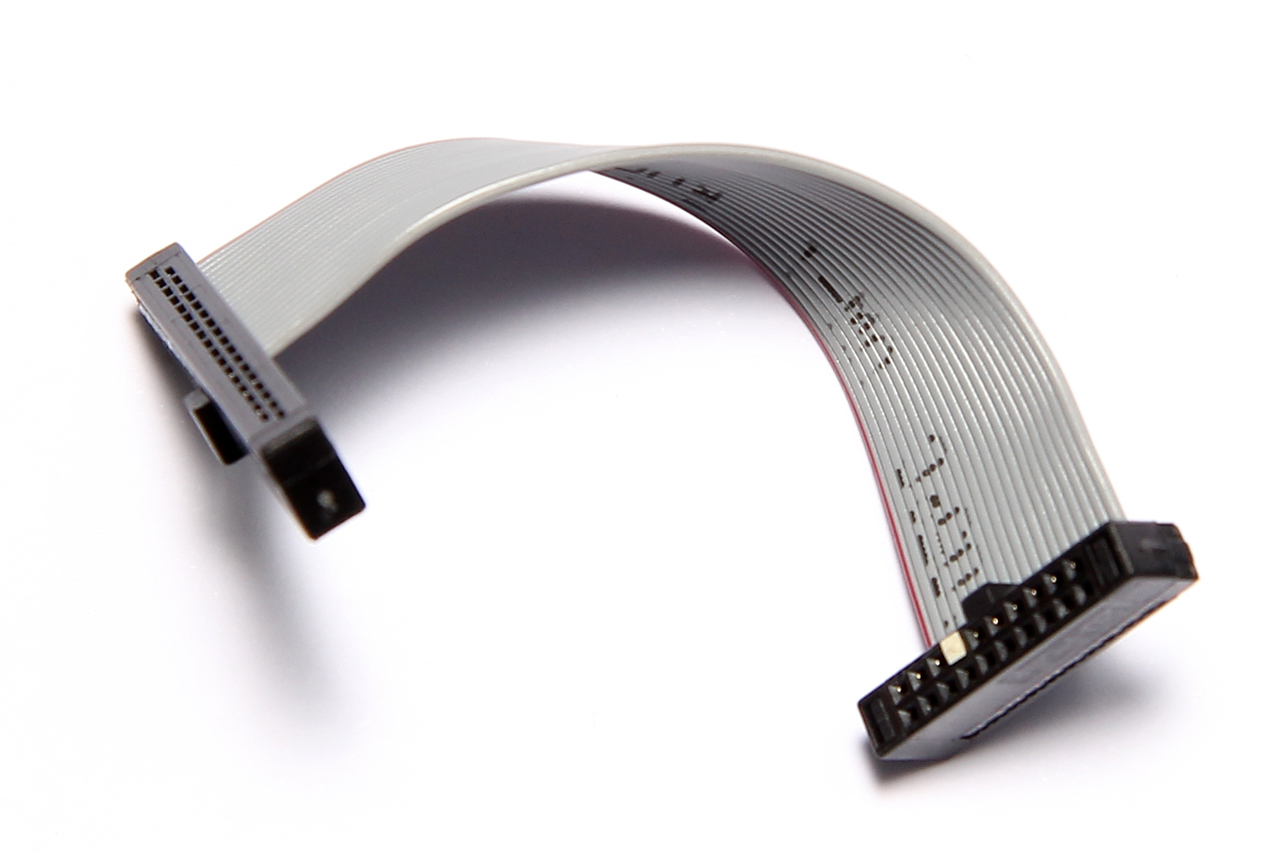

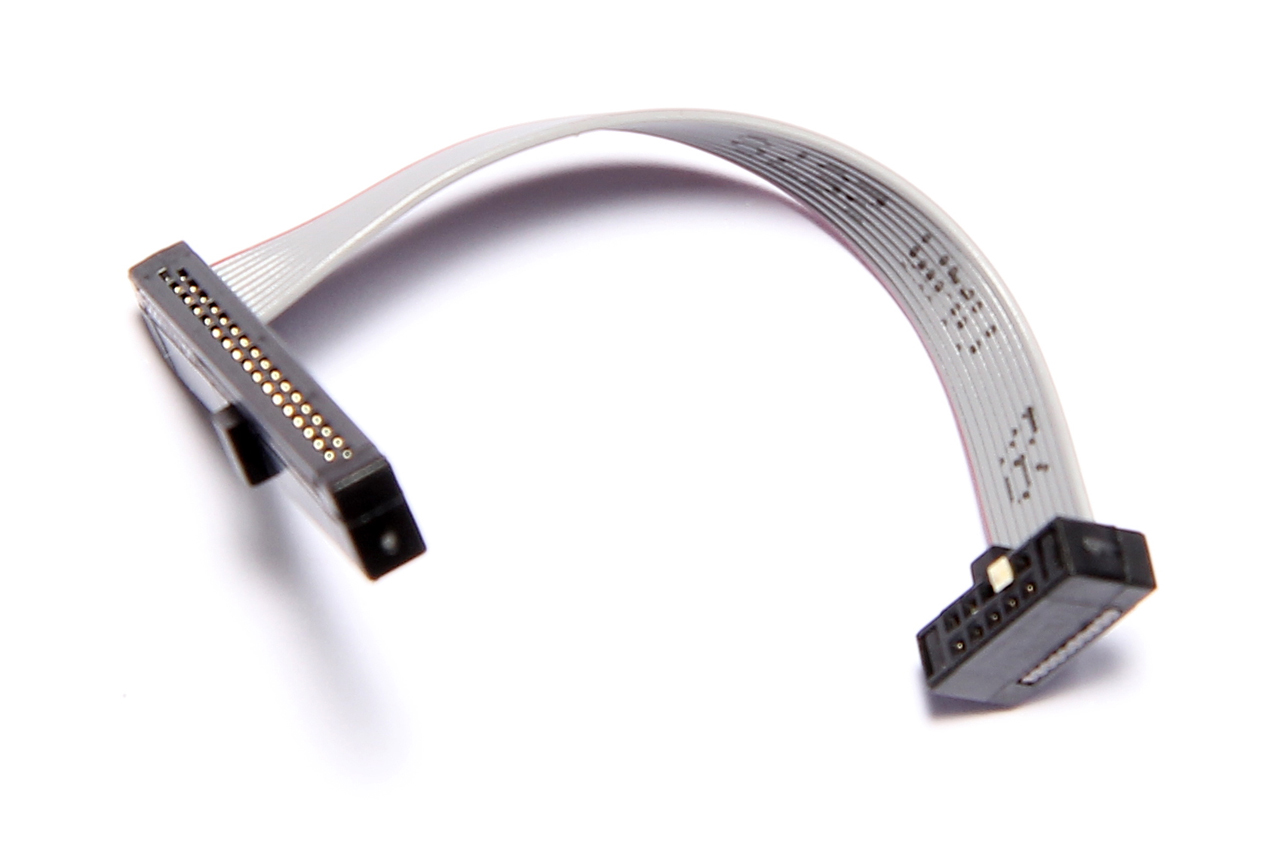

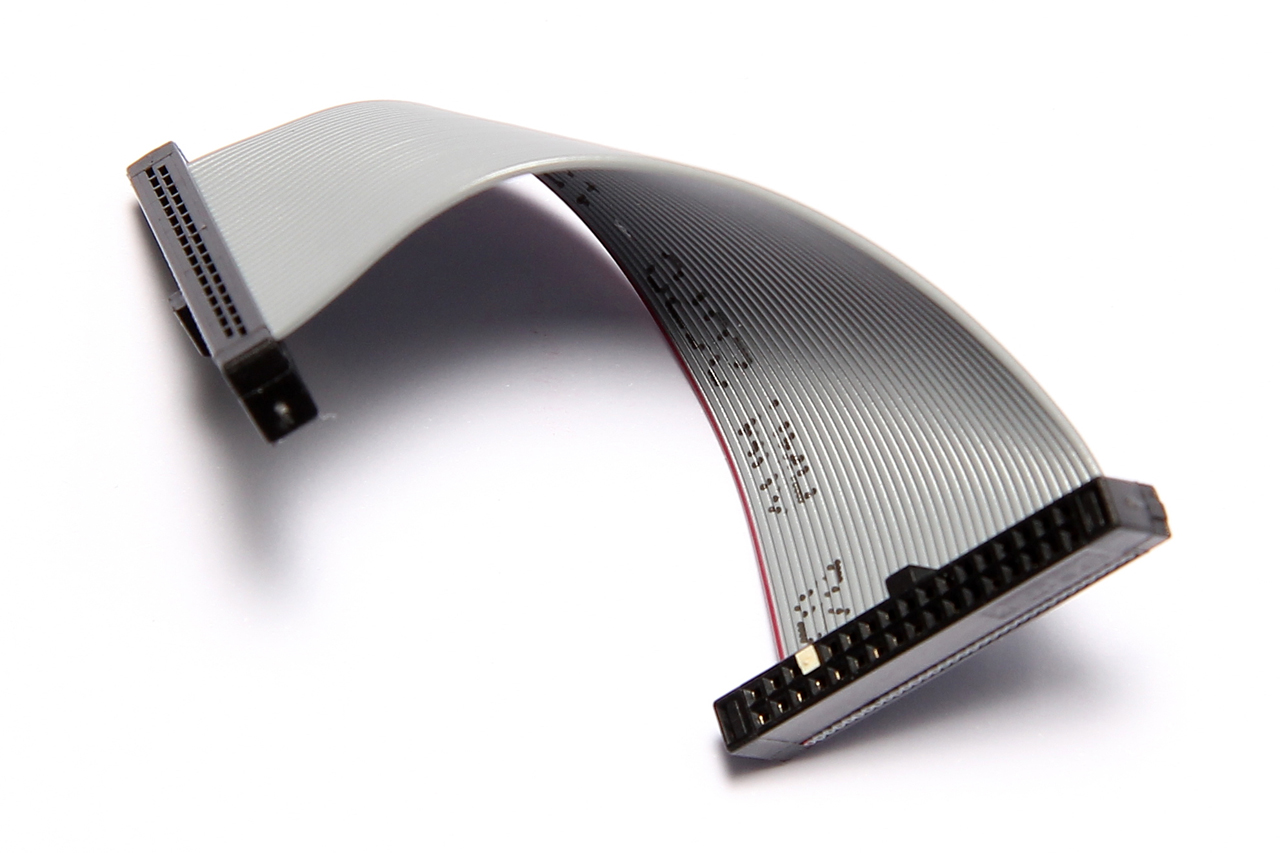

Target Connector: MIPI34, MIPI20T, MIPI10
Trace memory: 512 MByte.
Maximum trace port width: 4 pins.
Maximum trace bandwidth: 200 MBit/s per trace pin.
Includes the TRACE32 software for Windows, Linux and macOS
on DVD and for download.
Requires at least one of the following A-licenses:
LA-3743A Debug. for Cortex-A/R (Armv8 and Armv9) Add.
LA-7844A Debug Cortex-M (Armv6/7/8 32-bit) Add.
LA-7843A Debug Cortex-A/-R (Armv7 32-bit) Add.
LA-7765A JTAG Debugger License for Arm11 Add.
LA-7742A JTAG Debugger License for Arm9 Add.
LA-7746A JTAG Debugger License for Arm7 Add.
Requires trace license LA-7970X for on-chip ETM traces of Cortex-A/R.
Requires Power Debug Interface USB 3.0, PowerDebug II,
PowerDebug PRO, PowerDebug X-Series, PowerDebug E-Series.
Extend your CombiProbe with a Mixed-Signal Probe (LA-2500),
to record and correlate digital and analog signals.
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the CombiProbe 2 for MIPI34 (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2768A Synopsys ASIP Debug License (tool locked)
- LA-2750A CoolFlux Debug License (tool locked)
- LA-2798A SPARC-V8 Debug License (tool locked)
- LA-3743A Armv8/v9-A/R Debug License (tool locked)
- LA-3776A Intel x86/x64 Debug License (tool locked)
- LA-7837A Nios® II Debug License (tool locked)
- LA-7760A MIPS32 Debug License (tool locked)
- LA-3750A ARC® 32-bit Debug License (tool locked)
- LA-2760A dsPIC Debug License (tool locked)
- LA-2751A JTAG Debugger for STRED Add.
- LA-3730A MicroBlaze Debug License (tool locked)
- LA-3712A ZSP500 Debug License (tool locked)
- LA-7746A ARM7 Debug License (tool locked)
- LA-7838A C6000 Debug License (tool locked)
- LA-3760A Xtensa® Debug License (tool locked)
- LA-3711A Ceva®-X™ Debug License (tool locked)
- LA-7844A Cortex-M Debug License (tool locked)
- LA-7742A ARM9 Debug License (tool locked)
- LA-7847A C2000 Debug License (tool locked)
- LA-7843A Armv7-A/R Debug License (tool locked)
- LA-2540A RISC-V 32-bit Debug License (tool locked)
- LA-2756A PRU Debug License (tool locked)
- LA-7774A TeakLite JAM Debug License (tool locked)
- LA-2759A C7000 Debug License (tool locked)
- LA-7756A TriCore Debug License (tool locked)
- LA-2541A RISC-V 64-bit Debug License (tool locked)
- LA-7765A ARM11 Debug License (tool locked)
- LA-3741A Hexagon Debug License (tool locked)

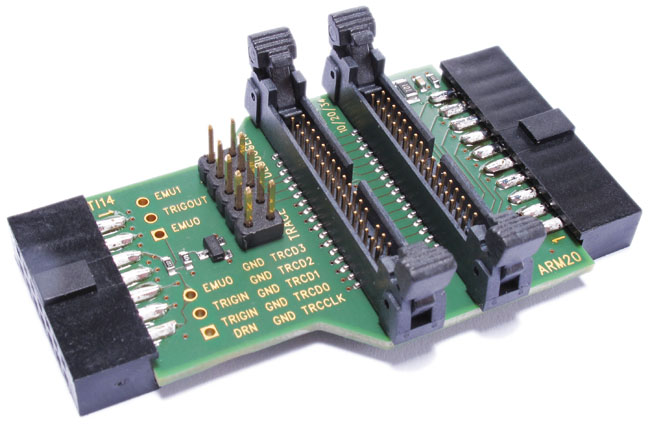

Available Converters
- LA-3862 Converter IDC20A/MIPI-34 to Mictor-38
- LA-3814 ETMv3 Conv. Mictor-38/MIPI-34 to MIPI-60
- LA-3880 Conv. ICD20A, MIPI-34, MIPI-60 to 2xMictor-38
- LA-3812 Conv. OMAP4 2xMic38/IDC20A/MIPI34 to MIPI60
- LA-3782 Converter MIPI-34 to TI-20-Compact
- LA-3808 Conv. L8540 2xMic38/2xMIPI34/IDC20A to MIPI60
- LA-3783 Converter MIPI-34 to C166-16
- LA-3784 Converter MIPI-34 to MIPI-60
- LA-3768 ETMv1 Conv. Mictor-38, 2x MIPI-34 to MIPI-60
- LA-3781 Converter MIPI-34 to JTAG MIPS14 + IFLOW
- LA-3769 Conv. Mictor-38, 2x MIPI-34 to MIPI-60
