Converter IDC20A/MIPI-34 to Mictor-38
OVERVIEW

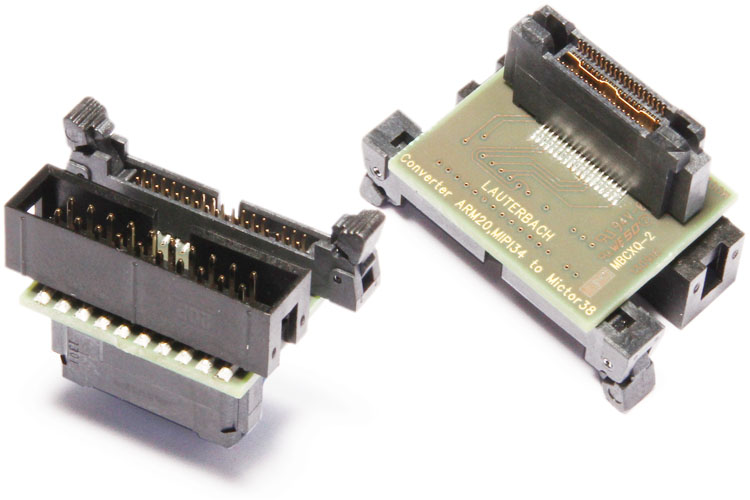

Converter IDC20A/MIPI-34 to Mictor-38
Product number:
LA-3862
Converter to connect an IDC20A debug cable or a
CombiProbe to a MICTOR38 connector on the target.
This is useful, if you want to debug without a Preprocessor
and there is only a Mictor connector on the target.
The trace signals of the CombiProbe are connected to the lowest
four trace signals of the Mictor (ETMv3 pinout, continuous mode).
Please note that a high trace bandwidth, as can be output
via a Mictor connector, may require a PowerTrace.
Product Details
