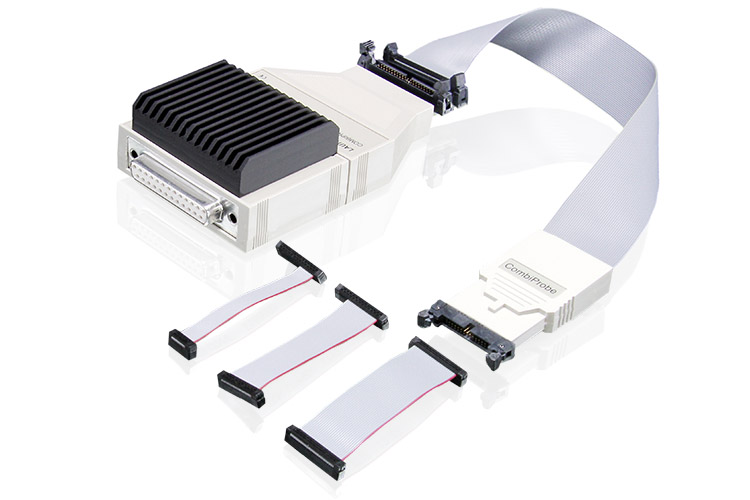

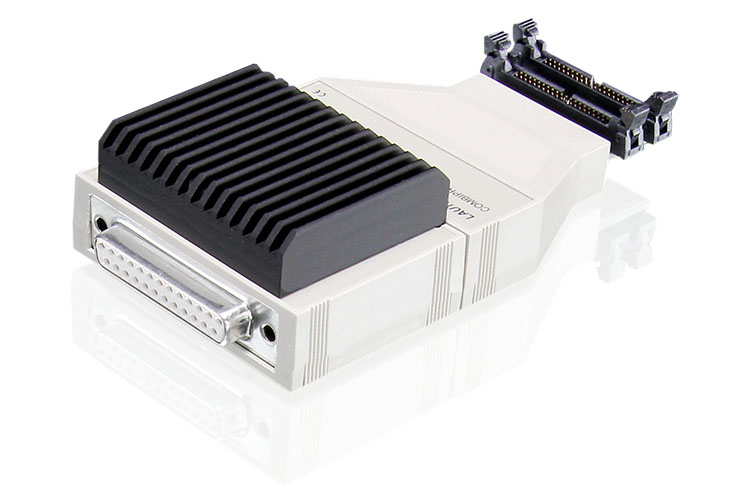

CombiProbe 2 for AUTO26 (PACK)

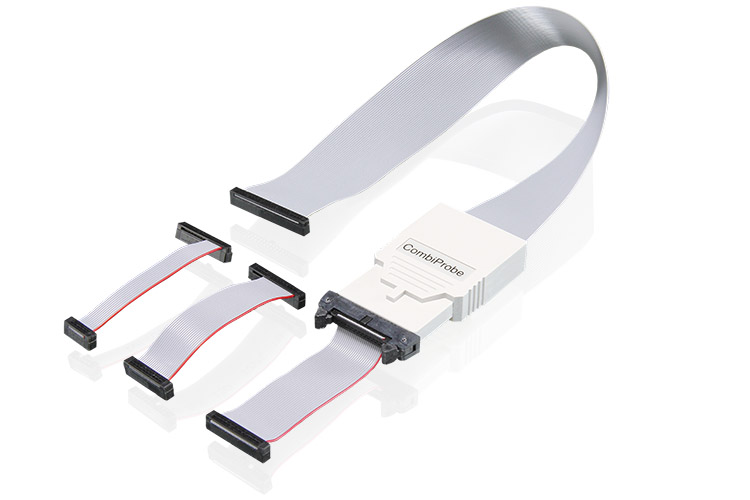

CombiProbe 2 with AUTO26 Whisker
for debugging and DAP Streaming,
supporting DAP (DAP2, DAP3, DAP4, DAPWide), JTAG, DXCPL/DXCM.

For optimal performance, we recommend using a DAP mode.
DAP streaming is supported for TriCore (in DAP mode)
and works most effectively with DAPWide (up to 320 Mbit/s).
For DXCPL/DXCM, you will likely require the CAN-Box (LA-3889) as well.

Voltage Range: 1.8V to 5.0V.
Debug Clock Frequency: 10 kHz to 160 MHz

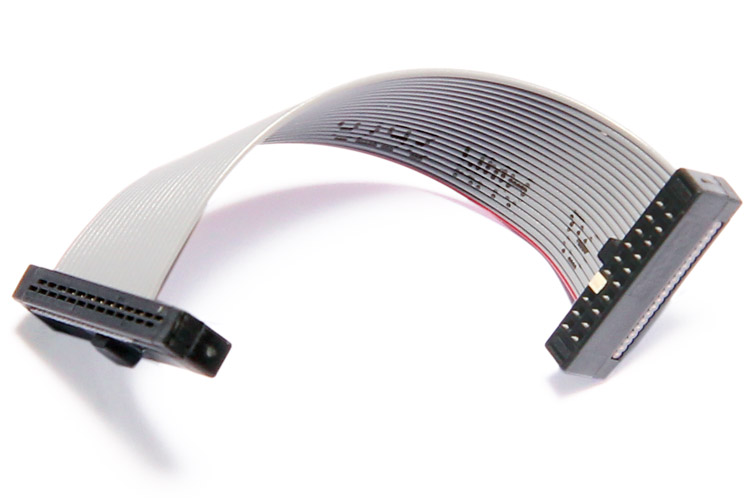

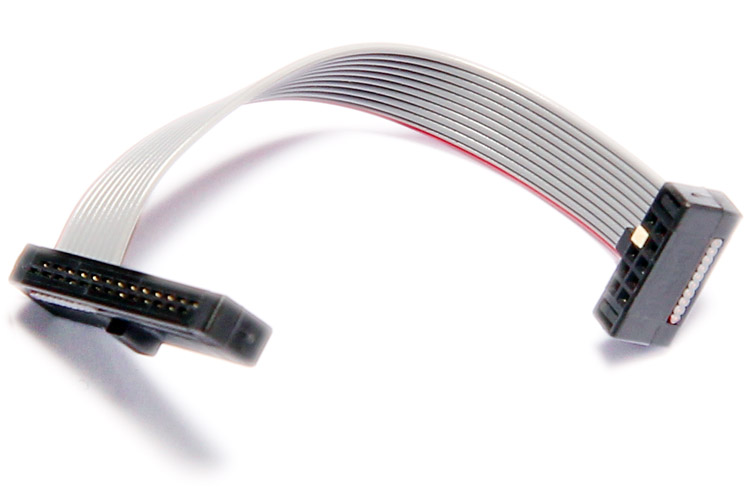

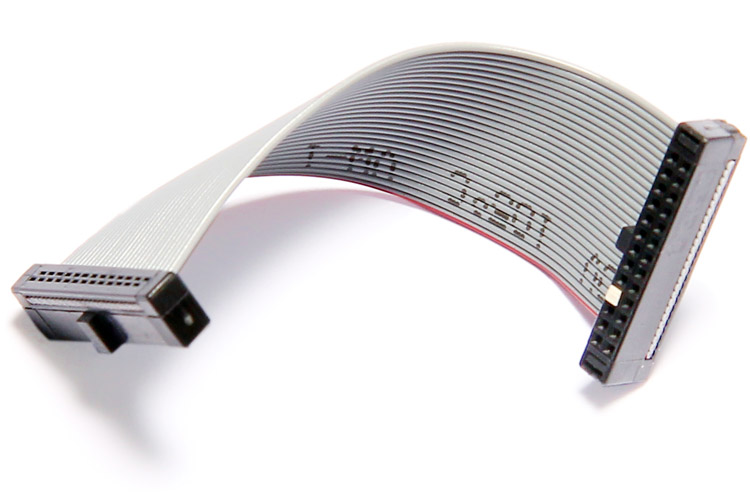

Target Connector: AUTO26, AUTO20, AUTO10
Trace Memory: 512 MByte.

Includes the TRACE32 software for Windows, Linux and macOS
on DVD and for download.

Requires the following A-license:
LA-7756A (Debugger for TriCore Standard Additional).

Trace analysis and display requires
LA-3799X (Trace License for TriCore ED).

Requires Power Debug Interface USB 3.0, PowerDebug II,
PowerDebug PRO, PowerDebug X-Series, PowerDebug E-Series.

Please note that TriCore SoCs usually support only 3.3V or 5V in DAP
mode. Debug clock frequency in JTAG mode is typically limited to 40
MHz on TriCore SoCs (while up to 160 MHz is supported in DAP mode).

Extend your CombiProbe with a Mixed-Signal Probe (LA-2500),
to record digital and analog signals and correlate them with
MCDS DAP streaming. (Requires PowerView R.2024.02 or higher).

Alternatively extend your CombiProbe with a second AUTO26 Whisker
(LA-4553) and a multicore license (LA-7960X) to debug and trace two
TriCore chips simultaneously. (Req. PowerView R.2024.09 or higher).
