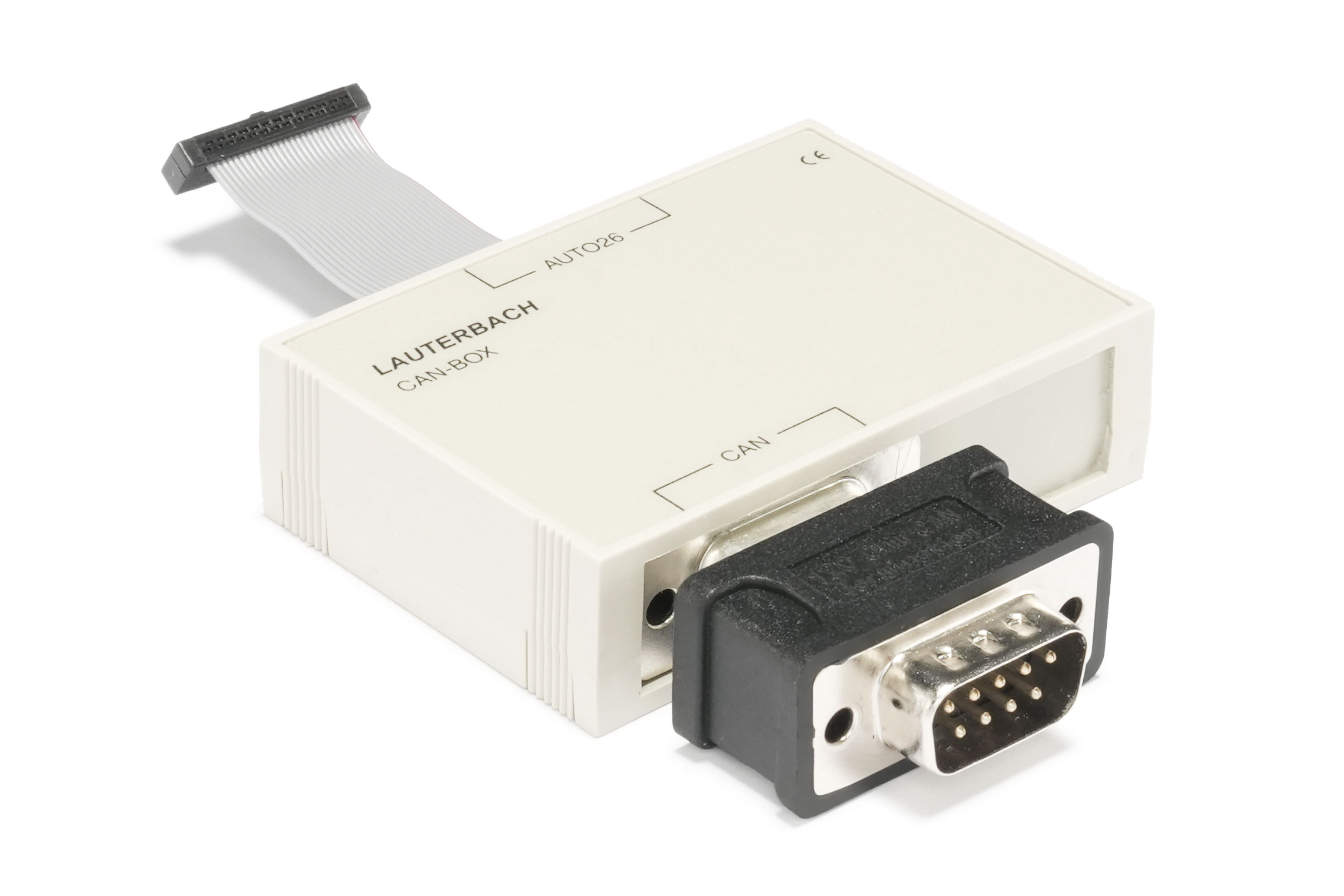

CAN-Box

Product number: LA-3889

Adapter for debugging over a CAN bus with up to 8 Mbit/s
supporting DAP over CAN Physical Layer (DXCPL),
DAP over CAN Message (DXCM) and Single Signal Debug Port (SSDP).

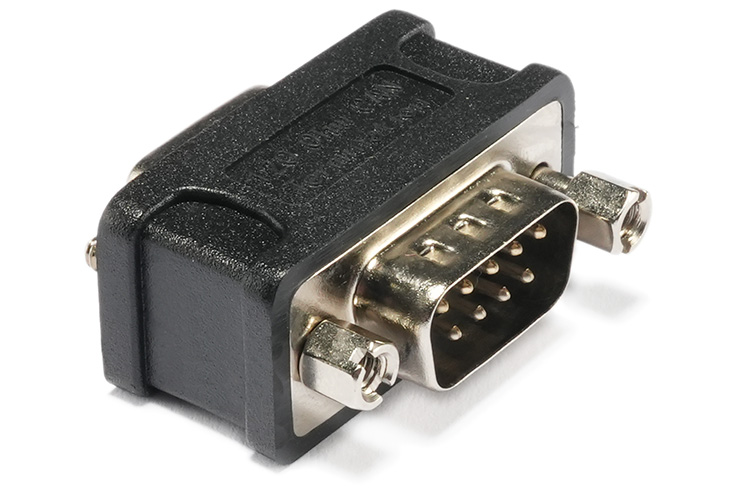

Includes a removable CAN termination resistor (120 Ohm).

Requires an
AUTO26 Debug Cable V3 (LA-3011),
AUTO26 Debug Cable V2 (LA-3010),
or a CombiProbe2 with AUTO26 Whisker (LA-3081).

Requires PowerView software R.2024.02 or newer.

For Arm® Cortex®-based SoCs, please order pack LA-3256 instead,
which includes this CAN box together with a suitable debug cable.
