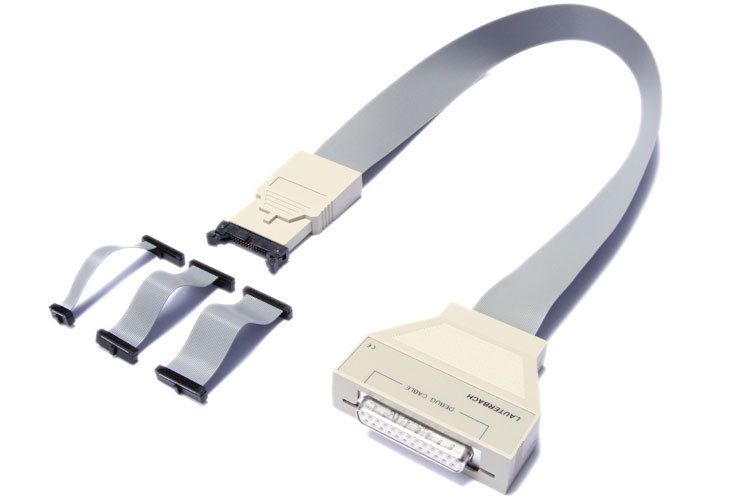

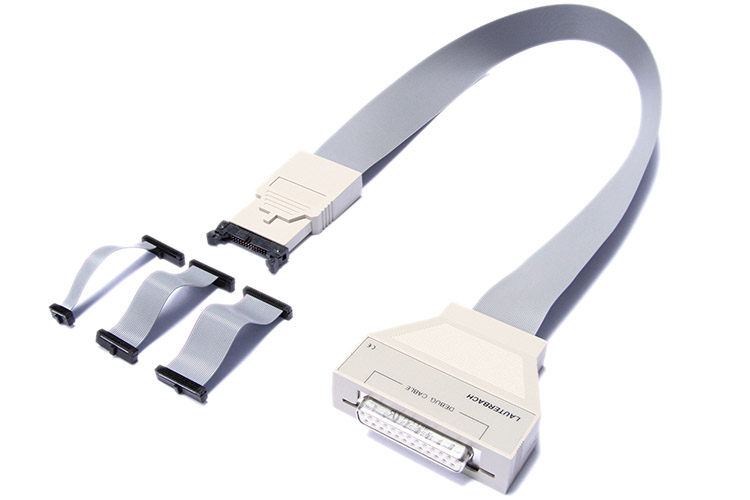

Debugger for TriCore AUTO26 (PACK)
Debugger for TriCore AUTO26 (PACK)
Supports TriCore, PCP and GTM debugging included.
Supports JTAG, DAP, DXCPL, DXCM.
Supports DAP streaming under certain conditions (see below).
Includes the TRACE32 software for Windows, Linux and macOS
on DVD and for download.
Requires PowerDebug Interface USB 2.0/USB 3.0,
PowerDebug Ethernet, PowerTrace Ethernet,
PowerDebug II, PowerDebug PRO, PowerDebug E40
or PowerDebug X50.

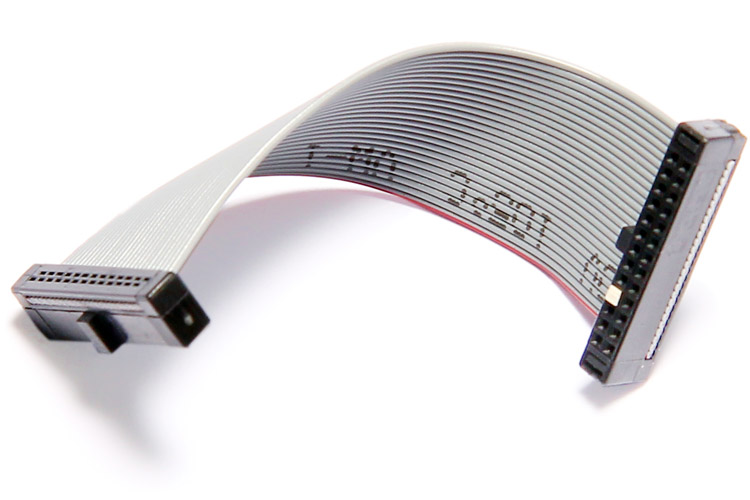

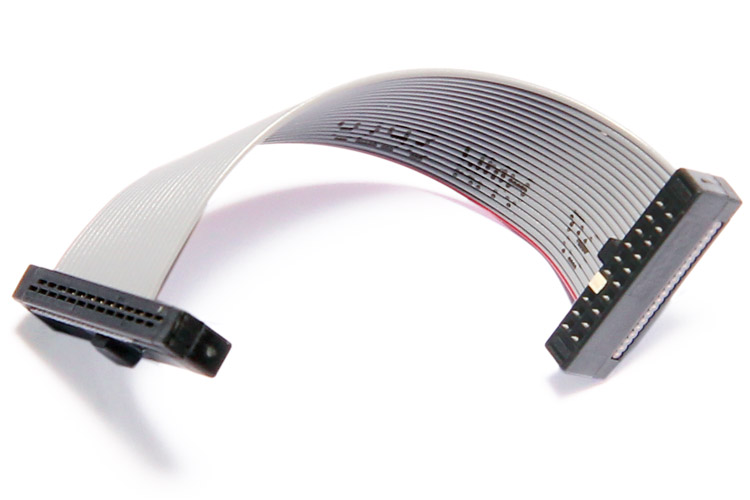

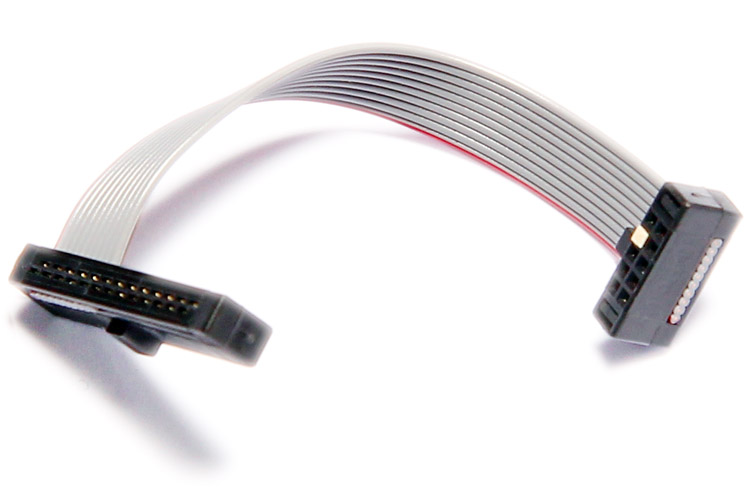

Requires LA-3849 if 16 pin JTAG (TriCore) connector is used.
DAP Streaming is supported if you use the device with a
PowerDebug PRO,E40, or X50 and your PowerView software is version
R.2023.09 or newer (build 160619 or higher).
If these requirements are met, DAP Streaming is possible only in
DAP mode (DAP2, DAP3, DAPWide, DAP4).
For performance reasons, we recommend DAPWide at 320 MHz.
Trace display and analysis (based on DAP streaming, onchip-buffers,
or a PowerTrace) requires LA-3799X (Trace License for TriCore ED).
For DXCPL/DXCM you will probably also need the CAN-Box (LA-3889).
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the Debugger for TriCore AUTO26 (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Debugger for Armv8/Armv9-A/R Add.
- LA-3750A Debug License for ARC® Add.
- LA-2760A Debugger for dsPIC Add.
- LA-3732A OCDS Debugger for XC800 Additional
- LA-3730A Debug License for MicroBlaze Additional
- LA-7960X License for Multicore Debugging
- LA-7838A Debug License for C6000 Add.
- LA-7753A JTAG Debugger for MPC5xxx (ICD) Additional
- LA-3760A Debug License for Xtensa® Add.
- LA-3799X Trace License for TriCore ED
- LA-3719A Debugger for RH850 Additional
- LA-7844A Debugger for Cortex-M (Armv6/7/8-M) Add.
- LA-7847A Debug License for C2000 Add.
- LA-7843A Debugger for Armv7-A/R Add.
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-2756A JTAG Debugger for PRU Add.
- LA-2759A Debug License for C7000 Add.
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-2900X License for PIL Simulation (Cable)
