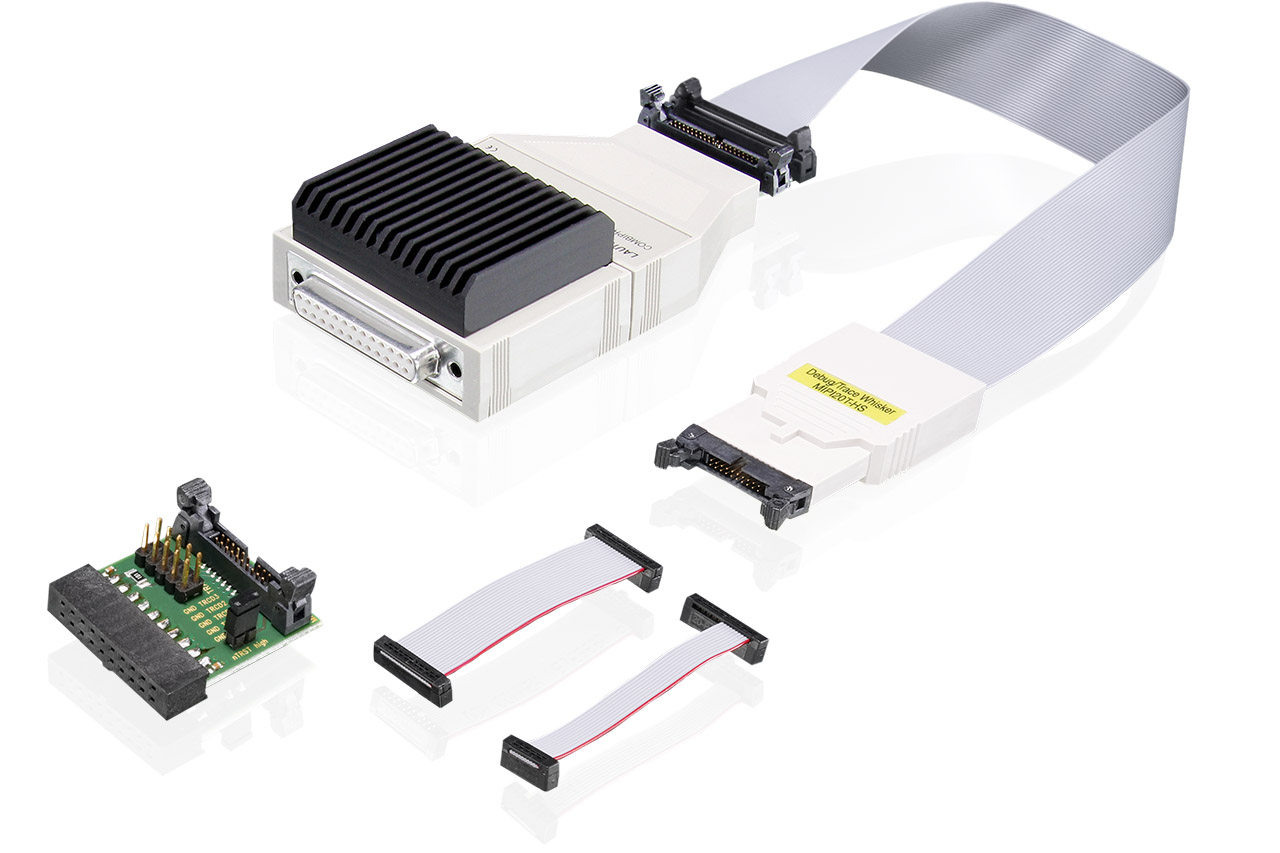

CombiProbe 2 for MIPI20T-HS (PACK)

OVERVIEW

CombiProbe 2 for MIPI20T-HS (PACK)

Product number: LA-3080

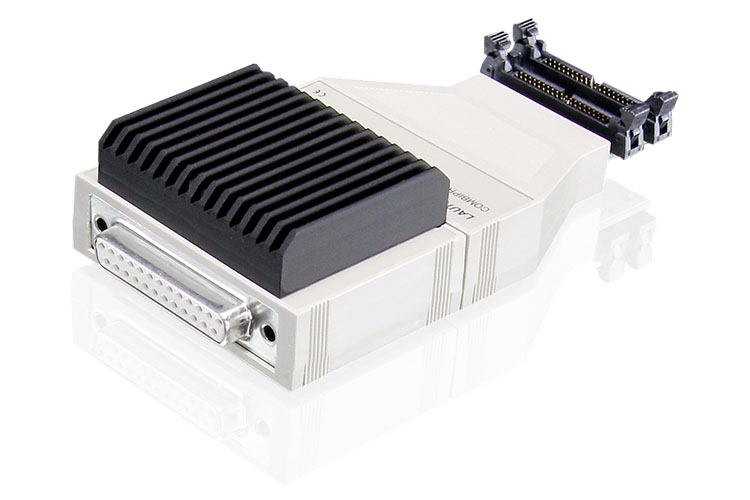

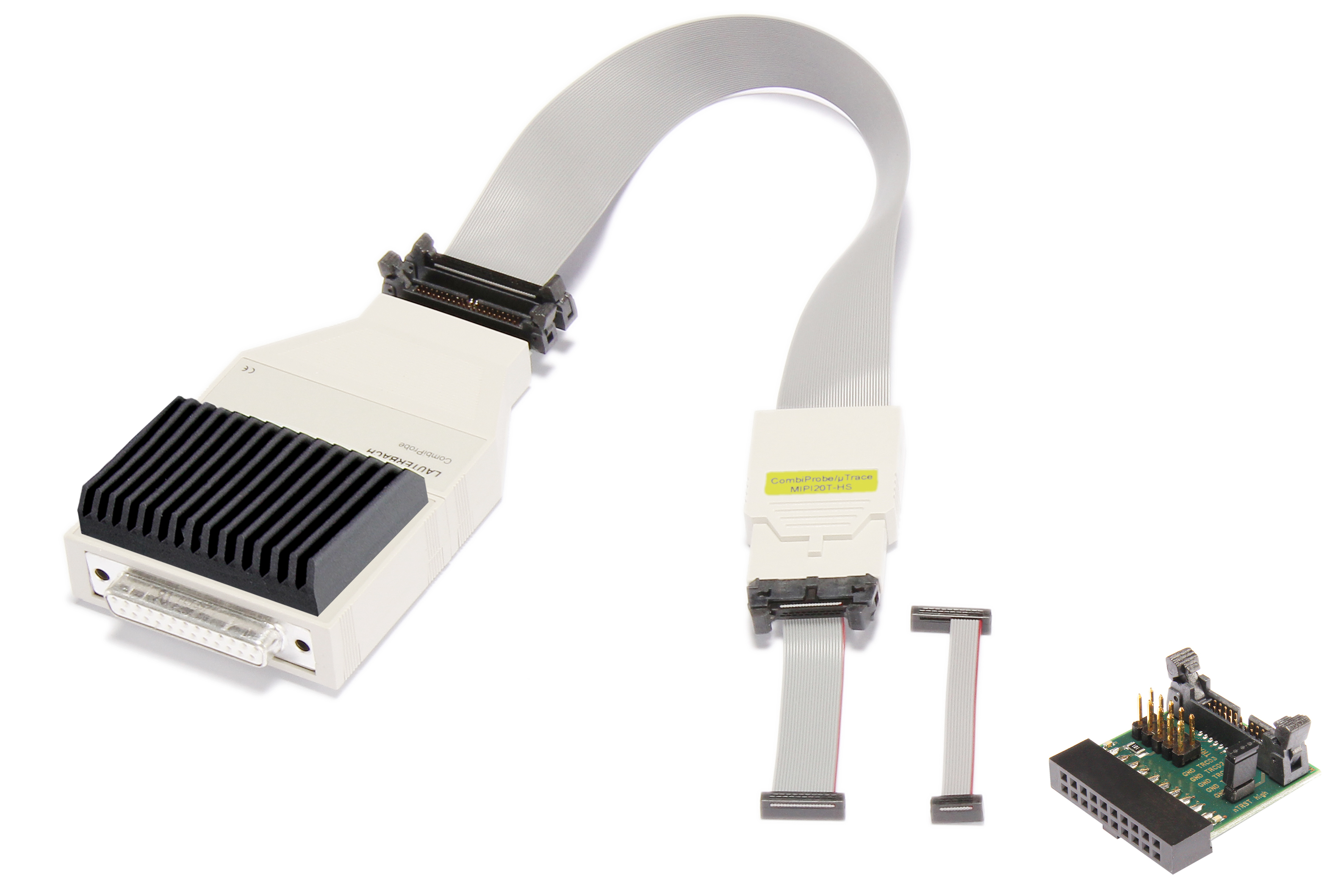

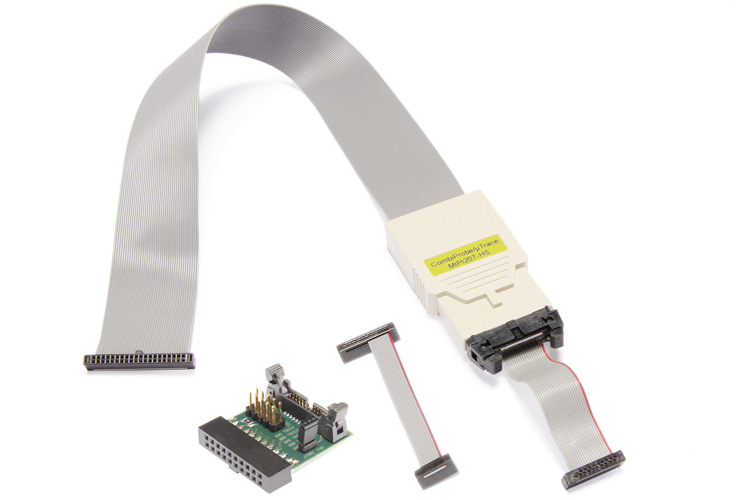

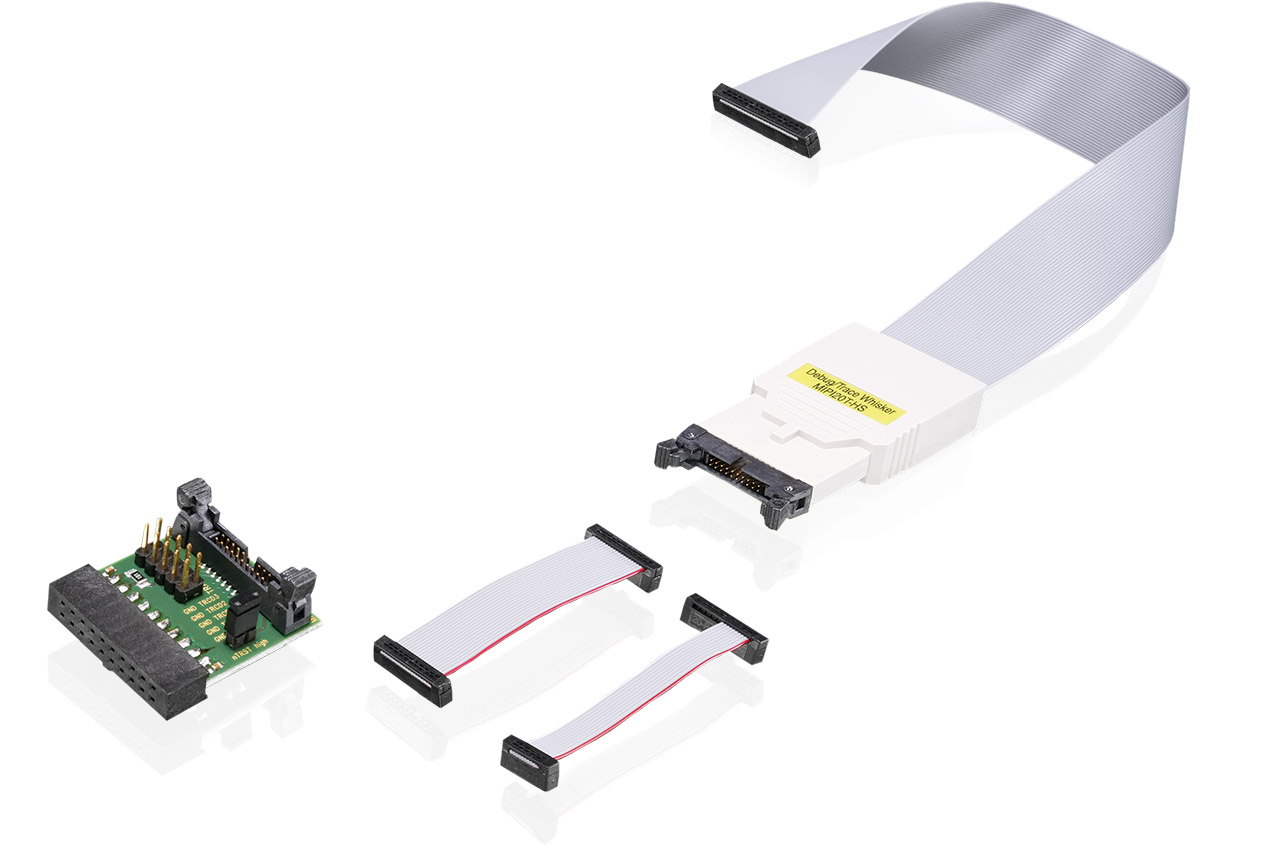

CombiProbe 2 with MIPI20-HS whisker for debugging and tracing.

Voltage Range: 1.2V...5.0V.
Target Connector: MIPI20T, MIPI10
Trace Memory: 512 MByte.
Maximum Trace Port Width: 4 pins.
Maximum Trace Bandwidth: 400 MBit/s per trace pin.

Includes the TRACE32 software for Windows, Linux and macOS
on DVD and for download.

Requires at least one of the following A-licenses:
LA-3743A Debug. for Cortex-A/R (Armv8 and Armv9) Add.
LA-7844A Debug Cortex-M (Armv6/7/8 32-bit) Add.
LA-7843A Debug Cortex-A/-R (Armv7 32-bit) Add.
LA-7765A JTAG Debugger License for Arm11 Add.
LA-7742A JTAG Debugger License for Arm9 Add.
LA-7746A JTAG Debugger License for Arm7 Add.
LA-2540A Debugger for RISC-V 32-bit Add.
LA-2541A Debugger for RISC-V 64-bit Add.

Requires trace license LA-7970X for on-chip ETM traces of Cortex-A/R.
Requires trace license LA-2767X for RISC-V off-chip traces emitted via
a 4-bit Pin Interface Block (PIB).

Requires Power Debug Interface USB 3.0,PowerDebug II,
PowerDebug PRO, PowerDebug E40 or PowerDebug X50.

Extend your CombiProbe with a Mixed-Signal Probe (LA-2500),
to record and correlate digital and analog signals.

Add-ons

Extend the CombiProbe 2 for MIPI20T-HS (PACK)
