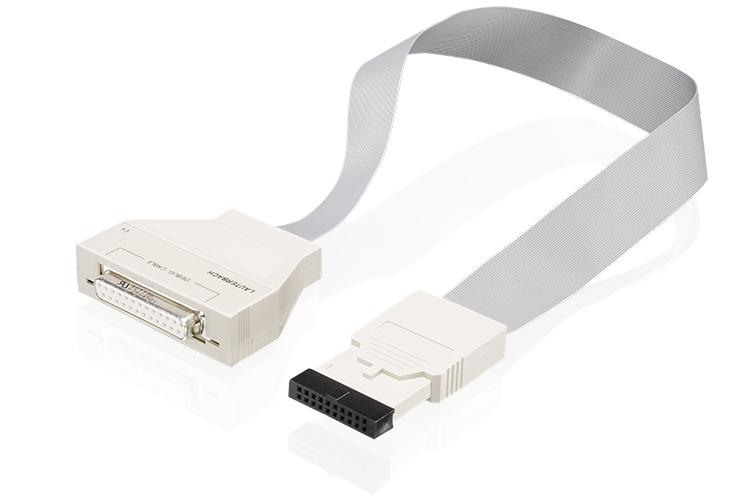

JTAG Debugger for Arm7 20 Pin Connector (ICD)
OVERVIEW
JTAG Debugger for Arm7 20 Pin Connector (ICD)
Product number:
LA-7746
Out of production
supports Arm7 (0.4 V - 5 V)
IDC20A debug cable supports 5-pin standard JTAG, cJTAG and
Serial Wire Debug Port, (0.4 V - 5 V)
includes software for Windows, Linux and MacOSX
requires Power Debug Module
cJTAG and SWD require
Power Debug Interface USB 2.0/USB 3.0,
Power Debug Ethernet, PowerTrace, Power Debug II
or PowerDebug PRO
This product is discontinued and not available for purchase.
Superseded by LA-3250 Debugger Arm7 IDC20A (PACK)
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for Arm7 20 Pin Connector (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3778A JTAG Debugger License for APS Add.
- LA-7845A JTAG Debugger License for StarCore 20 Pin Add
- LA-7844X Debugger for Cortex-M (Armv6/7/8-M) Ext.
- LA-7760A Debugger License for MIPS32 Add.
- LA-7830A Debug License for C5500 DSP Add.
- LA-3750A Debug License for ARC® Add.
- LA-2751A JTAG Debugger for STRED Add.
- LA-7832A JTAG Debugger for ZSP400 DSP Core Additional
- LA-7762X JTAG Debugger Extension for XSCALE (ICD)
- LA-7789A JTAG Debugger for TeakLite/OAK SEIB (ICD)
- LA-7831A Debug License for C5400 DSP Add.
- LA-3747A JTAG/SPI Debugger License for UBI32 Add.
- LA-7817A JTAG Debugger License for SH2/SH3/SH4 Add.
- LA-7742X JTAG Debugger Extension for Arm9
- LA-7960X License for Multicore Debugging
- LA-3712A JTAG Debugger for ZSP500 DSP Core Additional
- LA-7838A Debug License for C6000 Add.
- LA-7843X Debugger for Armv7-A/R Ext.
- LA-3760A Debug License for Xtensa® Add.
- LA-3756A Debug License for AndesCore™ V3/V2 Add.
- LA-3711A Debug License for CEVA-X Add.
- LA-7847A Debug License for C2000 Add.
- LA-7744X JTAG Debugger Extension for ARM10
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-7970X Trace License for Arm (Debug Cable)
- LA-3743X Debugger for Armv8/Armv9-A/R Ext.
- LA-7765X JTAG Debugger Extension for Arm11
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-3844A JTAG Debugger for TeakLite-4 Add. (ICD)
- LA-3741A Debug License for Hexagon Add.
- LA-3774A JTAG Debugger for TeakLite III Add. (ICD)
- LA-2900X License for PIL Simulation (Cable)
