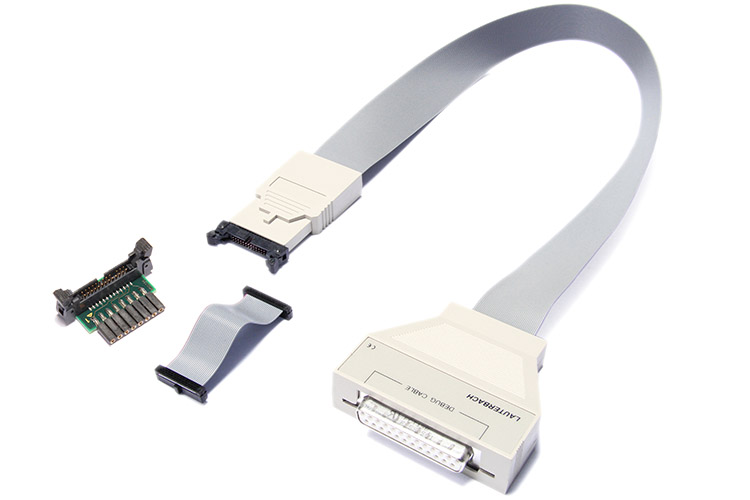

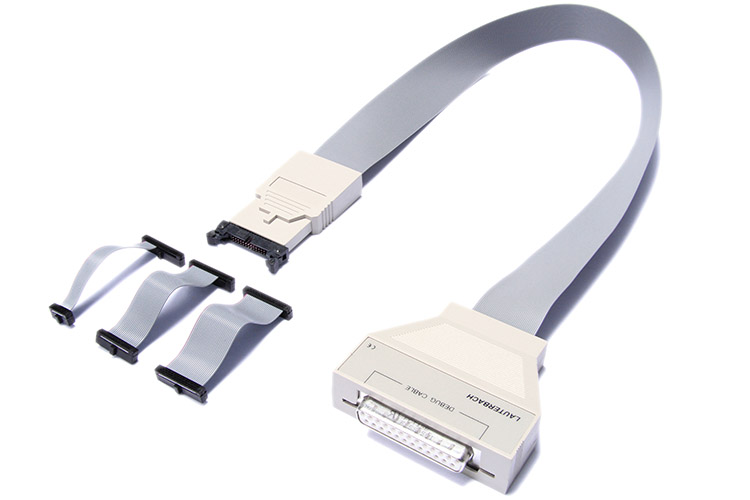

AUTO26 Debug Probe with dsPIC License
AUTO26 Debug Probe with dsPIC License
Debug Cable with debug license
to debug dsPIC single-core controller from Microchip.
Supports dsPIC33A, dsPIC33C, and dsPIC33E.
To debug dual-core dsPICs order instead:
LA-3084 Package for CombiProbe 2 dsPIC Dual Core.

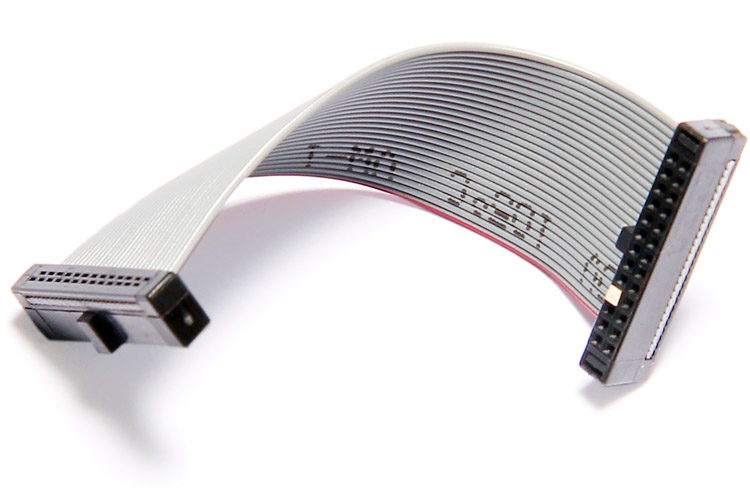

Includes Debug Cable with 26 pin connector (1.8V to 5.0V).

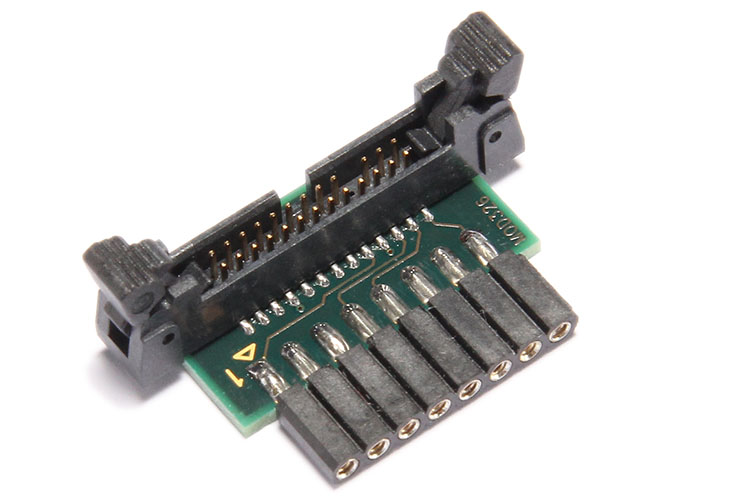

Includes Converter to MICROCHIP-8 header.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Requires one of the following PowerDebug base modules:
PowerDebug X-Series, PowerDebug E-Series, PowerDebug PRO,
PowerDebug Interface USB 2/USB 3, PowerDebug II,
PowerDebug Ethernet, PowerTrace Ethernet.
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the AUTO26 Debug Probe with dsPIC License
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Armv8/v9-A/R Debug License (Nodelocked)
- LA-3750A ARC® 32-bit Debug License (Nodelocked)
- LA-3732A XC800 Debug License (Nodelocked)
- LA-3730A MicroBlaze Debug License (Nodelocked)
- LA-7960X License for Multicore Debugging
- LA-7838A C6000 Debug License (Nodelocked)
- LA-7753A MPC5xxx Debug License (Nodelocked)
- LA-3760A Xtensa® Debug License (Nodelocked)
- LA-3711A Ceva-X Debug License (Nodelocked)
- LA-3719A RH850 Debug License (Nodelocked)
- LA-7844A Cortex-M Debug License (Nodelocked)
- LA-7847A C2000 Debug License (Nodelocked)
- LA-7843A Armv7-A/R Debug License (Nodelocked)
- LA-2540A RISC-V 32-bit Debug License (Nodelocked)
- LA-2756A JTAG Debugger for PRU Add.
- LA-2759A C7000 Debug License (Nodelocked)
- LA-7756A TriCore Debug License (Nodelocked)
- LA-2541A RISC-V 64-bit Debug License (Nodelocked)
