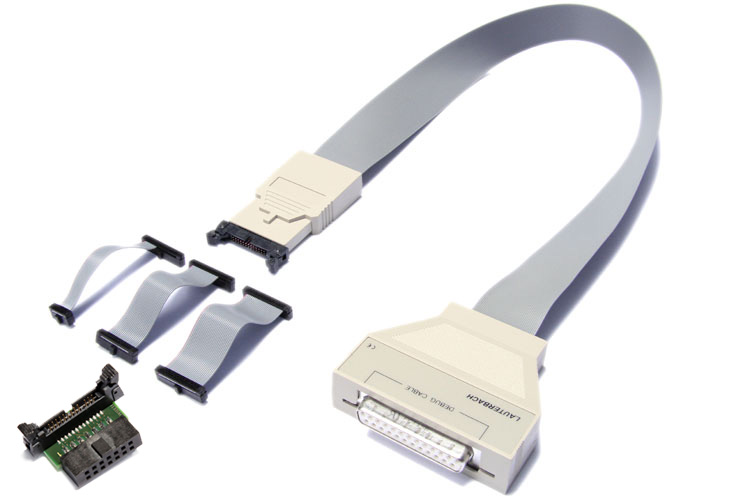

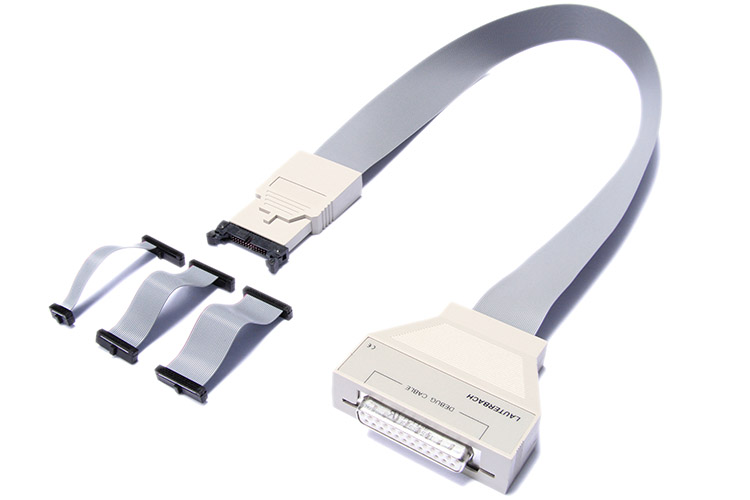

AUTO26 Debug Probe with RH850 License
OVERVIEW
AUTO26 Debug Probe with RH850 License
Product number:
LA-3205
Supports RH850 via JTAG, LPD4, LPD1 (included ICU-M core).
Includes software for Windows, Linux and macOS.
Requires PowerDebug debug base module from 2004 and newer.
(Works with all PowerDebug except Gen 1 (LA-7702 & LA-7704).)
Includes Debug Cable with 26 pin connector (1.8V to 5.0V).

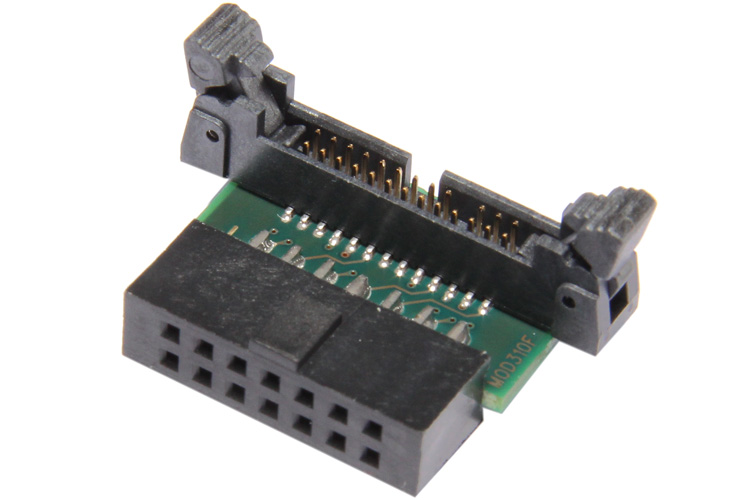

Includes Converter AUTO26 to JTAG14 (LA-2700).
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the AUTO26 Debug Probe with RH850 License
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Armv8/v9-A/R Debug License (Nodelocked)
- LA-3750A ARC® 32-bit Debug License (Nodelocked)
- LA-2760A dsPIC Debug License (Nodelocked)
- LA-3732A XC800 Debug License (Nodelocked)
- LA-3730A MicroBlaze Debug License (Nodelocked)
- LA-7960X License for Multicore Debugging
- LA-7838A C6000 Debug License (Nodelocked)
- LA-7753A MPC5xxx Debug License (Nodelocked)
- LA-3760A Xtensa® Debug License (Nodelocked)
- LA-3711A Ceva-X Debug License (Nodelocked)
- LA-7844A Cortex-M Debug License (Nodelocked)
- LA-7847A C2000 Debug License (Nodelocked)
- LA-7843A Armv7-A/R Debug License (Nodelocked)
- LA-2540A RISC-V 32-bit Debug License (Nodelocked)
- LA-2756A JTAG Debugger for PRU Add.
- LA-2759A C7000 Debug License (Nodelocked)
- LA-7756A TriCore Debug License (Nodelocked)
- LA-2541A RISC-V 64-bit Debug License (Nodelocked)
- LA-3734X Trace Support for RH850 (Debug Cable/COB)
- LA-2900X License for PIL Simulation (Cable)
