CombiProbe 2 for dsPIC Dual Core (PACK)
OVERVIEW
CombiProbe 2 for dsPIC Dual Core (PACK)
Product number:
LA-3084
Not recommended for new projects

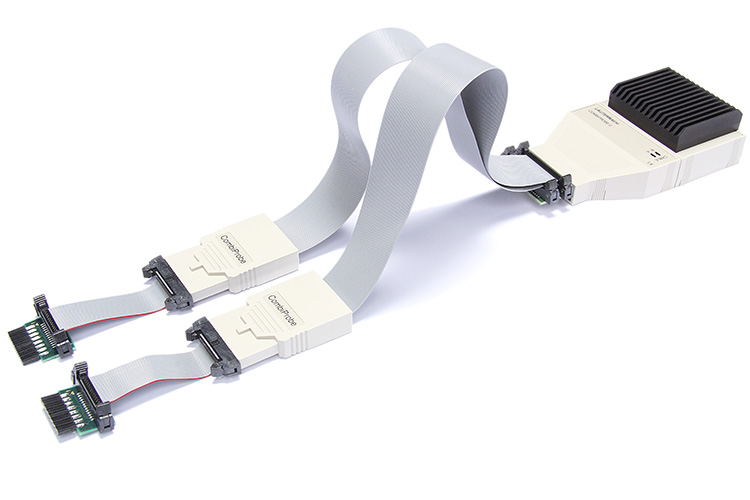

CombiProbe with two whisker cables
to debug dual-core dsPIC controller from Microchip.
Supports dsPIC33A, dsPIC33C, and dsPIC33E.
Requires the following A-license:
LA-2760A (Debugger for PIC Additional)
LA-7960X (License for Multicore Debugging).
Requires one of the following debug base modules:
PowerDebug X-Series, PowerDebug E-Series
PowerDebug PRO, PowerDebug II, PowerDebug USB 3.
Includes two Debug Whisker with 26 pin connector (1.8V to 5.0V).

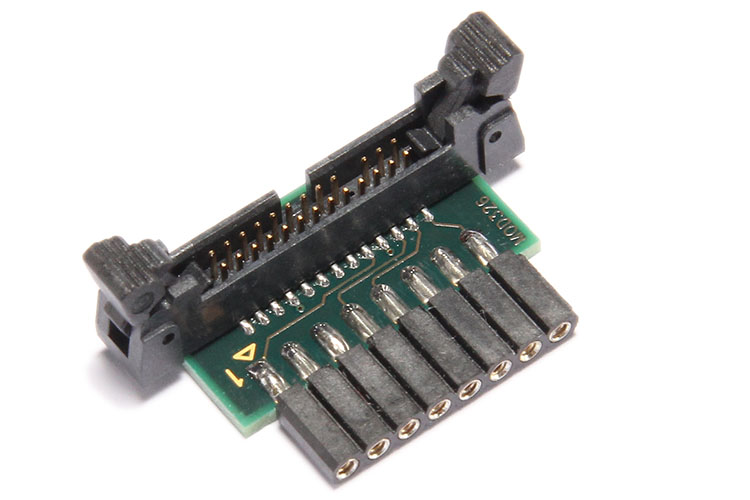

Includes Converter to MICROCHIP-8 header.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
We recommend using this product only for existing projects. For new projects, please consider one of the available superseding products. If no suitable product is available, feel free to contact us to discuss alternative solutions.
LA-3097 MIPI20T-HS CombiProbe with dsPIC License
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the CombiProbe 2 for dsPIC Dual Core (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2768A Synopsys ASIP Debug License (tool locked)
- LA-2750A CoolFlux Debug License (tool locked)
- LA-2798A SPARC-V8 Debug License (tool locked)
- LA-3743A Armv8/v9-A/R Debug License (tool locked)
- LA-3776A Intel x86/x64 Debug License (tool locked)
- LA-7837A Nios® II Debug License (tool locked)
- LA-7760A MIPS32 Debug License (tool locked)
- LA-3750A ARC® 32-bit Debug License (tool locked)
- LA-2760A dsPIC Debug License (tool locked)
- LA-2751A JTAG Debugger for STRED Add.
- LA-3730A MicroBlaze Debug License (tool locked)
- LA-7960X License for Multicore Debugging (tool locked)
- LA-3712A ZSP500 Debug License (tool locked)
- LA-7746A ARM7 Debug License (tool locked)
- LA-7838A C6000 Debug License (tool locked)
- LA-3760A Xtensa® Debug License (tool locked)
- LA-3711A Ceva®-X™ Debug License (tool locked)
- LA-7844A Cortex-M Debug License (tool locked)
- LA-7742A ARM9 Debug License (tool locked)
- LA-7847A C2000 Debug License (tool locked)
- LA-7843A Armv7-A/R Debug License (tool locked)
- LA-2540A RISC-V 32-bit Debug License (tool locked)
- LA-2756A PRU Debug License (tool locked)
- LA-7774A TeakLite JAM Debug License (tool locked)
- LA-2759A C7000 Debug License (tool locked)
- LA-7756A TriCore Debug License (tool locked)
- LA-2541A RISC-V 64-bit Debug License (tool locked)
- LA-7765A ARM11 Debug License (tool locked)
- LA-3741A Hexagon Debug License (tool locked)
