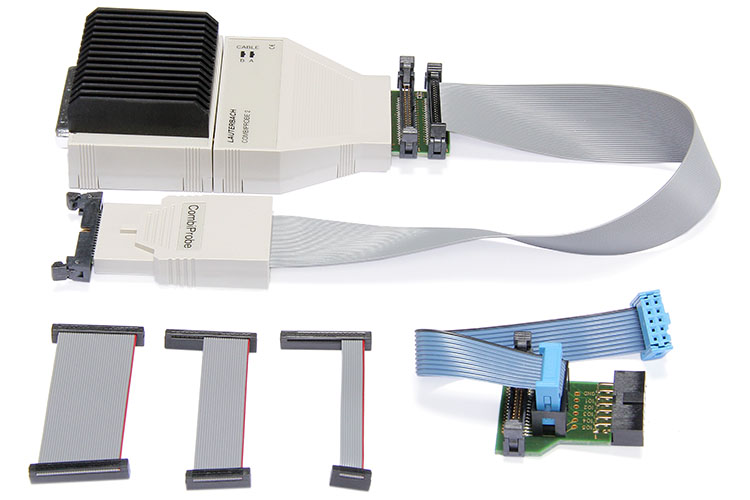

CombiProbe 2 for MIPS32+4-Bit IFLOW (PACK)
CombiProbe 2 for MIPS32+4-Bit IFLOW (PACK)

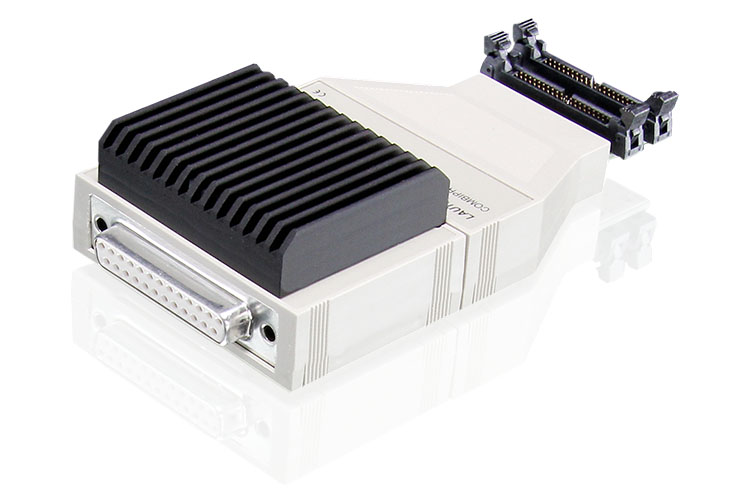

CombiProbe 2 to debug and trace MIPS32 CPUs
with 4 Bit IFLOW trace.
Voltage Range: 1.2V...3.3V (5V tolerant inputs).

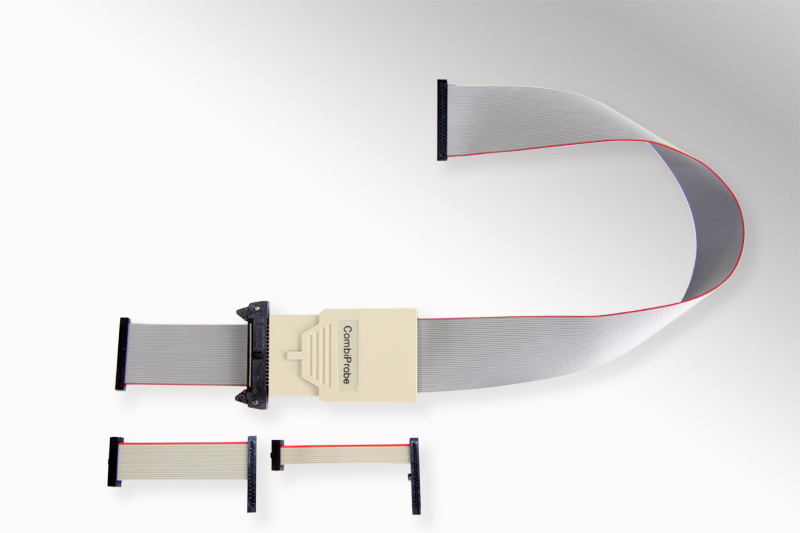

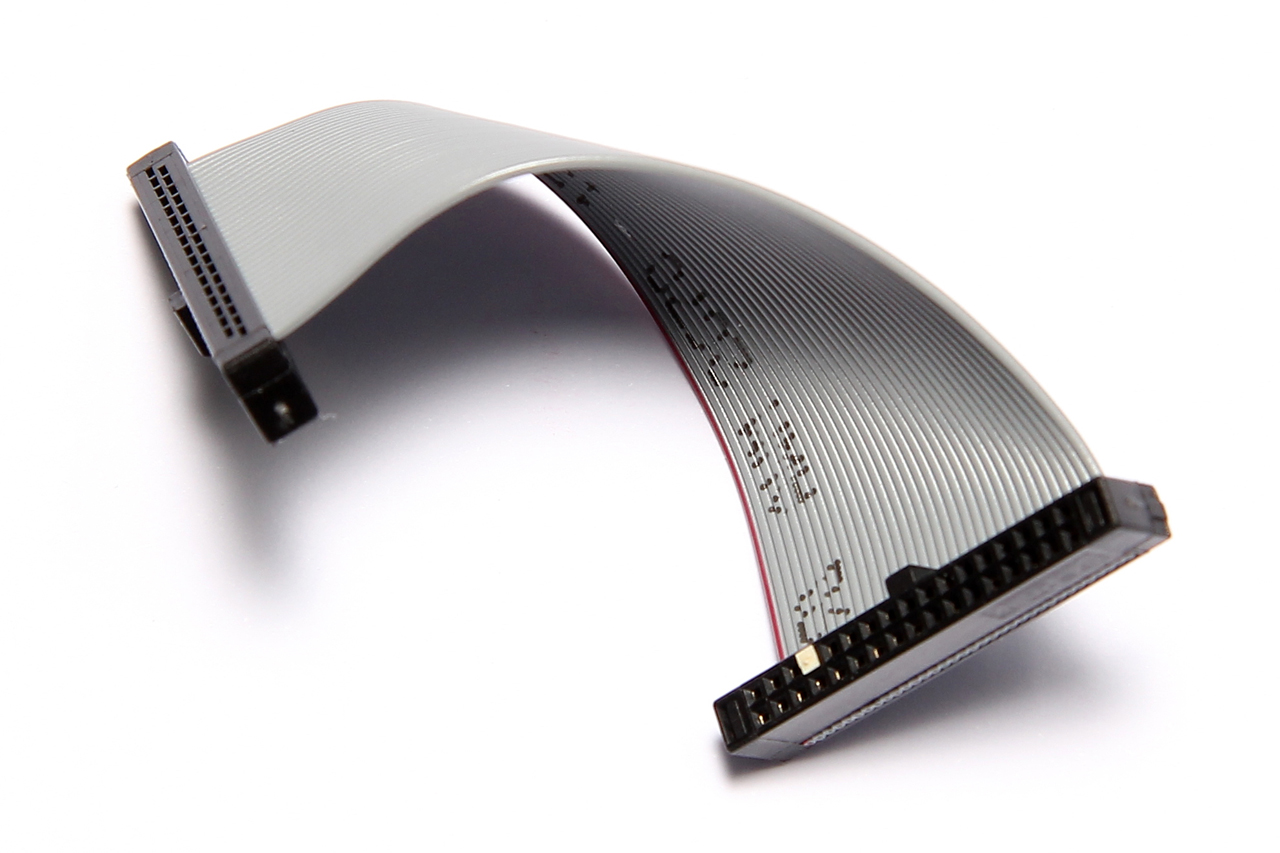

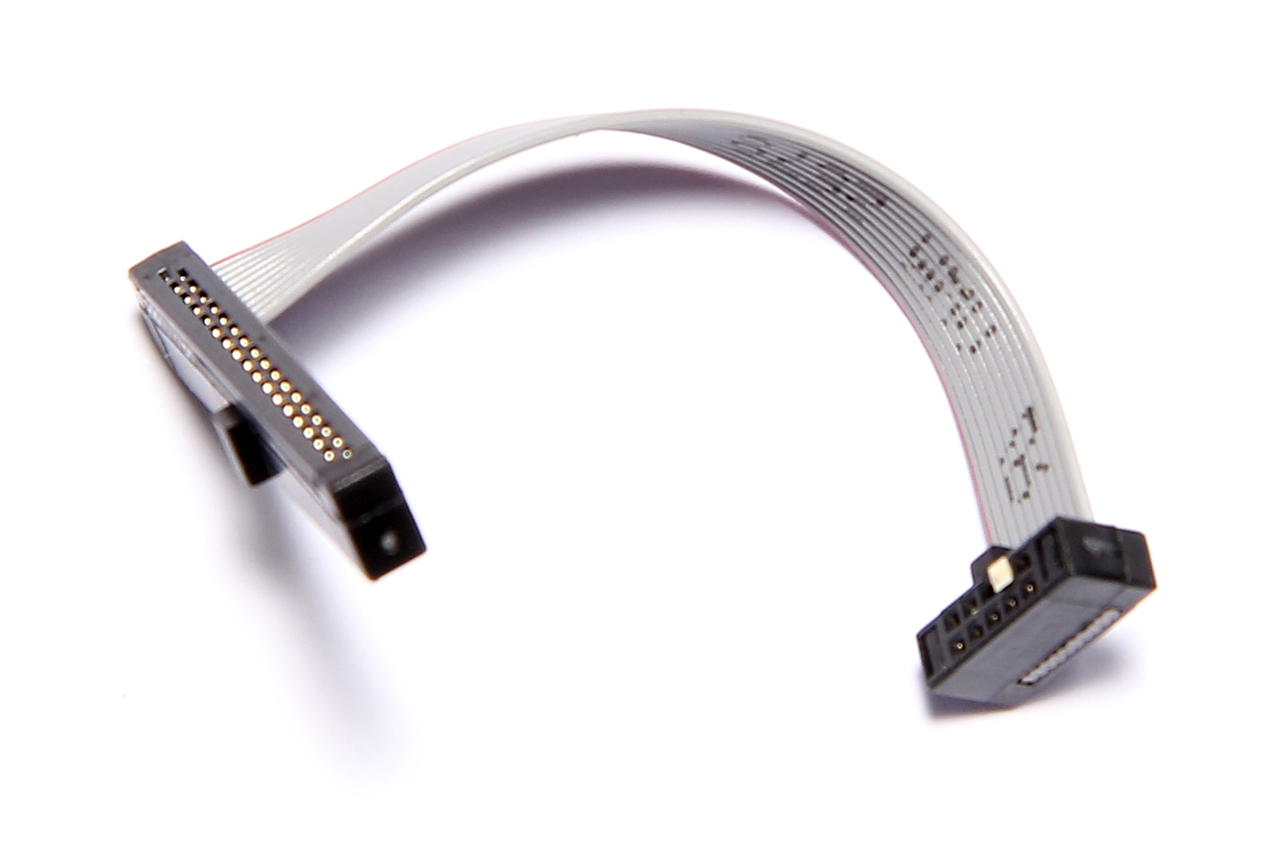

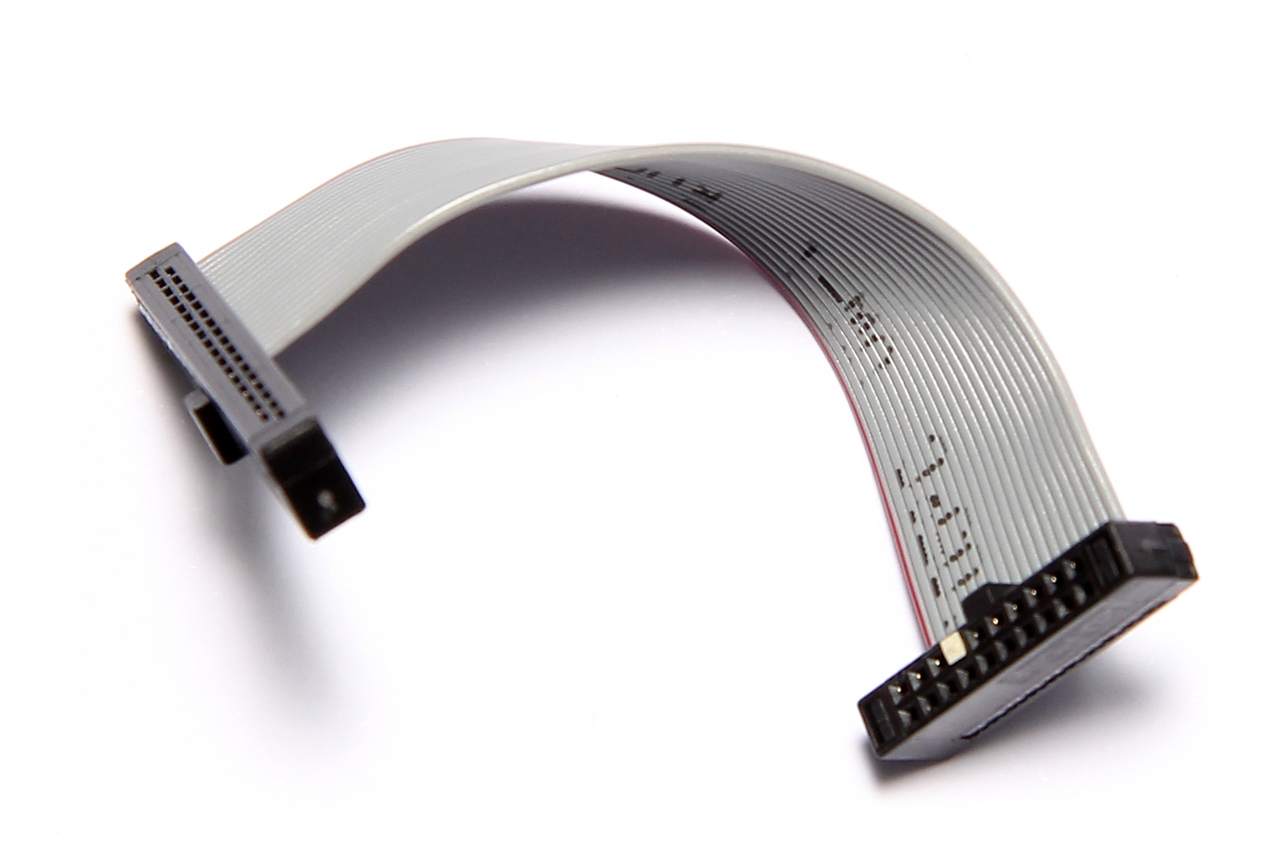

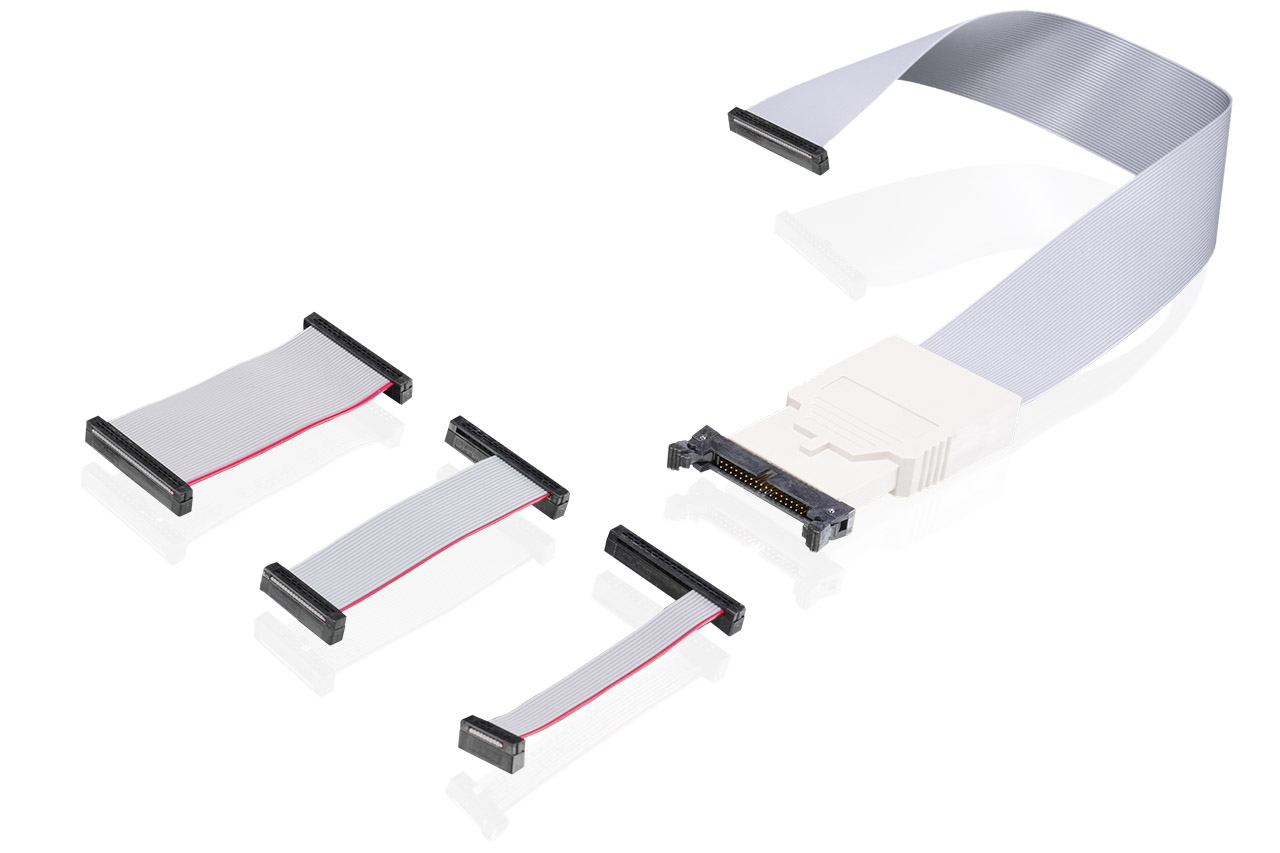

Target Connector: MIPI34, MIPI20T, MIPI10, eJTAG/IFLOW.
Trace memory: 512 MByte.
Maximum trace port width: 4 pins.
Maximum trace bandwidth: 200 MBit/s per trace pin.

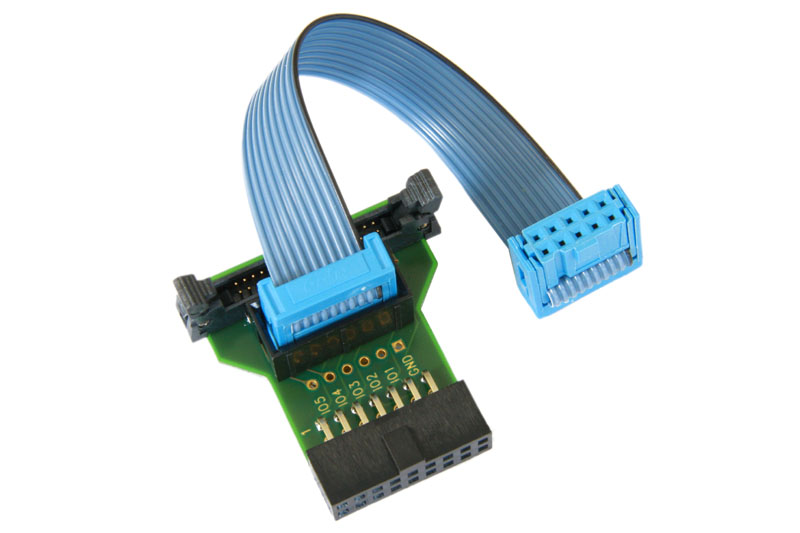

Iincluded adapter for eJTAG and IFLOW connector.
Includes the TRACE32 software for Windows, Linux and macOS
on DVD and for download.
Requires the following A-license:
LA-7760A (JTAG Debugger for MIPS32).
4-Bit IFlow program trace requires:
LA-7971X (Trace License for the MIPS32).
Requires TRACE32 Software R.2022.02 (build 142224) or newer.
Requires Power Debug Interface USB 3.0, PowerDebug II,
PowerDebug PRO, PowerDebug X-Series, PowerDebug E-Series.
Extend your CombiProbe with a Mixed-Signal Probe (LA-2500),
to record and correlate digital and analog signals.
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the CombiProbe 2 for MIPS32+4-Bit IFLOW (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2768A JTAG Debugger for Synopsys ASIP Cores Add.
- LA-3743A Debugger for Armv8/Armv9-A/R/X Add.
- LA-3776A JTAG Debugger for Intel x86/x64 Add.
- LA-7837A Debug License for Nios® II Add.
- LA-7760A Debugger License for MIPS32 Add.
- LA-3750A Debug License for ARC® 32-bit Add.
- LA-2760A Debugger for dsPIC Add.
- LA-2751A JTAG Debugger for STRED Add.
- LA-3730A Debug License for MicroBlaze Additional
- LA-3712A JTAG Debugger for ZSP500 DSP Core Additional
- LA-7746A JTAG Debugger License for Arm7 Add.
- LA-7838A Debug License for C6000 Add.
- LA-3760A Debug License for Xtensa® Add.
- LA-3711A Debug License for CEVA-X Add.
- LA-7844A Debugger for Cortex-M (Armv6/7/8-M) Add.
- LA-7742A JTAG Debugger License for Arm9 Add.
- LA-7847A Debug License for C2000 Add.
- LA-7843A Debugger for Armv7-A/R Add.
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-2756A JTAG Debugger for PRU Add.
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-2759A Debug License for C7000 Add.
- LA-7756A Debugger for TriCore Additional
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-7765A JTAG Debugger License for Arm11 Add.
- LA-3741A Debug License for Hexagon Add.
