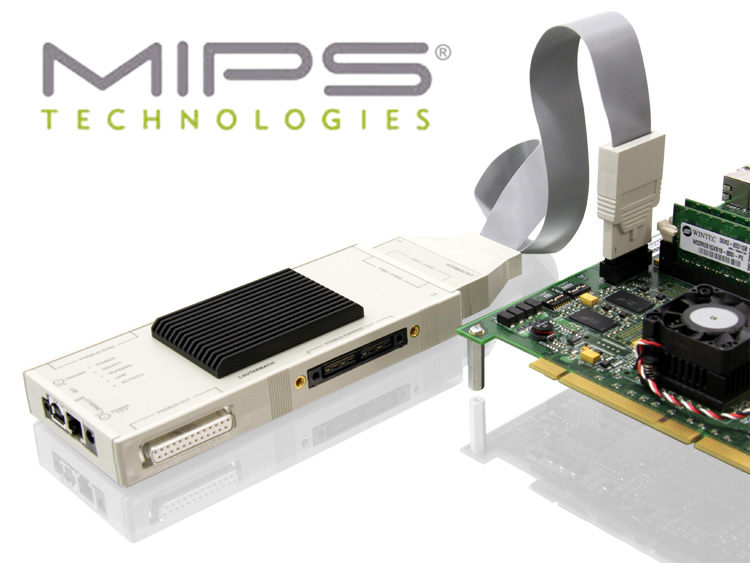

JTAG Debugger for MIPS32 (ICD)
OVERVIEW
JTAG Debugger for MIPS32 (ICD)
Product number:
LA-7760
Support for MIPS32 4Kp, 4Km, 4Kc derivatives
and LEXRA LX4280

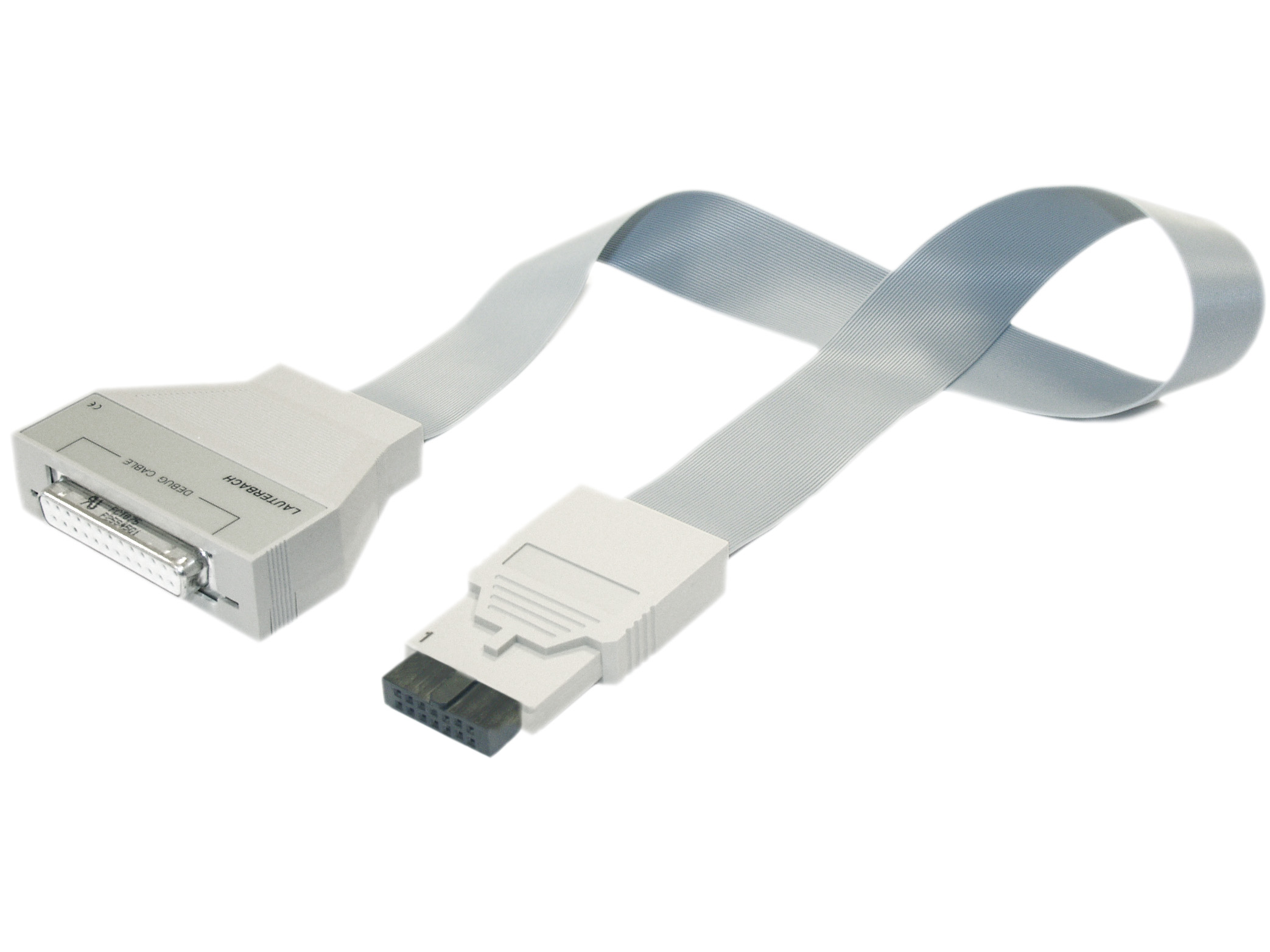

via a 14 pin MIPS debug cable.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Requires Power Debug Module.
For MIPS IP based on RISC-V, you require a RISC-V probe
instead (LA-3200 or LA-3201).
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for MIPS32 (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Debugger for Armv8/Armv9-A/R Add.
- LA-3750A Debug License for ARC® Add.
- LA-7848A JTAG Debugger for M8051EW Add.
- LA-7971X Trace License for MIPS32
- LA-7960X License for Multicore Debugging
- LA-7746A JTAG Debugger License for Arm7 Add.
- LA-7761A EJTAG Debugger License for MIPS64 Add.
- LA-3760A Debug License for Xtensa® Add.
- LA-7844A Debugger for Cortex-M (Armv6/7/8-M) Add.
- LA-7742A JTAG Debugger License for Arm9 Add.
- LA-7843A Debugger for Armv7-A/R Add.
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-3844A JTAG Debugger for TeakLite-4 Add. (ICD)
- LA-7765A JTAG Debugger License for Arm11 Add.
- LA-3774A JTAG Debugger for TeakLite III Add. (ICD)
