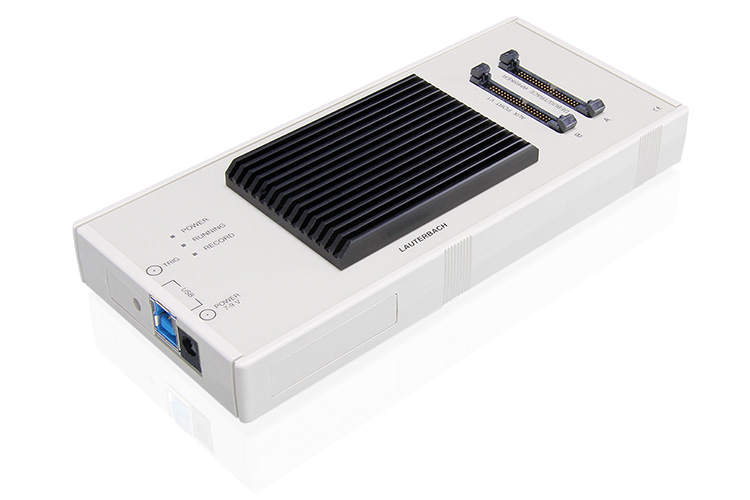

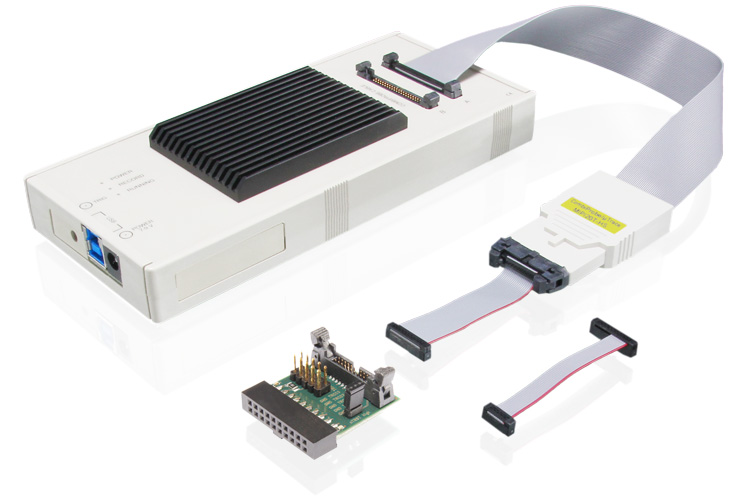

MicroTrace for Cortex-M (PACK)
MicroTrace for Cortex-M (PACK)
All-In-One Debug and Trace Solution for Arm Cortex-M.
Supports 5-pin standard JTAG, cJTAG and Serial Wire Debug Port
for Arm Cortex-M cores and SecurCore SC000/SC300
Supports Cortex-M onchip-trace and parallel offchip-trace
with up to 4-bits (if supported by the core as well) including
ETM flow traces, ITM instrumentation traces and DWT data traces.
ITM/DWT can be captured from Serial Wire Output (SWO) as well.
Includes 256-MByte of trace RAM.
Bandwidth of 400 MBit/s per physical trace pin.
Trace Streaming up to 140 MByte/s.
Concurrent debugging of two or more Cortex-M cores requires a
license for Multicore Debugging MicroTrace (LA-7960N).
Can not be upgraded to include support for other core architectures.
Extend your MicroTrace with a Mixed-Signal Probe (LA-2500),
to record and correlated digital and analog signals.
Technical Information
Technical Data

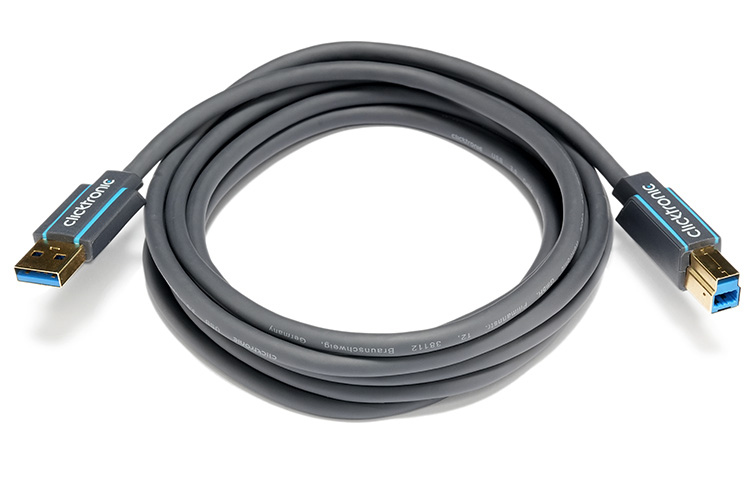

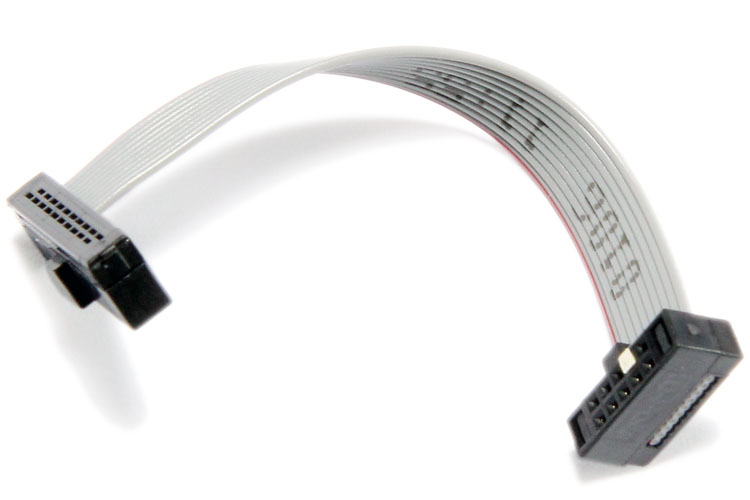

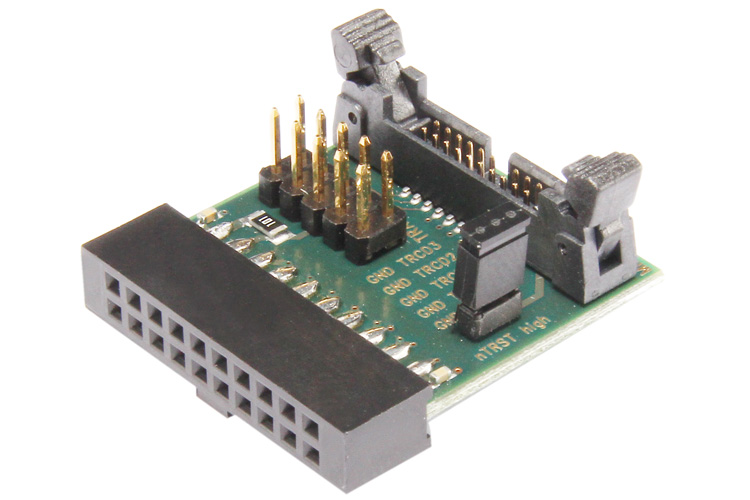

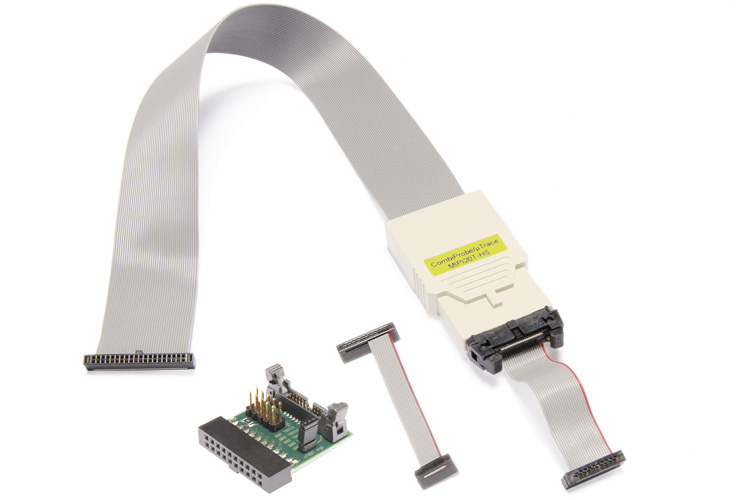

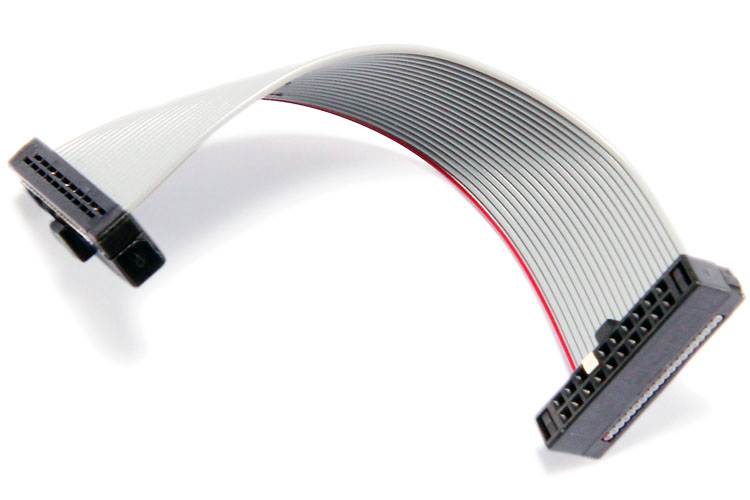

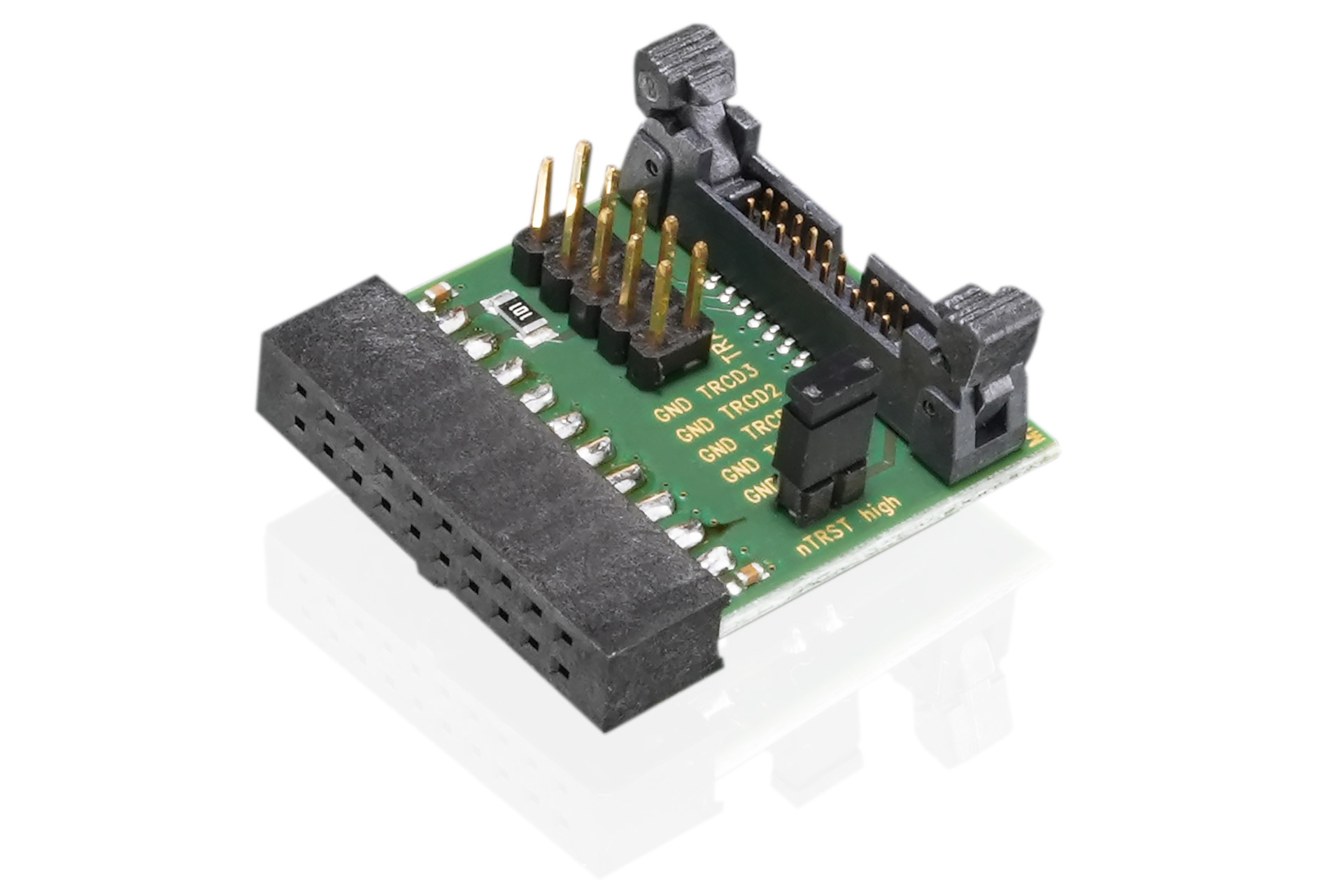

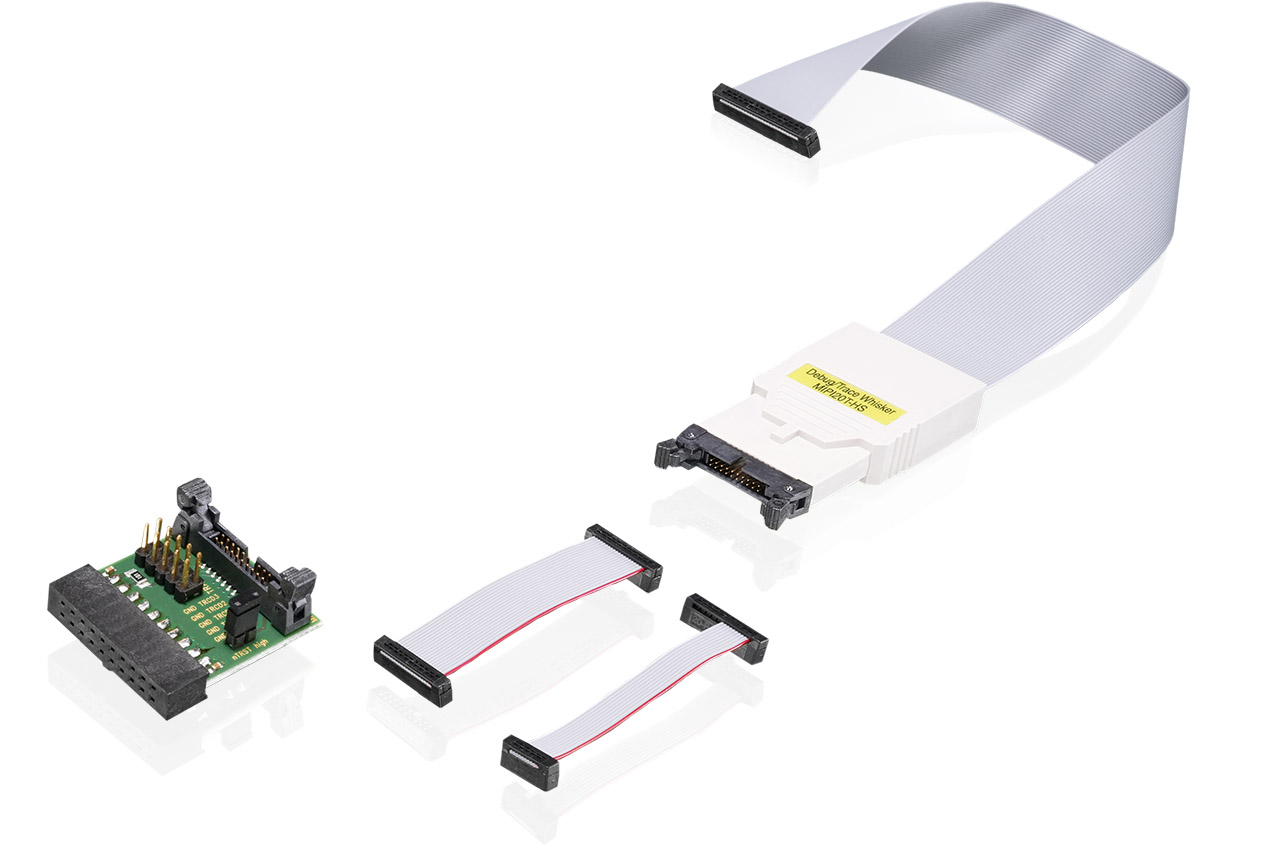

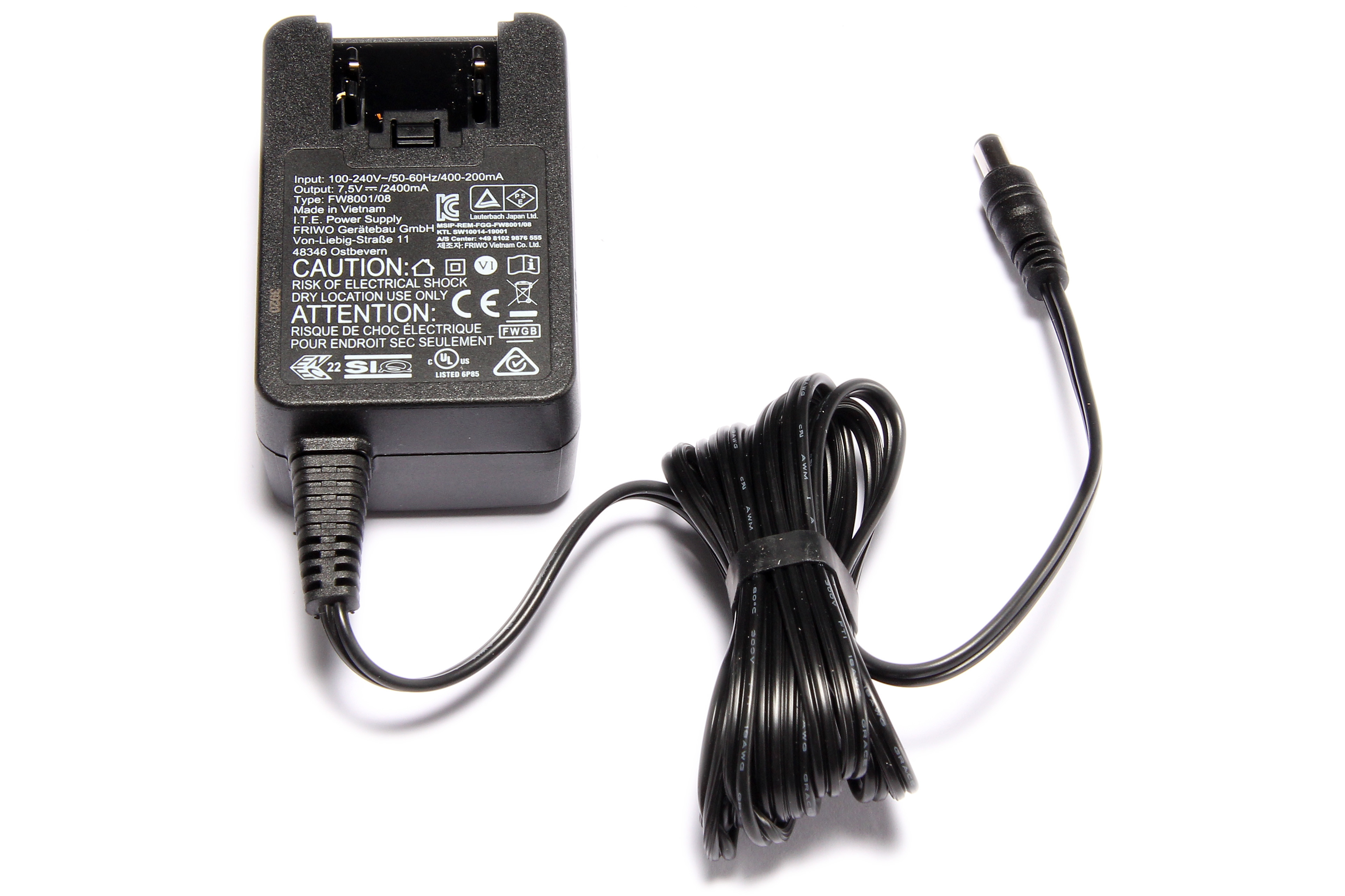

INCLUDED PRODUCTS:
Extend the MicroTrace for Cortex-M (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
