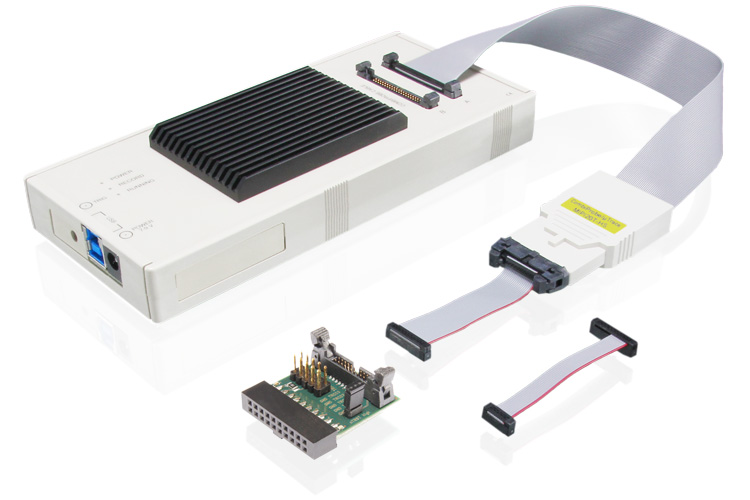

MicroTrace for RISC-V 32-Bit (PACK)
MicroTrace for RISC-V 32-Bit (PACK)
All-In-One Debug and Trace Solution for 32-bit RISC-V cores (RV32).
Supports 5-pin standard JTAG, cJTAG and Serial Wire Debug Port.
Supports onchip-trace and 4-bit parallel offchip-trace of RV32 cores
(if supported by the core as well).
Includes 256-MByte of trace RAM.
Bandwidth of 400 MBit/s per physical trace pin.
Trace Streaming up to 140 MByte/s.
Concurrent debugging of two or more RV32 cores requires a
license for Multicore Debugging MicroTrace (LA-7960N).
Can not be upgraded to include support for other core architectures.
Extend your MicroTrace with a Mixed-Signal Probe (LA-2500),
to record and correlated digital and analog signals.
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the MicroTrace for RISC-V 32-Bit (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
