Conv. Intel MIPI60-Cv2 to ARM MIPI34
OVERVIEW

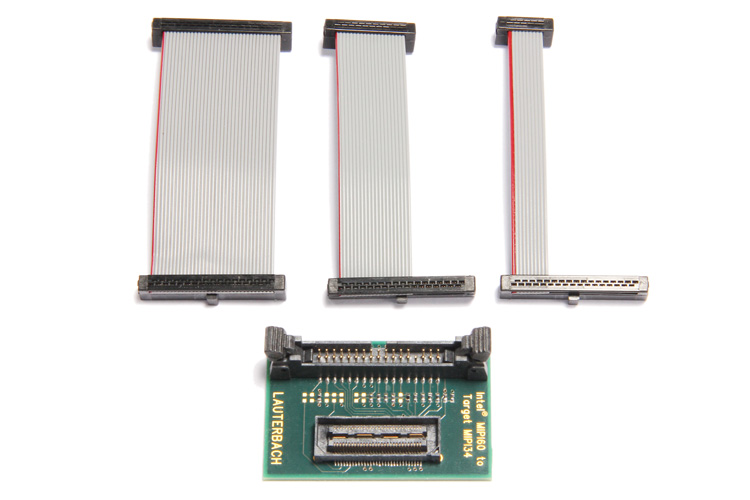

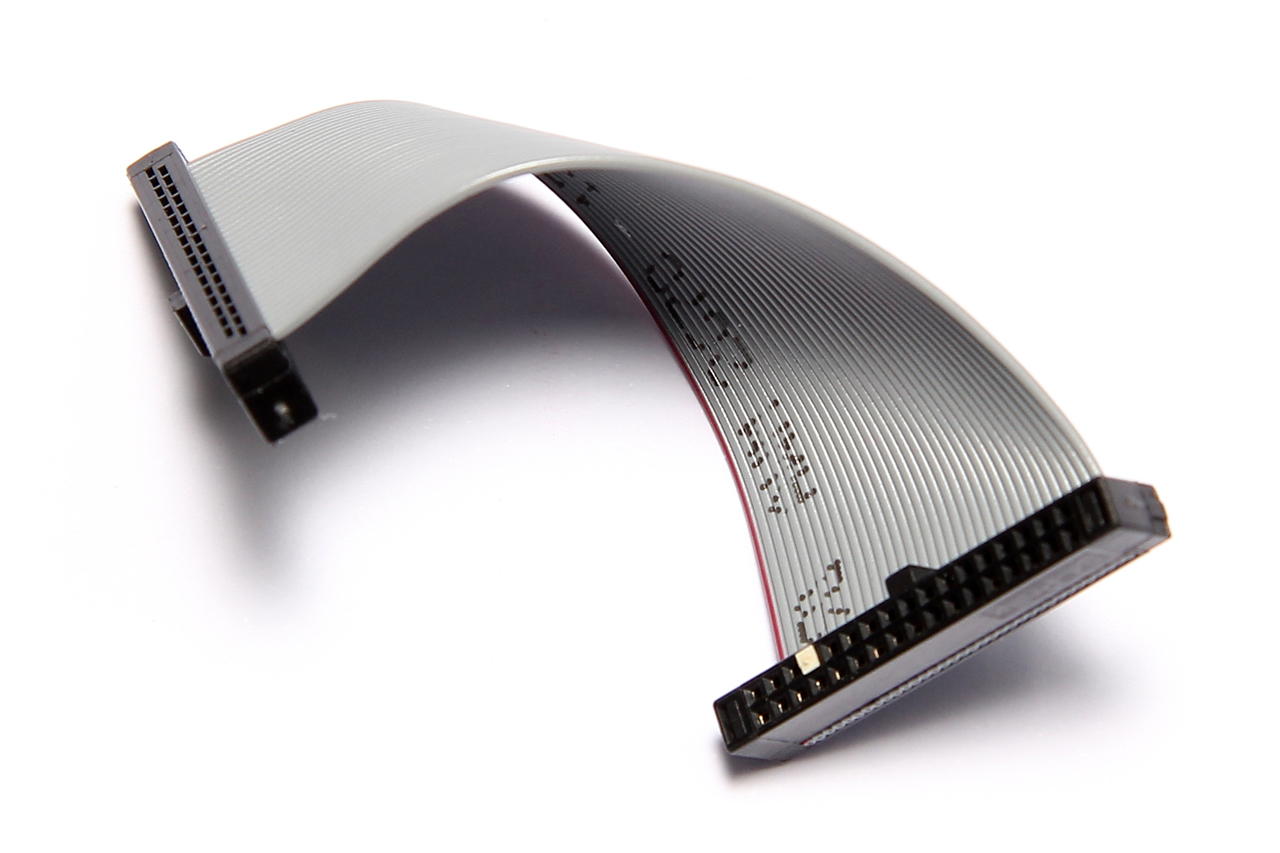

Conv. Intel MIPI60-Cv2 to ARM MIPI34
Product number:
LA-2727
Converter from Intel MIPI60-Cv2 to MIPI34 pin-out on target
Converts termination scheme Intel
(50 Ohm parallel termination at receiver)
to termination scheme ARM
(50 Ohm series termination at sender)
Support for JTAG/SWD
Maps Intel specific debug signals to MIPI34 pins.
Default mapping:
Intel PREQ ->
DBGREQ (pin 18 on MIPI34)
Intel PRDY ->
DBGACK (pin 20 on MIPI34)
Intel HOOK6 (PMODE) ->
RTCK (pin 12 on MIPI34)
Intel HOOK0 (PowerGood) ->
BCE (pin 14 on MIPI34)
Intel HOOK7 (ResetOut) ->
RESET (pin 10 on MIPI34)
TVREF (trace reference voltage) ==
DVREF (debug reference voltage)
For other possible options,
please contact Lauterbach.
