C6000 调试器和跟踪
独立的 C6000 DSP 内核和作为复杂Arm SoC 的一部分
Benefit from Lauterbach’s leading-edge development tools to analyze any design, from a stand-alone single- or multi-core DSP to a complex SoC integrating Arm CPUs, C7000, PRU, ARP32 with C6x DSP cores. C6000 DSP cores are a popular choice for audio and video processing as well as radar data processing in automotive applications. Using our TRACE32® tools you can debug and control any C6000 core (along with all of the other cores) in your SoC via a single JTAG debug interface, all at the same time. TRACE32® tools support on-Chip and parallel/serial real-time off-chip tracing via Arm’s CoreSight IP as well as TI direct trace.
支持的分区架构
C6x
最高的性能和最丰富的功能集

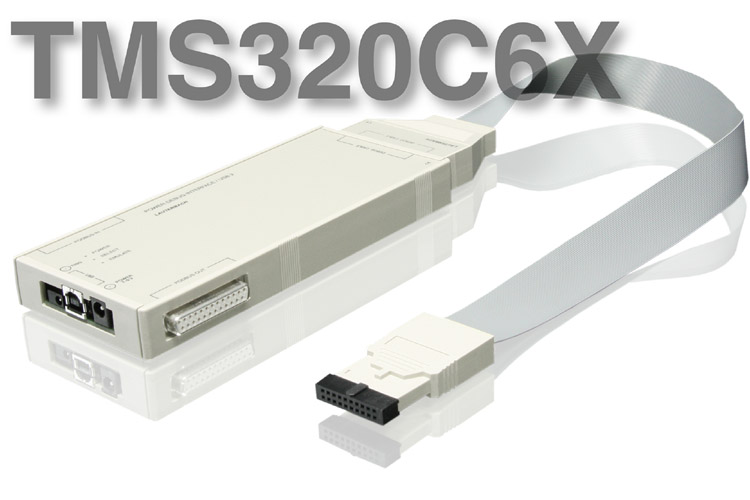

Explore and utilize all the powerful and well-known features of your C6000 cores with Lauterbach debug modules at the highest performance in the industry: full on-chip breakpoint support; run-time memory access; flash programming and benchmark counters. And of course, everything is scriptable, enabling you to repeat the same test sequence over and over.
进一步了解我们的调试系统捕捉核心行动

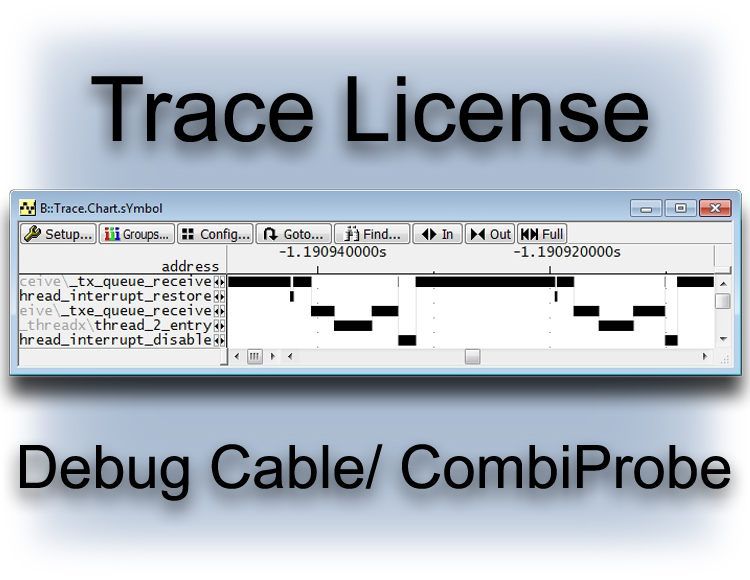

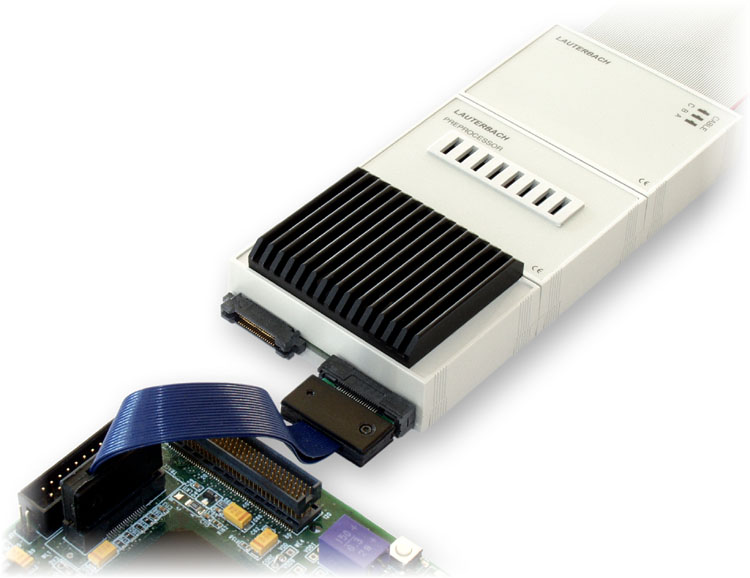

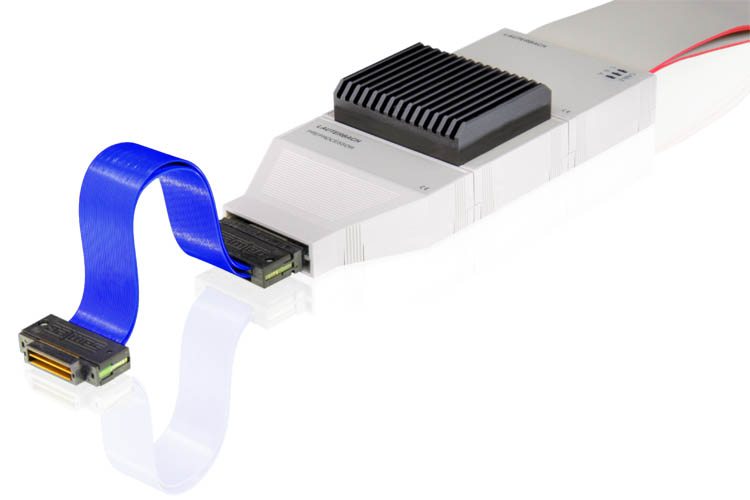

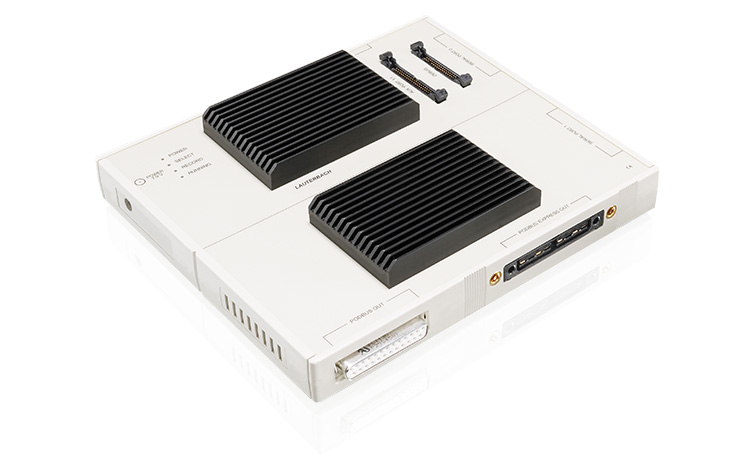

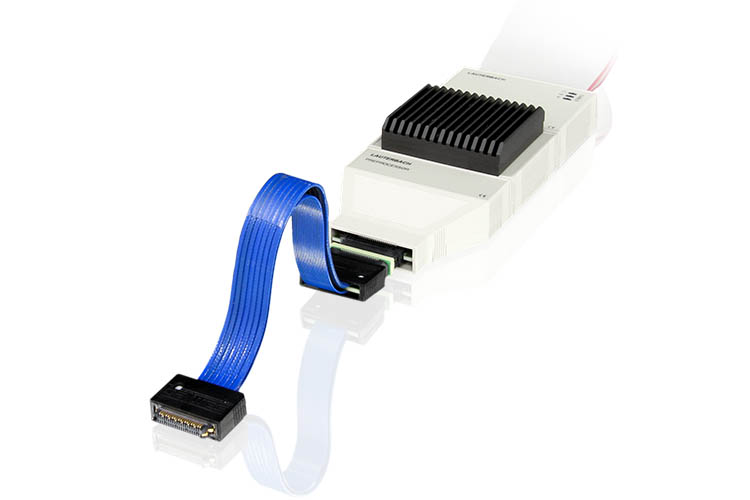

Stop mode debugging can be a powerful tool but tracing is even better. Our trace solutions for C6000 support both on-chip trace and the much more powerful off-chip Trace, which can save the trace data inside the target memory or emit it to one of our PowerTrace tools. For extended tracing, off-chip trace provides large volumes of trace data and the capability of recording for minutes, hours, or days using trace streaming.
C6000 支持的第三方工具
TRACE32 支持的所有架构 都具有以下功能。如果此处未列出您的设备或工具，请与我们联系；支持通常已经在路上。
Host 操作系统
我们的调试软件可在所有主流操作系统上运行。
Flash 设备
我们支持对各种闪存设备进行编程。NOR、NAND、SPI、QSPI、EMMC 等。
第三方集成
通过集成，您可以轻松地将TRACE32 与其他工具结合使用。
