Preproc. for ARM-ETM/AUTOFOCUS II 600 Flex
OVERVIEW

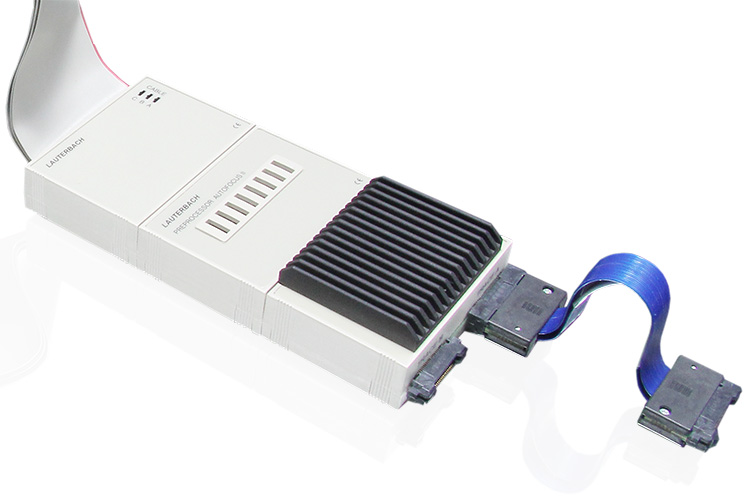

Preproc. for ARM-ETM/AUTOFOCUS II 600 Flex
Product number:
LA-7992
Out of production
Parallel preprocessor for ARM/Cortex
Embedded Trace Macrocell (ETM),
Program Trace Macrocell (PTM)
Connector cable and software,
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Support all ETM modes, with 2 MICTOR connectors,
Voltage: 1.2 to 3.3V - else contact support
Traceport: 1-32bit
Bandwidth: 9.6 Gbps (300MHz clock speed, DDR)
Connector: 2x38 pin mictor connector
Requires PowerTrace II / III, PowerTrace PX
or PowerTrace/Ethernet Version 6 or higher
This product is discontinued and not available for purchase.
Superseded by LA-3308 Trace for Arm-ETM via AUTOFOCUS II (PACK)
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Preproc. for ARM-ETM/AUTOFOCUS II 600 Flex
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3907A Trace Lic. for Intel® Processor Trace AFII
- LA-3920A Trace License for STRED AUTOFOCUS II
- LA-2767A Trace License for RISC-V (AF-II/PTS)
- LA-3917A Trace License for Nios® II for AUTOFOCUS II
- LA-2754A Trace License for Xtensa® (AF-II/PTS)
- LA-3904A Trace License for TEAKLITE-III AUTOFOCUS II
- LA-3902A Trace License for SH2A, SH4, SH4A in AF II
- LA-7999A Trace License for StarCore AUTOFOCUS II
- LA-7979A Trace License for C6000 (AF-II/PTS)
- LA-7977A Trace License for Ceva-X (AF-II/PTS)
- LA-3905A Trace License for RAM Trace Port AUTOFOCUS II
- LA-3901A Trace License for MicroBlaze AUTOFOCUS II
- LA-3914A Trace License for ARC® (AF-II/PTS)
Available Converters
- LA-3814 ETMv3 Conv. Mictor-38/MIPI-34 to MIPI-60
- LA-3816 Converter 2x Mictor-38 to MIPI-60
- LA-3812 Conv. OMAP4 2xMic38/IDC20A/MIPI34 to MIPI60
- LA-3863 Converter IDC20A to ALTERA-10/RISCV-10
- LA-3818 Converter 2xMictor38/IDC20A to MIPI-60
- LA-3768 ETMv1 Conv. Mictor-38, 2x MIPI-34 to MIPI-60
- LA-3809 Converter Mictor-38/IDC20A to MIPI-20T
- LA-3769 Conv. Mictor-38, 2x MIPI-34 to MIPI-60
