Samtec Probe for PowerIntegrator DIFFCLOCK
OVERVIEW

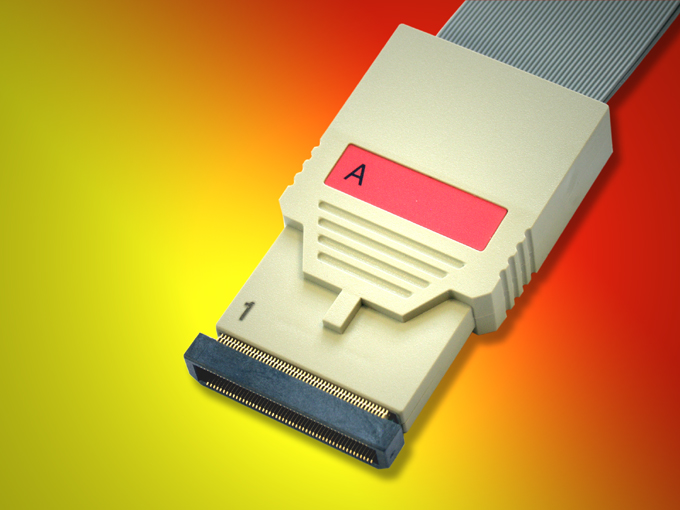

Samtec Probe for PowerIntegrator DIFFCLOCK
Product number:
LA-7958
Probe to record digital signals from a Samtec connector
with differential clock signal:
33 Channels (32 Data, 1 pair of differential clock),
0..5 V Input, 4 pF, 50 kOhm.
The probe requires one of the following modules.
PowerIntegrator (LA-7940),
PowerIntegrator II (LA-3940/3941/3942).
