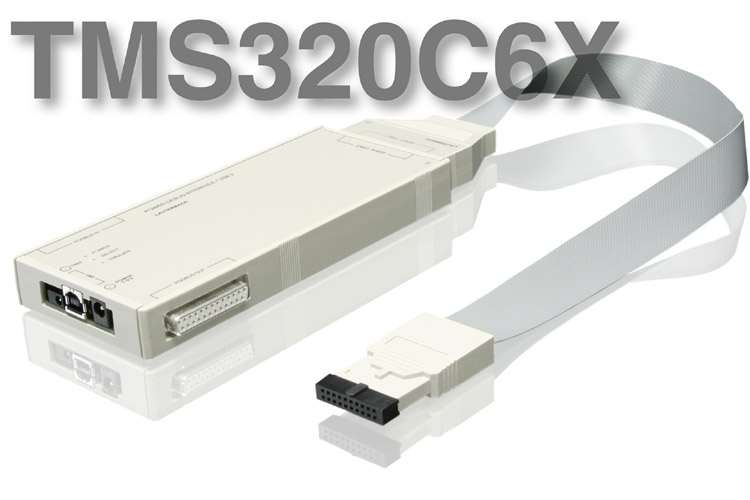

JTAG Debugger for C6000 DSP (ICD)
OVERVIEW
JTAG Debugger for C6000 DSP (ICD)
Product number:
LA-7838
Out of production
supports C6xxx (0.4 V - 5 V)
includes software for Windows, Linux and MacOSX
requires Power Debug Module
IDC20A debug cable
Requires LA-7748 if 14 pin TI target adapter is
used
This product is discontinued and not available for purchase.
Superseded by LA-3226 Debugger for C6000 IDC20A (PACK)
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for C6000 DSP (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Debugger for Armv8/Armv9-A/R Add.
- LA-7744A JTAG Debugger License for ARM10 Add.
- LA-7960X License for Multicore Debugging
- LA-7746A JTAG Debugger License for Arm7 Add.
- LA-7979X Trace License for C6000 (Cable)
- LA-7844A Debugger for Cortex-M (Armv6/7/8-M) Add.
- LA-7742A JTAG Debugger License for Arm9 Add.
- LA-7847A Debug License for C2000 Add.
- LA-7843A Debugger for Armv7-A/R Add.
- LA-7765A JTAG Debugger License for Arm11 Add.
