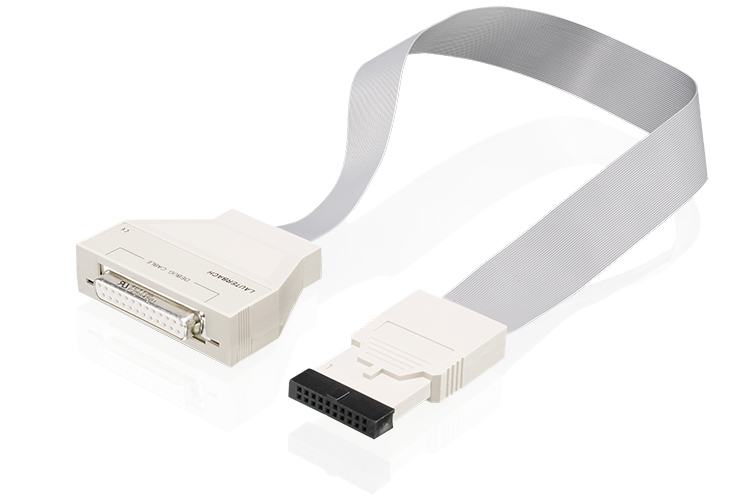

Debugger for SH2/SH3/SH4 20-Pin (ICD)
OVERVIEW
Debugger for SH2/SH3/SH4 20-Pin (ICD)
Product number:
LA-7817
supports a lot of SH2, SH3 and SH4
derivatives from Renesas (0.4 - 5V)
for IDC20A JTAG interface
ASEBRK pin in only supported in conjunction with
LA-7818 Converter JTAG 20 to H-UDI 14,
LA-7822 Converter JTAG 20 to Hirose 36
or LA-7823 Converter JTAG 20 to Mictor 38
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
requires Power Debug Module
IDC20A debug cable
Product Details
Technical Information
Technical Data
Add-ons
Extend the Debugger for SH2/SH3/SH4 20-Pin (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
