NEXUS Debug/Trace for Qorivva MPC5xxx/SPC5xxx
NEXUS Debug/Trace for Qorivva MPC5xxx/SPC5xxx

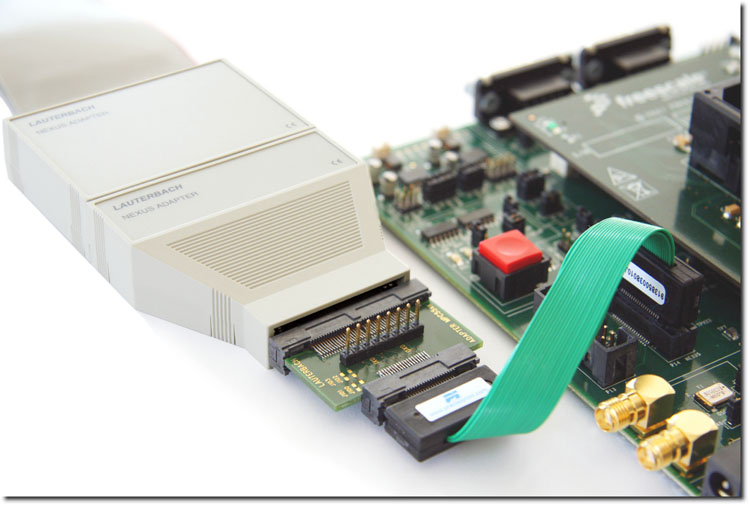

Parallel NEXUS Adapter with AutoFocus technology
for Qorivva MPC5xxx/SPC5xxx and PX series.
Includes debugger for eTPU and GTM.
Concurrent debugging of multiple e200 cores on
multicore processors requires a
License for Multicore Debugging (LA-7960X)
(not necessary for lockstep mode).
Voltage range:
1..5 V
TRACE port:
2..16 MDO (data) lines
1..2 MSEO (control) lines
Data Bandwidth:
up to 200 MBit/s
76-pin mictor connector requires one of the
following converters:
LA-7631 for Mictor 38 on target
LA-7632 for Glenair 51 on target
LA-7636 for SAMTEC 50 on target
LA-7637 for SAMTEC 20 on target
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Requires PowerTrace hardware.
Usage with PowerTrace III requires
TRACE32 software DVD 2021/09 or newer.
Please contact Lauterbach if the serial number of
your PowerTrace is lower than E03010003982.
Technical Information
Technical Data
Extend the NEXUS Debug/Trace for Qorivva MPC5xxx/SPC5xxx
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
