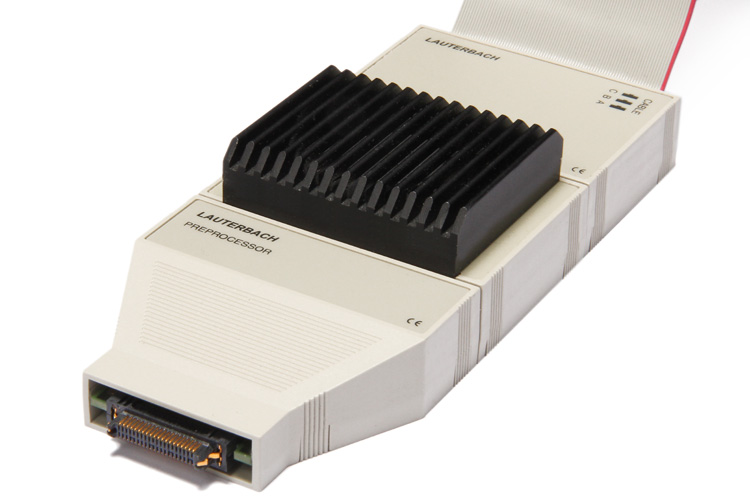

Aurora NEXUS Preprocessor for Qorivva MPC57xx/SPC5
(high-speed serial trace port)
- supports reference clock output up to 3125MHz
POWER TRACE II / III: full support
Supported speeds per lane:
4 lanes @ 4.25Gbps
3 lanes @ 6.0Gbps
2 lanes @ 6.25Gbps
1 lane @ 6.25Gbps
POWER TRACE ETHERNET or POWER TRACE PX limited support
Supported speeds per lane:
4 lanes @ 1.25 GBPS
2 lanes @ 2.5 GBPS
- POWER TRACE ETHERNET module must have serial number
E04xxxxxxxx or higher
Required converter:
- Samtec34 on target requires LA-3871:
Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec34
including Samtec 34-pin flex extension cable
- Samtec22 on target requires LA-3872:
Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec22
including Samtec 22-pin flex extension cable
voltage range 0.15V to 1.25V
Technical Information
Technical Data
Extend the Preproc. Qorivva MPC57xx/SPC5 HSTP HF-Flex
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
