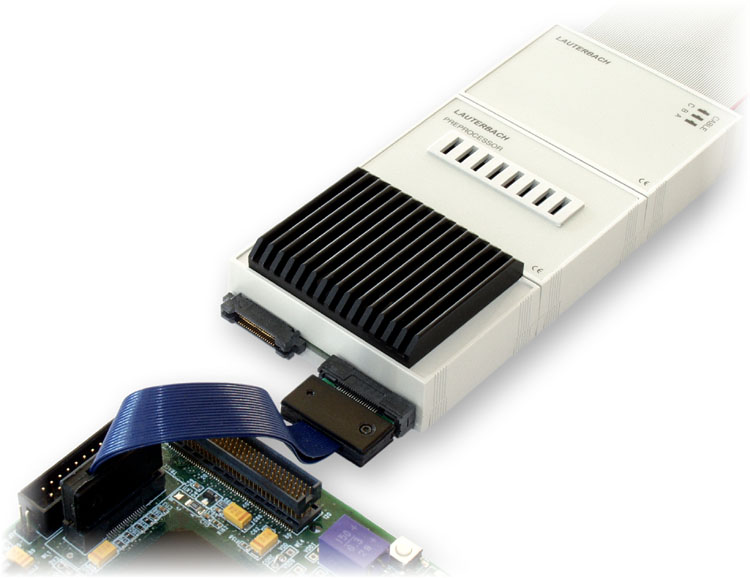

Preproc. for C6000 DSP AF II Mictor38 Flex
OVERVIEW
Preproc. for C6000 DSP AF II Mictor38 Flex
Product number:
LA-3903
Out of production
Preprocessor for Real-Time Trace of C6x core
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Voltage: 1.2 to 3.3V - else contact support
Traceport: 1-32bit
Bandwidth: 9.6 Gbps (300MHz clock speed, DDR)
Connector: 2x38 pin mictor connector
Requires PowerTrace Version 6 or higher
or PowerTrace II / III
This product is discontinued and not available for purchase.
Superseded by LA-3330 Trace for C6000 via AUTOFOCUS II (PACK)
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Preproc. for C6000 DSP AF II Mictor38 Flex
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
