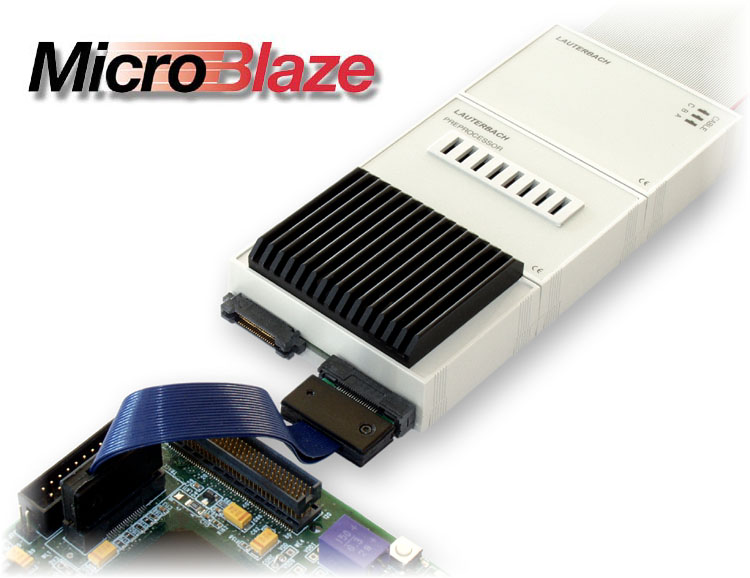

Preproc. for MICROBLAZE AUTOFOCUS II Flex
Product number:
LA-3901
Preprocessor for Real-Time Trace of AMD MicroBlaze™.
Requires Xilinx Vivado 2018.3 or later or Vivado 2018.2
with special patch from Xilinx (see
https://www.xilinx.com/support/answers/71422.html#).
250 MHz clock speed
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Supports 1.2 to 3.3V - else contact support
Requires PowerTrace Version 6 or higher
or PowerTrace II / III
voltage range 1.2V to 3.3V
HS-Code / Tariff-Code: 90318080
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Preproc. for MICROBLAZE AUTOFOCUS II Flex
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2752A STRED Trace License (trace tool)
- LA-3734A RH850 Trace License (trace tool)
- LA-3904A TeakLite Trace License (trace tool)
- LA-7973A SuperH (SH) Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-7979A C6000 Trace License (trace tool)
- LA-7999A StarCore Trace License (trace tool)
