Converter Mictor-38/IDC20A to MIPI-34
OVERVIEW
Converter Mictor-38/IDC20A to MIPI-34
Product number:
LA-3842
Not recommended for new projects

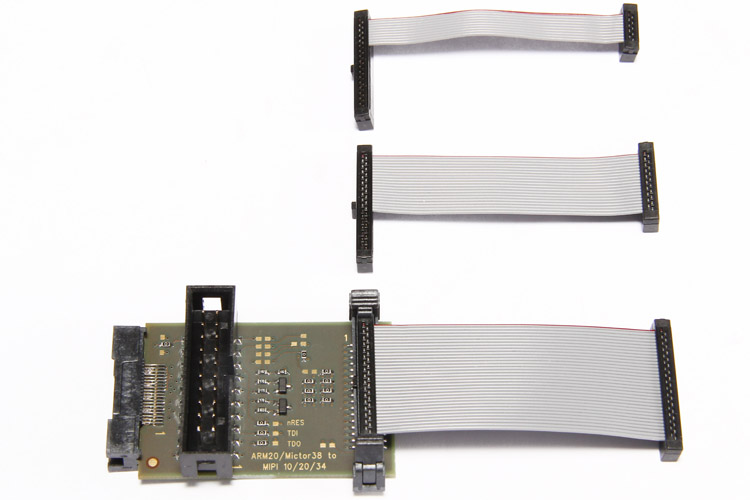

Converter to connect an AutoFocus II Preprocessor with
MICTOR-38 and an IDC20A Debug Cable to MIPI-10/-20/-34.
Enables the AutoFocus II Preprocessor to receive trace data
from the 4-bit wide trace port of a MIPI-34 target connector.
The converter is configured for MIPI-34 via 0 Ohm resistors.
By soldering the resistors differently MIPI-20T can be supported as well.
You can get the same converter pre-configured for MIPI-20T by ordering
LA-3809 Converter Mictor-38/IDC20A to MIPI-20T.
We recommend using this product only for existing projects. For new projects, please consider one of the available superseding products. If no suitable product is available, feel free to contact us to discuss alternative solutions.
