JTAG Debugger for MPC85XX/QorIQ e500 (ICD)
OVERVIEW
JTAG Debugger for MPC85XX/QorIQ e500 (ICD)
Product number:
LA-3796
Out of production
This product is still available under the new part number, LA-3296
(despite the "out of production" notice).

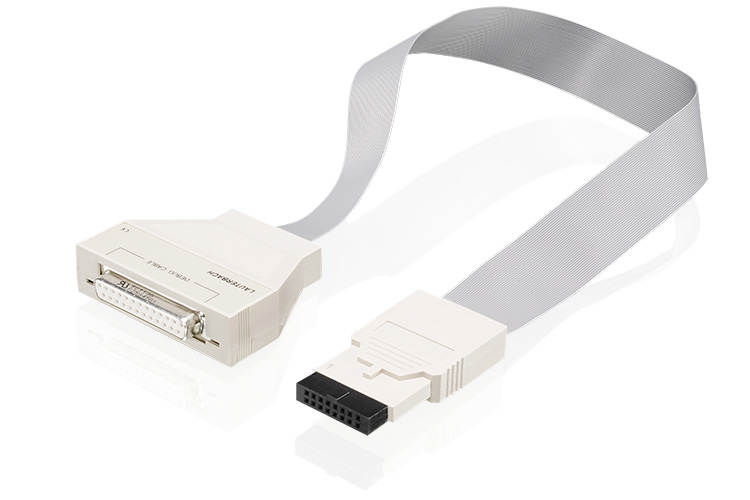

16-pin debug probe (1.8V to 5.0V)
supporting PowerQUICC III (MPC85XX) and
QorIQ 32-bit with e500 core
(P10XX, P2010, P2020, BSC9xxx)
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Requires a PowerDebug base module.
Concurrent debugging of two or more cores in multicore chip
requires a license for multicore debugging (LA-7960X)
This product is discontinued and not available for purchase.
LA-3296 PPCCOP Dbg.Probe with MPC85xx/QorIQ-e500 Lic.
HS-Code / Tariff-Code: 85480090
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for MPC85XX/QorIQ e500 (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3735X MPC86xx Debug License Ext. (tool locked)
- LA-3794X QorIQ 64-Bit Debug License Ext. (tool locked)
- LA-3795X QorIQ 32-Bit Debug License Ext. (tool locked)
- LA-7719X MPC74xx Debug License Ext. (tool locked)
- LA-7721X PPC603 Debug License Ext. (tool locked)
- LA-7729X MPC82xx/MPC83xx Debug Lic. Ext. (tool locked)
- LA-7734X MPC51xx/MPC52xx Debug Lic. Ext. (tool locked)
- LA-7960X License for Multicore Debugging (tool locked)
