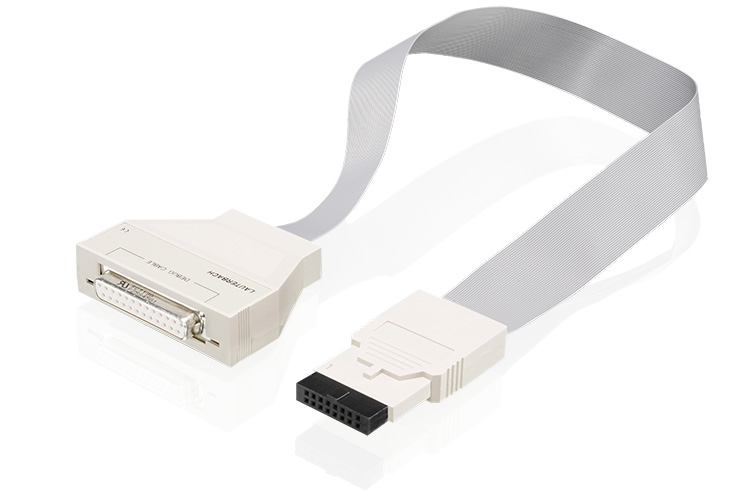

JTAG Debugger for MPC86xx (ICD)
OVERVIEW
JTAG Debugger for MPC86xx (ICD)
Product number:
LA-3735
supports (1.8V - 5.0V) MPC8641, MPC8641D and MPC8610
Concurrent debugging of both cores in
dual-core chip requires a
License for Multicore Debugging (LA-7960X)
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
requires Power Debug Module
debug cable with 16 pin connector
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for MPC86xx (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-7721X JTAG Debugger Extension for PPC603(ICD)
- LA-7719X JTAG Debugger Extension for MPC74xx (ICD)
- LA-7734X JTAG Debugger Extension for MPC5200/MPC512x
- LA-7960X License for Multicore Debugging
- LA-3794X JTAG Debugger Ext. QorIQ PowerPC 64-Bit
- LA-3796X JTAG Debugger Ext. for MPC85XX/QorIQ e500
- LA-3795X JTAG Debugger Ext. for QorIQ PowerPC 32-Bit
- LA-7729X JTAG Debugger Extension for MPC82xx/MPC83xx
