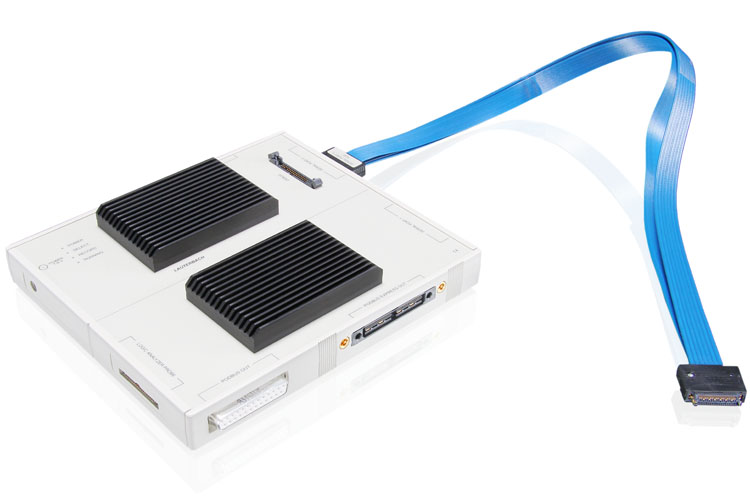

PowerTrace Serial 4 GigaByte MPC57xx/SPC5
OVERVIEW
PowerTrace Serial 4 GigaByte MPC57xx/SPC5
Product number:
LA-3545
Out of production
Serial Trace Port Controller with 4 Giga Byte Trace Memory
for MPC57xx/SPC5
Required converter:
- Samtec34 on target requires LA-3871:
Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec34
including Samtec 34-pin flex extension cable
- Samtec22 on target requires LA-3872:
Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec22
including Samtec 22-pin flex extension cable
requires PowerDebug II Ethernet or PowerDebug PRO
Host requirements:
USB 3.0 or 1000 MBit Ethernet interface,
4.0 GigaByte RAM
voltage range 0.15V to 1.25V
This product is discontinued and not available for purchase.
Superseded by LA-3302 Trace for MPC57xx/SPC5 via PTS 4GB (PACK)
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the PowerTrace Serial 4 GigaByte MPC57xx/SPC5
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
