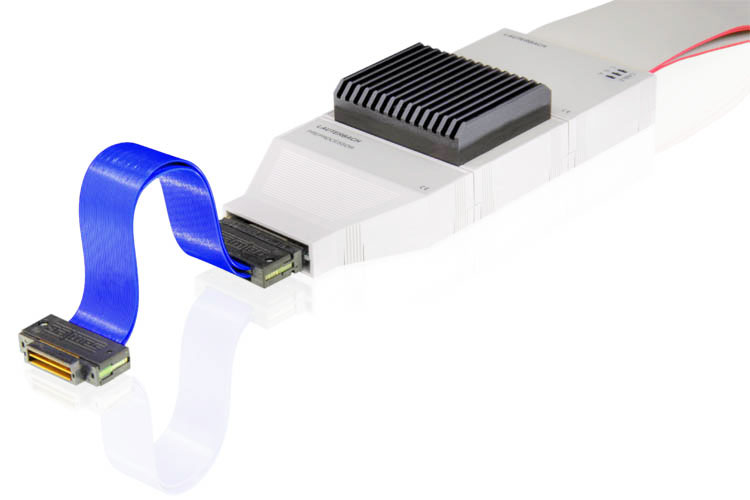

Trace for C7000 via AutoFocus II MIPI (PACK)
OVERVIEW
Trace for C7000 via AutoFocus II MIPI (PACK)
Product number:
LA-3345
Parallel preprocessor for tracing C7000 DSPs.
Includes connector cable and software.
Voltage: 1.2 to 3.3V (contact support otherwise)
Traceport: 1-32 bit
Bandwidth: up to 600+ Mbit/s per trace signal
Connector: 60 pin Samtec connector (MIPI)
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology
Requires a PowerTrace module:
PowerTrace PX / II / III (or PowerTrace Ethernet vers 6).
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Trace for C7000 via AutoFocus II MIPI (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
