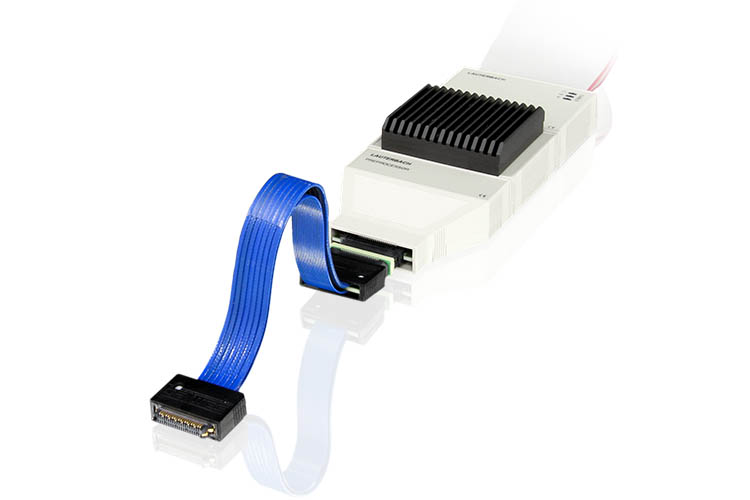

Trace for C6000 via Serial Prepro. (PACK)
OVERVIEW
Trace for C6000 via Serial Prepro. (PACK)
Product number:
LA-3332

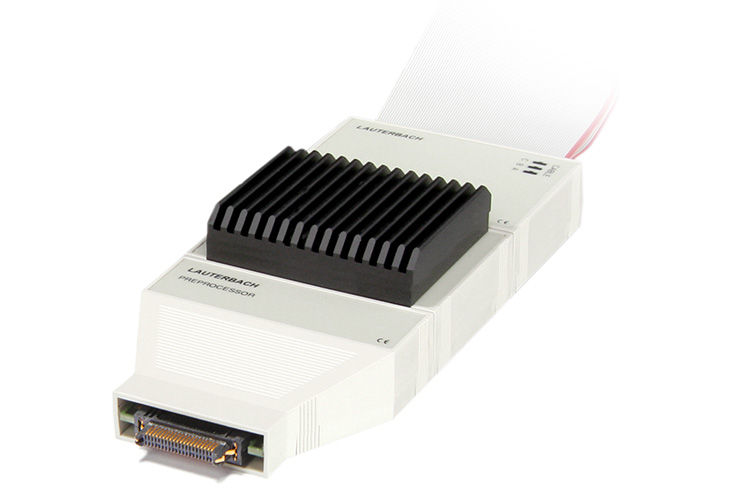

Serial preprocessor for tracing C6000 cores via AURORA

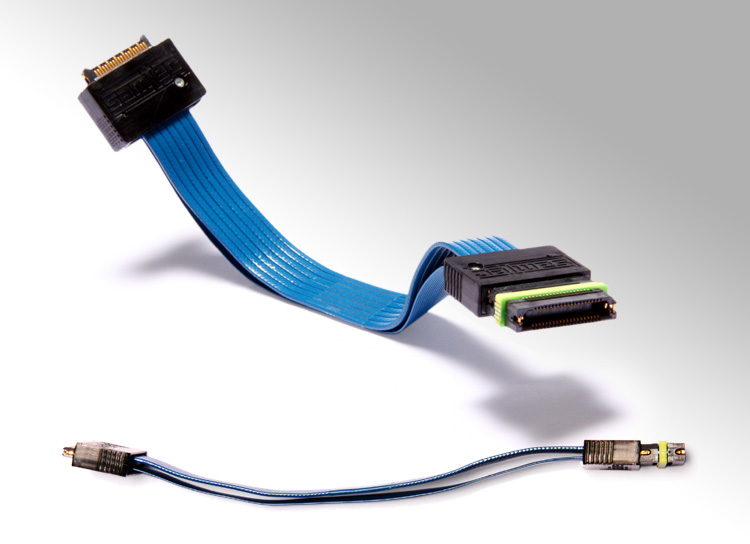

Includes Samtec 40-pin flex extension and software.
Records up to 3 lanes with 6.25 Gbit/s per lane
or 4 lane with 5.00 Gbit/s per lane.
Voltage range: 0.15 to 1.25 differential Voltage.
Requires PowerTrace II or PowerTrace III.
HS-Code / Tariff-Code: 90318080
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Trace for C6000 via Serial Prepro. (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2754A Xtensa® Trace License (trace tool)
- LA-2767A RISC-V Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-3734A RH850 Trace License (trace tool)
- LA-3799A TriCore™ Trace License (trace tool)
- LA-7967A QorIQ PowerPC Trace License (trace tool)
- LA-7968A MPC5xxx Trace License (trace tool)
- LA-7970A Arm® Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
