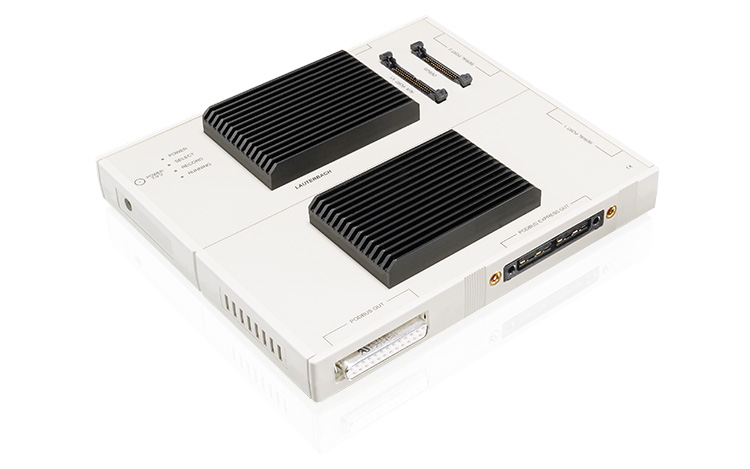

Trace for RISC-V via PT-Serial 8GB (PACK)
OVERVIEW
Trace for RISC-V via PT-Serial 8GB (PACK)
Product number:
LA-3321
Trace recorder for serial high-speed ports
with 8 Gigabyte trace memory
for RISC-V
Tested for SiFive Nexus IP.
Tested for Tessent Embedded Analytics (aka. UltraSoC) encoder IP
Other IP on request.
Records up to 8 lanes with 12.5 Gbit/s per lane (more with opt. Prepro.)
Voltage range: 0.15 to 1.25 differential voltage.
Requires accessory kit LA-3521 or LA-3522.
Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II.
Requires PC with USB 3 or Gigabit Ethernet,
4 GB RAM min, and 64-bit OS.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Trace for RISC-V via PT-Serial 8GB (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3734A Trace Support for RH850
- LA-3550X License for PCI Express
- LA-2754A Trace License for Xtensa® (AF-II/PTS)
- LA-3551X License for HSDP
- LA-7968A Trace License Qorivva MPC57xx and SPC57x/58x
- LA-7979A Trace License for C6000 (AF-II/PTS)
- LA-7967A Trace License for QorIQ PowerPC (PTS)
- LA-7977A Trace License for Ceva-X (AF-II/PTS)
- LA-2901A Trace License for VSPA (AF-II/PTS)
- LA-3914A Trace License for ARC® (AF-II/PTS)
- LA-3799A Trace License for TriCore Add
- LA-7970A Trace License for Arm (AF-II/PTS)
