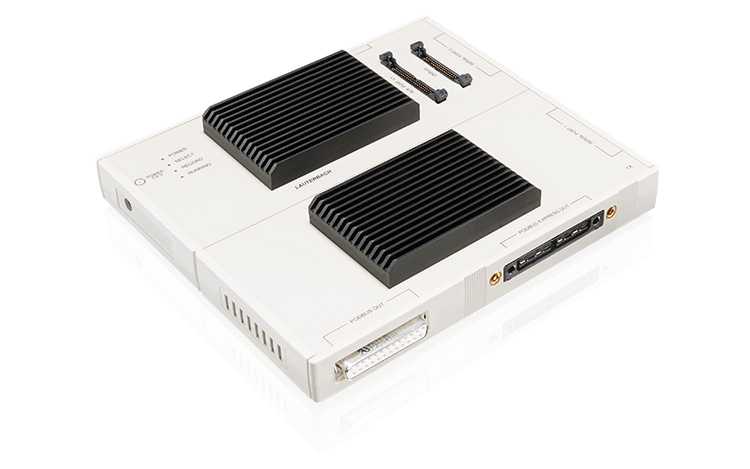

PowerTrace Serial 4GByte Hardware V2
OVERVIEW
PowerTrace Serial 4GByte Hardware V2
Product number:
LA-3121
Trace recorder for serial high-speed ports
with 4 Gigabyte trace memory
and support for optional Mixed-Signal Probe.
This TRACE32 product is a license carrier.
It requires a suitable, programmed TRACE32 A-license.
Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II.
Requires PC with USB 3 or Gigabit Ethernet,
4 GB RAM min, and 64-bit OS.
Voltage range: 0.15 to 1.25 differential Voltage.
Option Mixed-Signal Probe: LA-2500
Add-ons
Extend the PowerTrace Serial 4GByte Hardware V2
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3734A Trace Support for RH850
- LA-3550X License for PCI Express
- LA-2767A Trace License for RISC-V (AF-II/PTS)
- LA-2754A Trace License for Xtensa® (AF-II/PTS)
- LA-3551X License for HSDP
- LA-7968A Trace License Qorivva MPC57xx and SPC57x/58x
- LA-7979A Trace License for C6000 (AF-II/PTS)
- LA-7967A Trace License for QorIQ PowerPC (PTS)
- LA-7977A Trace License for Ceva-X (AF-II/PTS)
- LA-2901A Trace License for VSPA (AF-II/PTS)
- LA-3914A Trace License for ARC® (AF-II/PTS)
- LA-3799A Trace License for TriCore Add
- LA-7970A Trace License for Arm (AF-II/PTS)
